Panduit

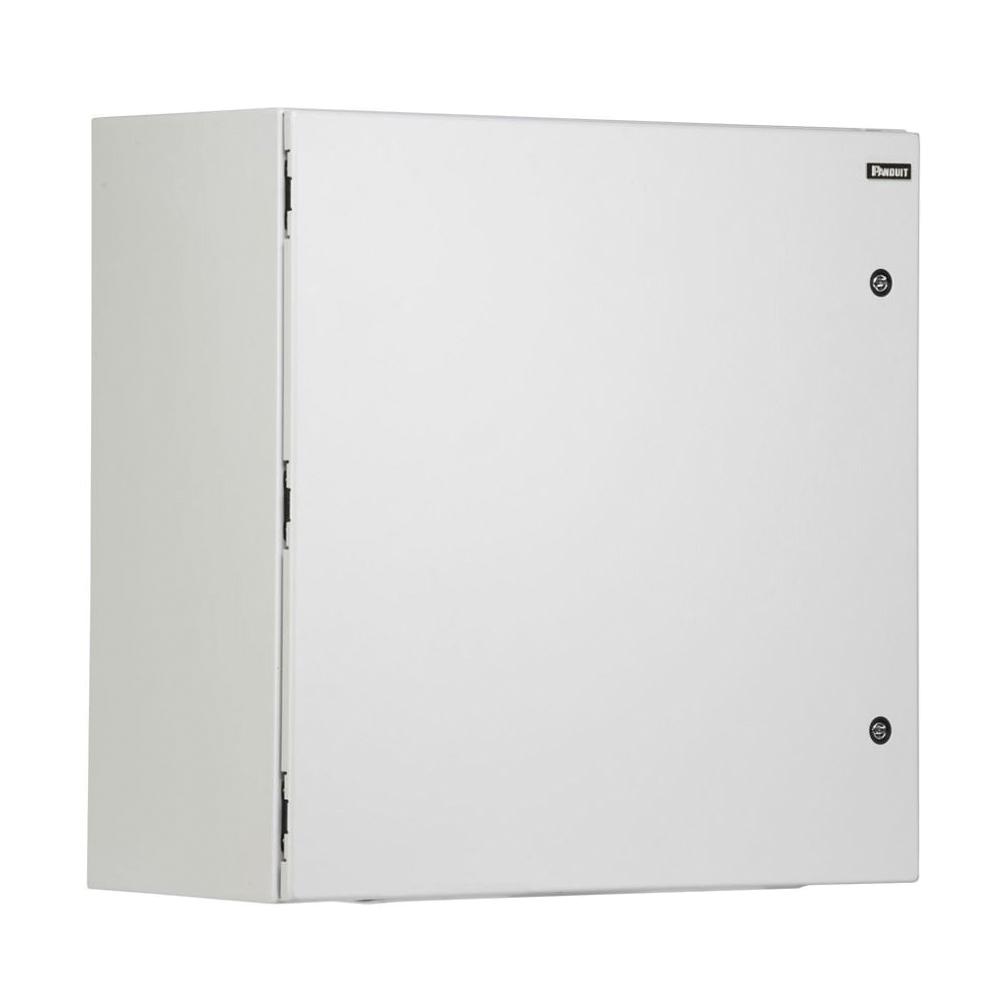

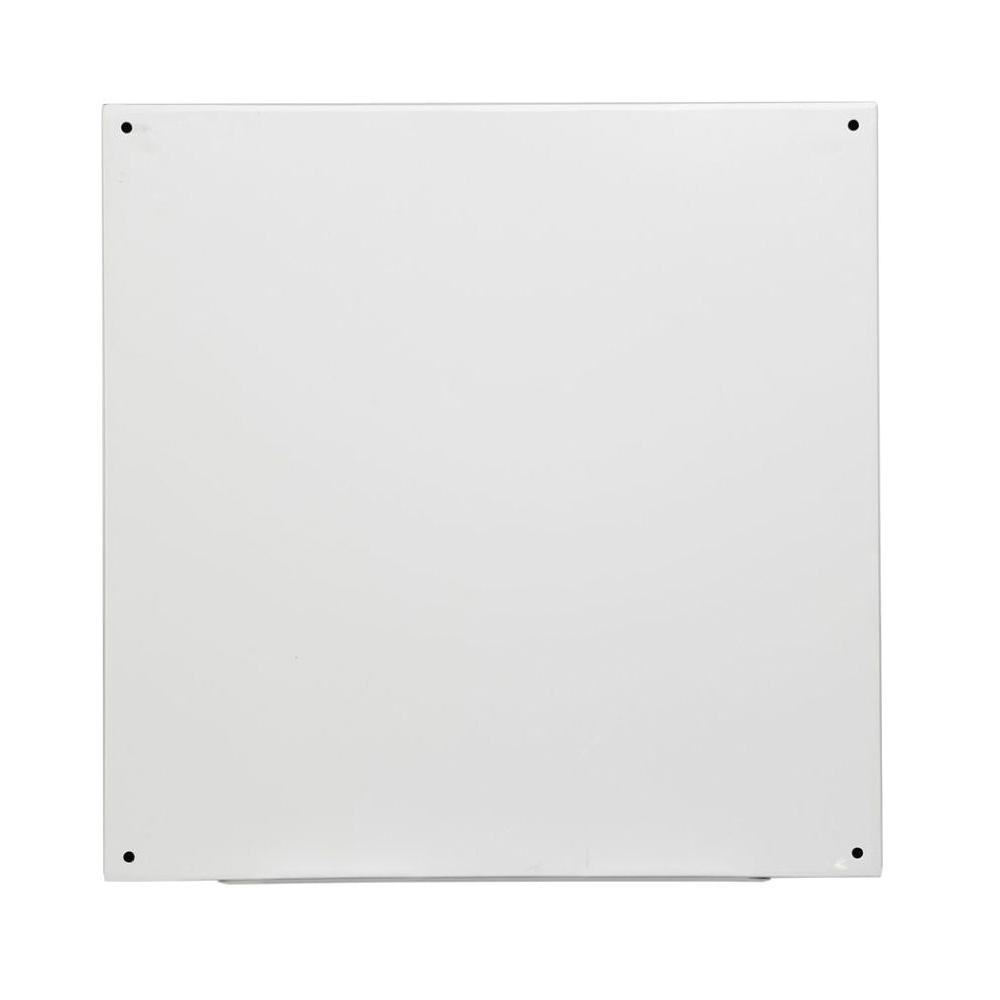

FTE24A1A1 PAN MILD STEEL WALL MOUNT SPLICE ENCLOSURE W/(5) FOSMF, (5) FOSMH1U & BEND RADIUS CONTROL ACCESSORIES, HIGH DENSITY (UP TO 288 FIBER CAPACITY)

Mouse over image to zoom, click to enlarge

  • FTE24A1A1 PAN MILD STEEL WALL MOUNT SPLICE ENCLOSURE W/(5) FOSMF, (5) FOSMH1U & BEND RADIUS CONTROL ACCESSORIES, HIGH DENSITY (UP TO 288 FIBER CAPACITY)
  • FTE24A1A1 PAN MILD STEEL WALL MOUNT SPLICE ENCLOSURE W/(5) FOSMF, (5) FOSMH1U & BEND RADIUS CONTROL ACCESSORIES, HIGH DENSITY (UP TO 288 FIBER CAPACITY)
  • FTE24A1A1 PAN MILD STEEL WALL MOUNT SPLICE ENCLOSURE W/(5) FOSMF, (5) FOSMH1U & BEND RADIUS CONTROL ACCESSORIES, HIGH DENSITY (UP TO 288 FIBER CAPACITY)

Description: Panduit® Fiber Termination Enclosure, Pre-Configured High Density, Series: 288, Specifications: Wall Mount, NEMA 4X/4/12/IP66, Mild Steel, 24 in W x 12 in D x 24 in H

Manufacturer PN: FTE24A1A1

UPC:  61305676210

Kendall Electric Inc PN: 4079073

Invoice Description:

FTE24A1A1 PAN MILD STEEL WALL MOUNT SPLICE ENCLOSURE W/(5) FOSMF, (5) FOSMH1U & BEND RADIUS CONTROL ACCESSORIES, HIGH DENSITY (UP TO 288 FIBER CAPACITY)


SPEC SHEET

▸ See All in Fiber Optic Termination & Splicing Acce.


How Can We Make This Page Better?

Panduit® FTE24A1A1 288 Pre-Configured High Density Fiber Termination Enclosure, Wall Mount, NEMA 4X/4/12/IP66, Mild Steel

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The fiber splice enclosure shall house organize, manage and protect fiber optic cables and splices. The enclosure meets UL 508A, as well as NEMA type 4/12/4X and IP66 rating. The enclosure shall be validated to accommodate a maximum of 360 fibers, using (15) 24 fiber fusion splice modules (FOSM's). To be included are fiber splice modules with approved mounting brackets, slack managers to accommodate up to three meters of slack and grounding kit.
Panduit® Fiber Termination Enclosure, Pre-Configured High Density, Series: 288, Specifications: Wall Mount, NEMA 4X/4/12/IP66, Mild Steel, 24 in W x 12 in D x 24 in H

Specifications

 Application Industrial Automation Applications
 Brand Name Panduit®
 Dimensions 24 in W x 12 in D x 24 in H
 Includes (2) Cable Management Side Panels, (1) Blank Gland Plate for Cable Entry And Exit, (1) 1/2 in Conduit Plug For Power Entry, (1) Universal Ground Bar, (2) External Mount Flanges, (1) Base Plate, (5) Fosm Mounting Brackets, (15) Panduit® FOSMF Fiber Optic Splice Module, (4) PRSP5 Slack Manager Spools, (4) Armored Cable Grounding Kits, (1) Infrastructure Ground Cable and (2) Kevlar Strand Clamps
 Manufacturer Part Number FTE24A1A1
 Material Mild Steel
 PART NUMBER KEYWORDS FTE24A1A1 ; 15547490 ; 613056762107 ; 61305676210 ; 00613056762107 ; 0613056762107
 Series 288
 Specifications Wall Mount, NEMA 4X/4/12/IP66
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|RoHS 2011/65/EU/2015/863/EU|UL 508A
 Type Pre-Configured High Density

Features

▪ High density splicing - increased fiber splicing capacity in a single enclosure
▪ Pre-fabricated build - pre-installed FOSM brackets, FOSM's and grounding kit allow for quick deployment
▪ Custom FOSM bracket - allows up to three splice trays to be stacked per bracket, allowing neat containment of fibers
▪ Corrosion resistance will protect fibers, long term, from environmental exposures and damage
