Panduit

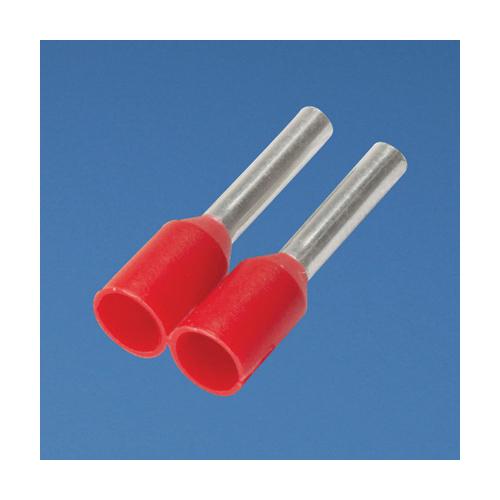

FSD77-8-3K2 PAN FERRULE INSUL 1MM2 8MMPIN RD 3000/RL

Mouse over image to zoom, click to enlarge

  • FSD77-8-3K2 PAN FERRULE INSUL 1MM2 8MMPIN RD 3000/RL
  • FSD77-8-3K2 PAN FERRULE INSUL 1MM2 8MMPIN RD 3000/RL

Description: Panduit® Reel Smart™ Ferrule, Type FSD Single Insulated, Stranded Conductor, 1 sq-mm Conductor, 0.57 in Length, Seamless Tubular Barrel, 0.06 in ID x 0.31 in L Barrel, 0.11 in Dia Maximum Wire Insulation, 0.39 in Mounting Hole Size, 13/32 in L Wire Strip, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Red

Manufacturer PN: FSD77-8-3K2

UPC:  07498390984

Kendall Electric Inc PN: 3597816

Invoice Description:

FSD77-8-3K2 PAN FERRULE INSUL 1MM2 8MMPIN RD 3000/RL


SPEC SHEET

▸ See All in Wire & Cable Ferrules


How Can We Make This Page Better?

Panduit® Reel Smart™ FSD77-8-3K2 Type FSD Single Insulated Ferrule, 1 sq-mm Stranded Conductor, 0.57 in L, Copper, Red

Log In for Pricing and Availability




Description

Panduit® Pan-Term® ferrule end sleeves terminate stranded wire into terminal blocks with superior termination performance. A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections, especially for limited space applications. Insulation flare allows for ease of wire insertion and eliminates loose strands of wire. Encapsulated crimp contains loose wires to eliminate stray wire breakage.
Panduit® Reel Smart™ Ferrule, Type FSD Single Insulated, Stranded Conductor, 1 sq-mm Conductor, 0.57 in Length, Seamless Tubular Barrel, 0.06 in ID x 0.31 in L Barrel, 0.11 in Dia Maximum Wire Insulation, 0.39 in Mounting Hole Size, 13/32 in L Wire Strip, Polypropylene Insulation, 221 deg F, Copper, Tin Plated, Red

Specifications

 Application For terminal block and panel building applications
 Barrel Size 0.06 in ID x 0.31 in L
 Brand Name Panduit®
 Color Red
 Conductor Size 1 sq-mm
 Conductor Type Stranded
 Finish Tin Plated
 Length 0.57 in
 Manufacturer Part Number FSD77-8-3K2
 Material Copper
 PART NUMBER KEYWORDS FSD77-8-3K2 ; FSD7783K2 ; 12945592 ; 074983909841 ; 74983909841 ; 07498390984 ; 00074983909841 ; 0074983909841
 Specifications 0.11 in Dia Maximum Wire Insulation, 0.39 in Mounting Hole Size, 13/32 in L Wire Strip, Polypropylene Insulation
 Standards/Approvals ARRA Compliant|Buy American Act Compliant|CSA C22.2 291-14 File No. LR31212|cULus File No. E472545|DIN 46228 Part 4|RoHS Compliant|UL File No. 486F|UL94 HB Flammability Rated
 Temperature Rating 221 deg F
 Type Type FSD Single Insulated
 Video Links

Features

▪ Designed with a seamless barrel to contain loose wire strands for superior terminations
▪ Eases insertion of wire into terminal block
▪ Meets DIN, UL and CSA standards for wire containment
