Hubbell

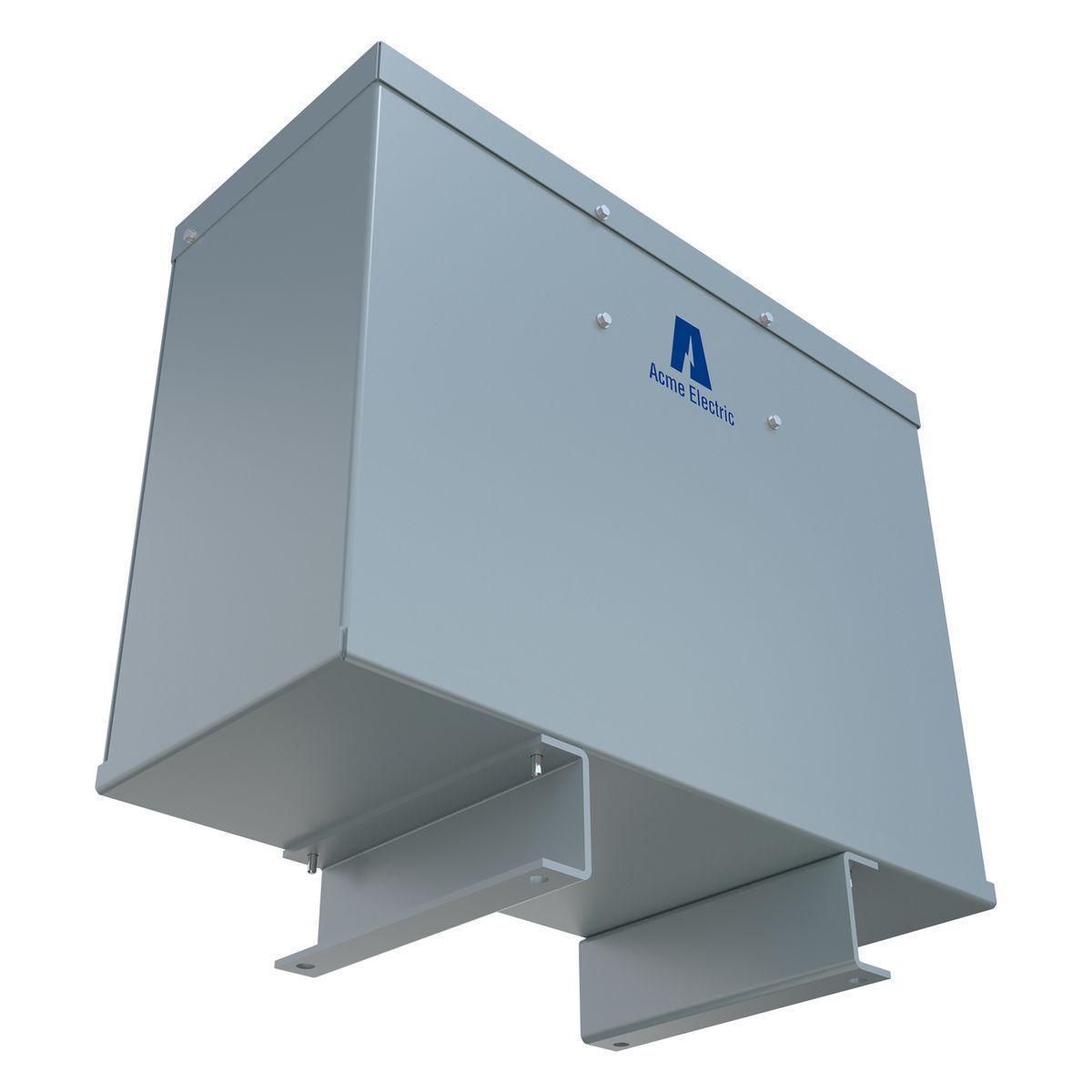

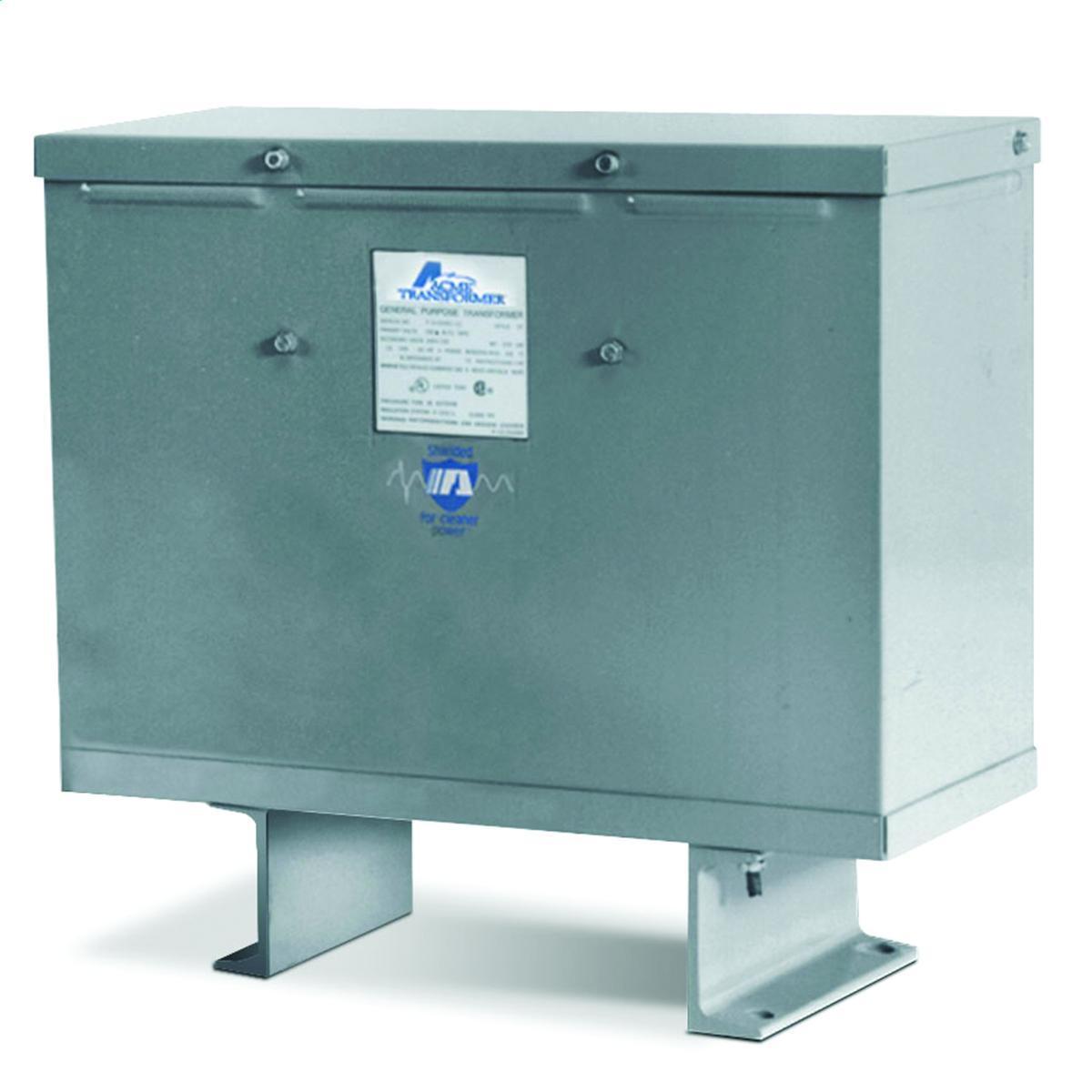

T-3-79693-1S-ELEC 15KVA 3PH DELTA PRIM 240V/SCNDRY 480VY/277V INDOOR DRY TYPE XFMR 04750379693

Mouse over image to zoom, click to enlarge

  • T-3-79693-1S-ELEC 15KVA 3PH DELTA PRIM 240V/SCNDRY 480VY/277V INDOOR DRY TYPE XFMR 04750379693
  • T-3-79693-1S-ELEC 15KVA 3PH DELTA PRIM 240V/SCNDRY 480VY/277V INDOOR DRY TYPE XFMR 04750379693
  • T-3-79693-1S-ELEC 15KVA 3PH DELTA PRIM 240V/SCNDRY 480VY/277V INDOOR DRY TYPE XFMR 04750379693

Description: Acme Electric®, T3796931S, Distribution Transformer, Low Voltage, 240 V Primary, 480, 277 V Secondary, 15 kVA Power, 60 Hz Frequency, 3 ph, Floor Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, ZFIN Housing Material, 18.86 in H x 20.3 in W x 9.03 in L Dimensions

Manufacturer PN: T3796931S

UPC:  04750379693

Kendall Electric Inc PN: 2655588

Invoice Description:

T-3-79693-1S-ELEC 15KVA 3PH DELTA PRIM 240V/SCNDRY 480VY/277V INDOOR DRY TYPE XFMR 04750379693


SPEC SHEET

▸ See All in Isolation Transformers


How Can We Make This Page Better?

Acme Electric® T3796931S Low Voltage Distribution Transformer, 240 V Primary, 480, 277 V Secondary, 15 kVA Power Rating, 60 Hz, 3 ph Phase

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Acme Electric®, T3796931S, Distribution Transformer, Low Voltage, 240 V Primary, 480, 277 V Secondary, 15 kVA Power, 60 Hz Frequency, 3 ph, Floor Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 115 deg C, ZFIN Housing Material, 18.86 in H x 20.3 in W x 9.03 in L Dimensions

Specifications

 Application For harsh industrial locations, corrosive chemical exposure, waste water treatment facilities and coastal or marine applications with high salt mist
 Brand Name Acme Electric
 Connection Type Wire Lead
 Dimensions 18.86 in H x 20.3 in W x 9.03 in L
 Enclosure NEMA 3R
 Frequency Rating 60 Hz
 Housing Material ZFIN
 Insulation 180 deg C
 Manufacturer Part Number T3796931S
 Mounting Type Floor
 Number of Taps 2
 PART NUMBER KEYWORDS T3796931S ; 8306182 ; 047503796931 ; 47503796931 ; 04750379693 ; 00047503796931
 Phase 3 ph
 Power Rating 15 kVA
 Prop65 Message WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
 Secondary Voltage 480, 277 V
 Standards/Approvals UL 506 File No. E79947|CSA C22.2 No. 47 File No. LR7357-32|PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
 Temperature Rating 115 deg C
 Type Low Voltage

Features

▪ Quiet operation with sound levels below NEMA standards
▪ Electrostatic shield for enhanced protection
