Eaton

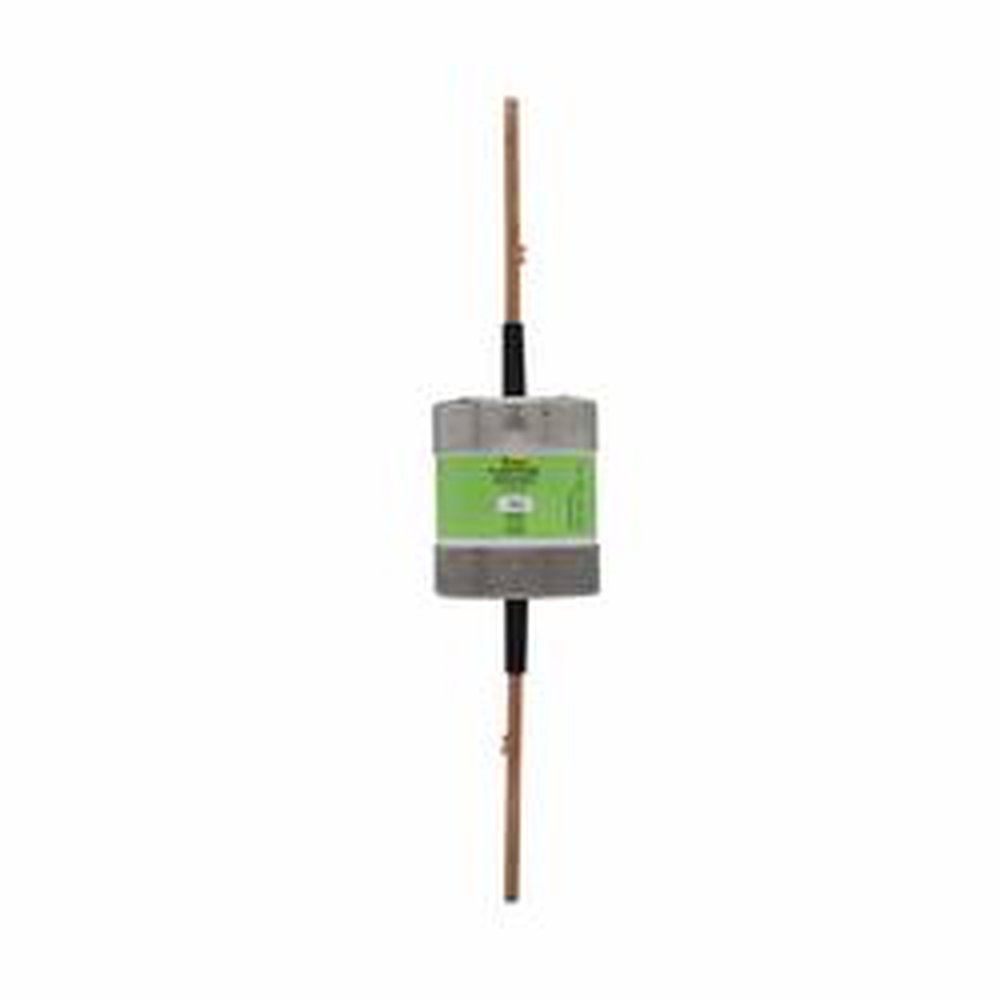

FRS-R-600 BUS 600V FUSE TRS600R

Mouse over image to zoom, click to enlarge

  • FRS-R-600 BUS 600V FUSE TRS600R
  • FRS-R-600 BUS 600V FUSE TRS600R
  • FRS-R-600 BUS 600V FUSE TRS600R
  • FRS-R-600 BUS 600V FUSE TRS600R

Description: Bussmann Fusetron™ Time Delay Fuse, Current Limiting Renewable, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.88 in Dia x 13.38 in L Body Size

Manufacturer PN: FRS-R-600

UPC:  05171250856

Kendall Electric Inc PN: 21771

Invoice Description:

FRS-R-600 BUS 600V FUSE TRS600R


SPEC SHEET

▸ See All in Class RK5 Fuses


How Can We Make This Page Better?

Bussmann Fusetron™ FRS-R-600 Current Limiting Renewable Time Delay Fuse, 600 A, 600 V AC/300 V DC, 20/200 kA Interrupt, RK5 Class, Cartridge Body

Log In for Pricing and Availability




Description

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500 of rated current (8 seconds for 1/10-30A sizes).
Bussmann Fusetron™ Time Delay Fuse, Current Limiting Renewable, Series: FRS-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 600 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: RK5, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, Fiberglass, 2.88 in Dia x 13.38 in L Body Size

Specifications

 Amperage Rating 600 A
 Application Combination Starters, Machinery Disconnects, Motor Control Centers and Power Panelboard Applications, Safety and Security Systems
 Body Size 2.88 in Dia x 13.38 in L
 Body Type Cartridge
 Brand Name Bussmann
 Class RK5
 Element Dual
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number FRS-R-600
 Material Fiberglass
 Mounting Type Holder
 PART NUMBER KEYWORDS FRS-R-600 ; FRSR600 ; 7621653 ; 051712508568 ; 51712508568 ; 05171250856 ; 00051712508568
 Rejection Non Rejection Rejection
 Response Time 10 s at 500%
 Series FRS-R
 Standards/Approvals CE Marked
 Terminal Type Blade
 Type Current Limiting Renewable
 Video Links
 Voltage Rating 600 V AC/300 V DC

Features

▪ Provides motor overload, ground fault and short circuit protection
▪ When used in circuits subject to surge currents such as those caused by motors, transformers and other inductive components, these fuses can be sized close to full-load amps to give maximum over current protection
▪ The time delay feature makes it possible to use fuse amperage ratings which are much smaller than those of non-time delay fuses
▪ Considerable cost savings occur by permitting the use of smaller size switches, panels and fuses themselves
▪ Provides a good deg of short circuit protection (greater current limitation) to help protect downstream components from high fault currents
▪ Gives motor running back-up protection to motors without extra cost
▪ Helps protect motors against burnout from overloads and single phasing when sized properly
▪ Simplifies and improves blackout prevention (selective co-ordination ratios)
▪ Dual element fuses can be applied in circuits subject to temporary motor overloads and surge currents to provide both high performance short circuit and overload protection
