Eaton

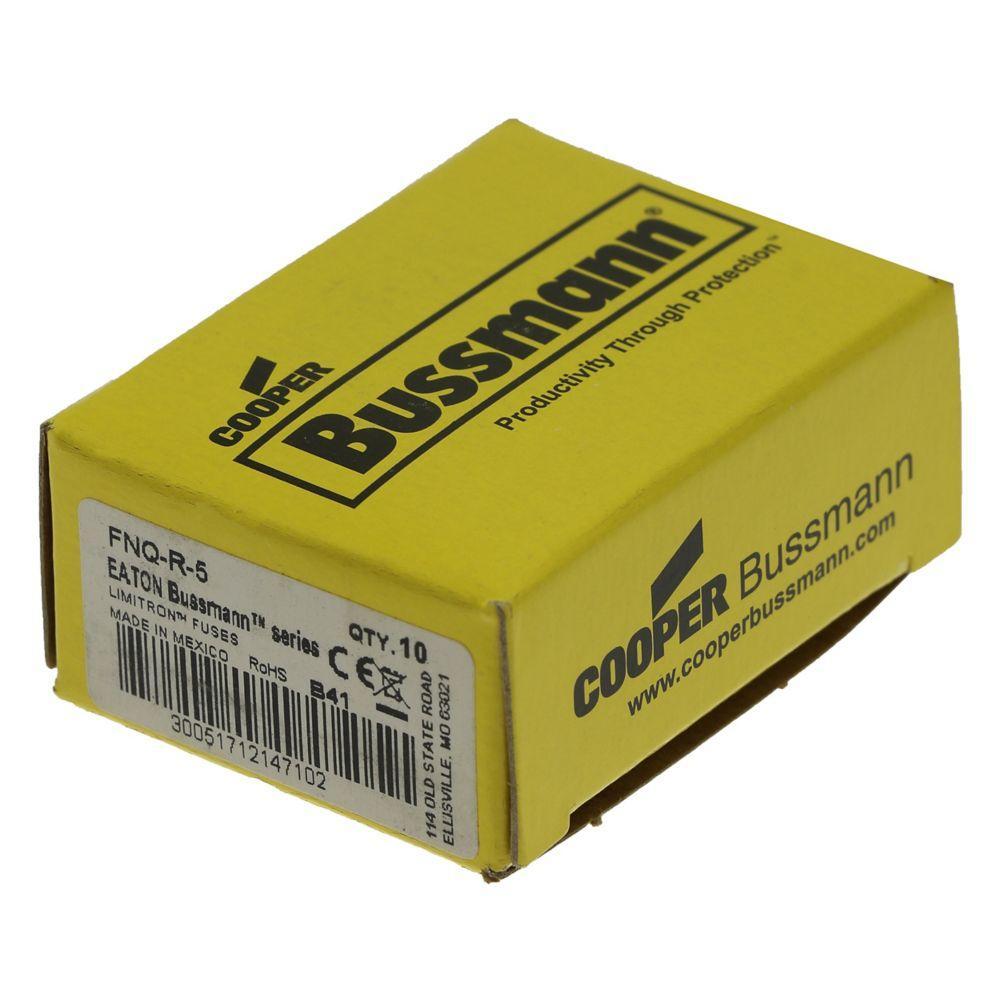

FNQ-R-5 BUS FUSE 600V MIDGET TIME DELAY

Mouse over image to zoom, click to enlarge

  • FNQ-R-5 BUS FUSE 600V MIDGET TIME DELAY
  • FNQ-R-5 BUS FUSE 600V MIDGET TIME DELAY

Description: Bussmann CC-Tron® Time Delay Fuse, Current Limiting High Inrush, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Manufacturer PN: FNQ-R-5

UPC:  05171214710

Kendall Electric Inc PN: 21603

Invoice Description:

FNQ-R-5 BUS FUSE 600V MIDGET TIME DELAY


SPEC SHEET

▸ See All in Class CC Fuses


How Can We Make This Page Better?

Bussmann CC-Tron® FNQ-R-5 Current Limiting High Inrush Time Delay Fuse, 5 A, 600 V, 200 kA Interrupt, CC Class, Cylindrical Body

Log In for Pricing and Availability




Description

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection
Bussmann CC-Tron® Time Delay Fuse, Current Limiting High Inrush, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 5 A, 600 V, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Specifications

 Amperage Rating 5 A
 Application Branch Circuits, Line Protection, Small Control Transformers and Industrial Control Applications, Safety and Security Systems
 Body Size 13/32 in Dia x 1-1/2 in L
 Body Type Cylindrical
 Brand Name Bussmann
 Class CC
 Element Dual
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number FNQ-R-5
 Material Melamine
 Mounting Type Holder
 Rejection Non Rejection Rejection
 Response Time 12 s at 200%
 Series FNQ-R
 Standards/Approvals CE Certified|CSA 1422-01/File No. 53787|NEC 110.9|RoHS Compliant|UL 248-4|UL File No. E4273|UL Guide JDDZ
 Terminal Type Ferrule
 Type Current Limiting High Inrush
 Video Links
 Voltage Rating 600 V
