Fluke

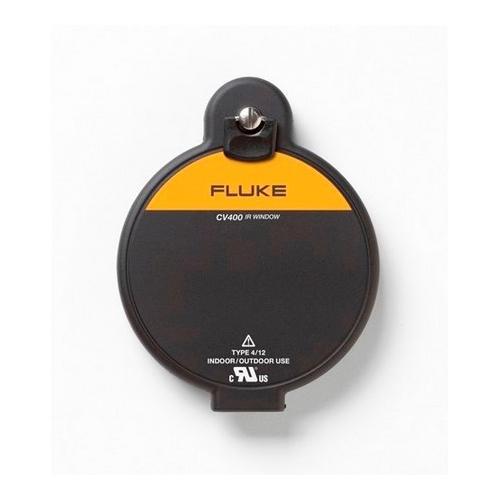

FLUKE-CV400 FLUKE 4 IN (100MM) IR WINDOW, HAND TURN DOOR LATCH 09596966708

Mouse over image to zoom, click to enlarge

  • FLUKE-CV400 FLUKE 4 IN (100MM) IR WINDOW, HAND TURN DOOR LATCH 09596966708
  • FLUKE-CV400 FLUKE 4 IN (100MM) IR WINDOW, HAND TURN DOOR LATCH 09596966708

Description: Fluke® ClirVu® Infrared Window, Series: CV Series, 4 in Crystal Insert, 0.9 in Window Thickness, 3.45 in Dia Viewing Aperture Size, 9.35 sq-in Viewing Aperture Area

Manufacturer PN: FLUKE-CV400

UPC:  09596966708

Kendall Electric Inc PN: 3364305

Invoice Description:

FLUKE-CV400 FLUKE 4 IN (100MM) IR WINDOW, HAND TURN DOOR LATCH 09596966708


SPEC SHEET

▸ See All in Infrared Windows


How Can We Make This Page Better?

Fluke® ClirVu® FLUKE-CV400 CV Series Infrared Window With Hand Turn Door Latch, 4 in Crystal Insert, 0.9 in THK Window

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

A company's greatest investment is not the equipment that's behind the panel door, top priority is to offer the ultimate protection for the electricians, engineers and inspectors who risk their lives every day doing their jobs. The ClirVu® coating - exclusive to Fluke® infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold environments. Each Fluke® infrared window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs. For a security key access option see the CV201 IR Window.
Fluke® ClirVu® Infrared Window, Series: CV Series, 4 in Crystal Insert, 0.9 in Window Thickness, 3.45 in Dia Viewing Aperture Size, 9.35 sq-in Viewing Aperture Area

Specifications

 Application Indoor and Outdoor Applications
 Brand Name Fluke
 Crystal Insert Size 4 in
 Manufacturer Part Number FLUKE-CV400
 PART NUMBER KEYWORDS FLUKE-CV400 ; FLUKECV400 ; 4326996 ; 095969667081 ; 95969667081 ; 09596966708 ; 00095969667081
 Series CV Series
 Standards/Approvals RoHS Compliant|CSA C22.2 No. 14-13:2012|IEC60529-1|IEC 60068-2-6|60068-2-3 at TUV|IEEE C37.20.7 at KEMA|UL 50/50E/50V|UL 1558
 Viewing Aperture Area 9.35 sq-in
 Viewing Aperture Size 3.45 in Dia
 Window Thickness 0.9 in

Features

▪ Reduce the risk of arc flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance
▪ Convenience of both quick turn or security keyed access
▪ Installs and grounds in less than 5 min
▪ One technician
▪ One hole with standard Greenlee® punch
▪ Panel door does not need to be removed
▪ Grounds instantly to metal enclosure with patent pending AutoGround™ process
▪ Maintains panel arc test ratings up to 63 kA when properly installed
▪ Work more efficiently with Fluke® ClirVu® CV200 50 mm infrared windows
▪ NFPA 70E processes significantly reduced due to less work permit requirements
▪ Faster and more comfortable inspections because full PPE is often not required
