Fluke
FLUKE-381-CAL FLUKE RMTDISP 1000A TRMSCLMP WIFLX TRCBL WDAT

Mouse over image to zoom, click to enlarge

  • FLUKE-381-CAL FLUKE RMTDISP 1000A TRMSCLMP WIFLX TRCBL WDAT
  • FLUKE-381-CAL FLUKE RMTDISP 1000A TRMSCLMP WIFLX TRCBL WDAT
  • FLUKE-381-CAL FLUKE RMTDISP 1000A TRMSCLMP WIFLX TRCBL WDAT
  • FLUKE-381-CAL FLUKE RMTDISP 1000A TRMSCLMP WIFLX TRCBL WDAT

Description: Fluke® AC/DC Clamp Meter, 600/1000 V AC/DC, 999.9/2500 A Electrical Rating, 600 Ohm/6 kOhm/60 kOhm Resistance, 5 to 500 Hz Frequency, 34 mm Jaw, True RMS AC Response, 2% +/- 5 Digits at 10 to 100 Hz, 5% +/- 5 Digits at 100 to 500 Hz, 3% +/- 5 Digits AC Current Accuracy, 1.5% +/- 5 Digits at 20 to 500 Hz AC, 1% +/- 5 Digits DC Voltage Accuracy, Safety Rating: ANSI/ISA S82.02.01:2004, CAN/CSA-C22.2 No. 61010-1-04, IEC/EN 61010-1:2001 to CAT III 1000 V, CAT IV 600 V, Battery Power Source, -10 to 50 deg C Operating, 277 mm L x 88 mm W x 43 mm H Dimensions

Manufacturer PN: FLUKE-381-CAL

UPC:  09596994693

Kendall Electric Inc PN: 4549922

Invoice Description:

FLUKE-381-CAL FLUKE RMTDISP 1000A TRMSCLMP WIFLX TRCBL WDAT


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Fluke® FLUKE-381-CAL AC/DC Clamp Meter, 600/1000 V AC/DC, 999.9/2500 A, 600 Ohm/6 kOhm/60 kOhm, 5 to 500 Hz, 34 mm Jaw

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

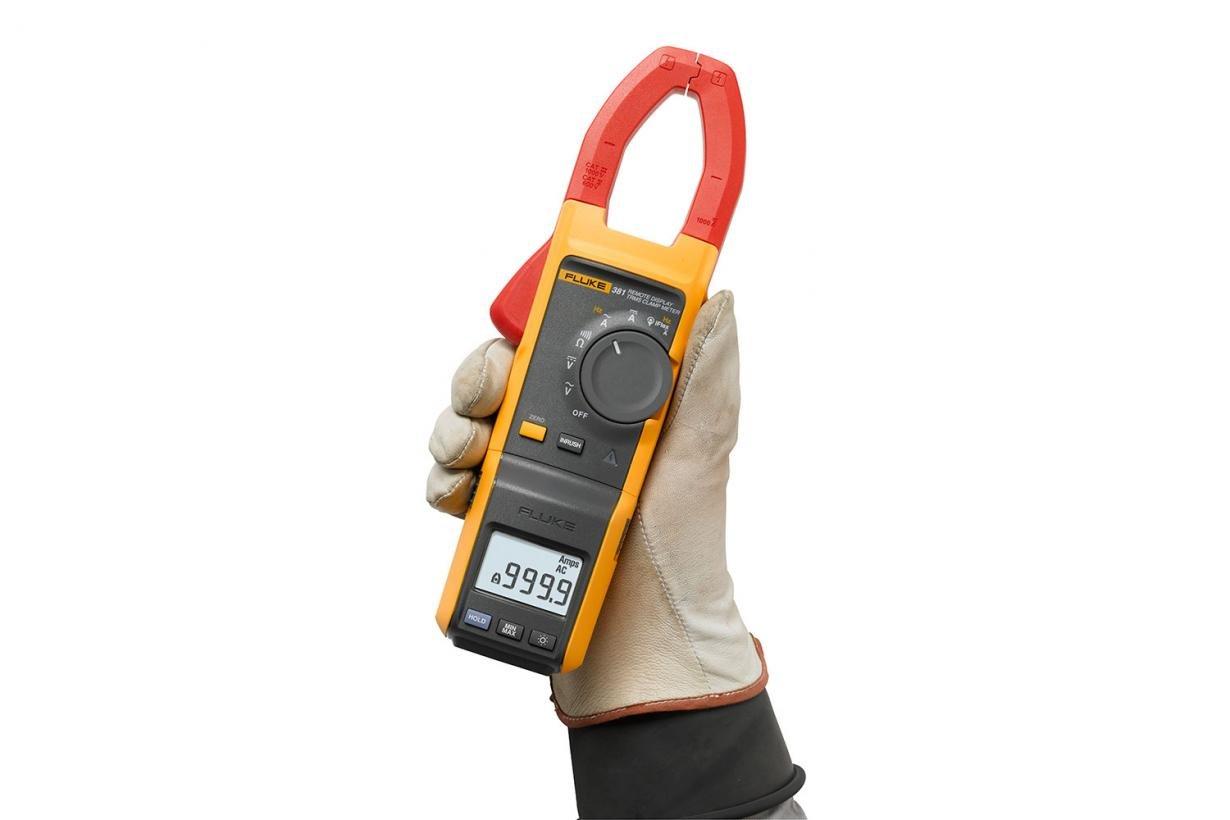

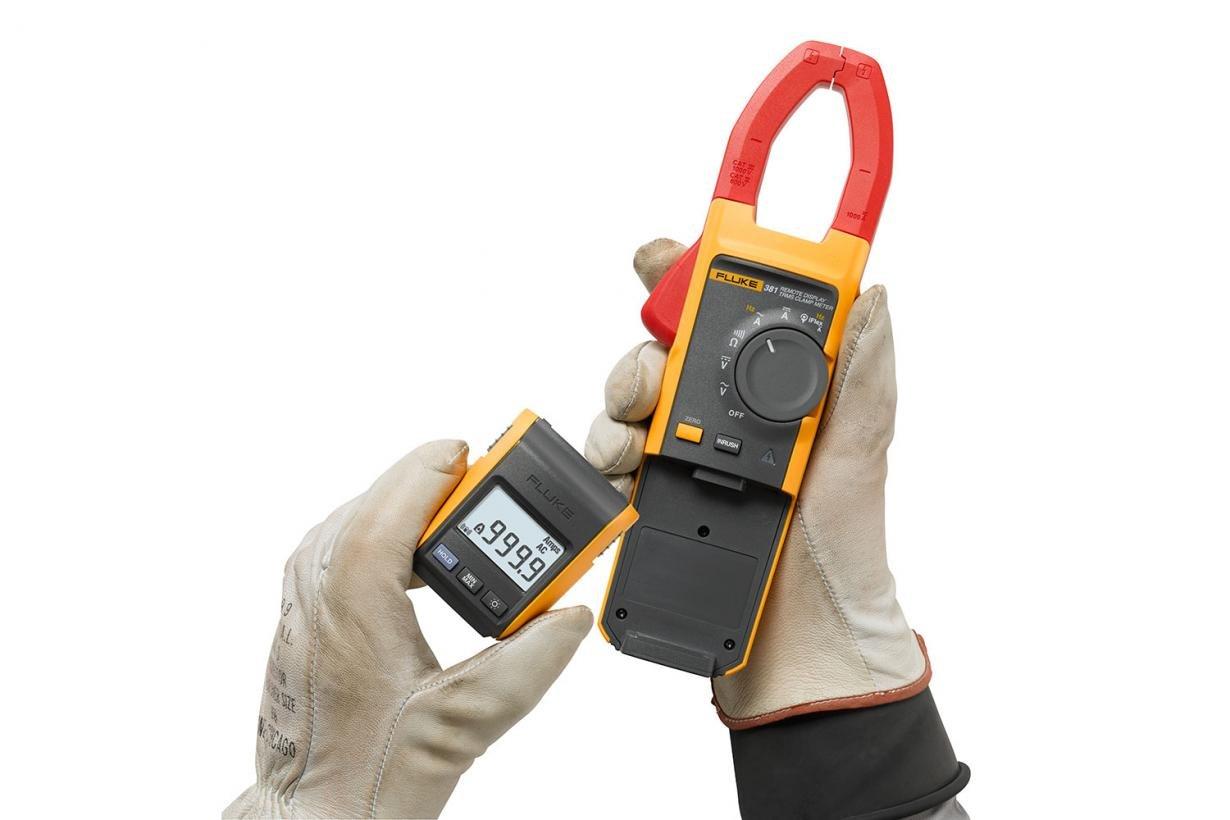

The new Fluke® 381 does everything you would expect from a Clamp Meter and then lets you remove the display for even more flexibility. Now one technician can do jobs that used to require two people, clamp the Fluke® 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real time readings. The new iFlex™ flexible current probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access.
Fluke® AC/DC Clamp Meter, 600/1000 V AC/DC, 999.9/2500 A Electrical Rating, 600 Ohm/6 kOhm/60 kOhm Resistance, 5 to 500 Hz Frequency, 34 mm Jaw, True RMS AC Response, 2% +/- 5 Digits at 10 to 100 Hz, 5% +/- 5 Digits at 100 to 500 Hz, 3% +/- 5 Digits AC Current Accuracy, 1.5% +/- 5 Digits at 20 to 500 Hz AC, 1% +/- 5 Digits DC Voltage Accuracy, Safety Rating: ANSI/ISA S82.02.01:2004, CAN/CSA-C22.2 No. 61010-1-04, IEC/EN 61010-1:2001 to CAT III 1000 V, CAT IV 600 V, Battery Power Source, -10 to 50 deg C Operating, 277 mm L x 88 mm W x 43 mm H Dimensions

Specifications

 AC Current Accuracy 2% +/- 5 Digits at 10 to 100 Hz, 5% +/- 5 Digits at 100 to 500 Hz, 3% +/- 5 Digits
 AC Response True RMS
 Brand Name Fluke
 Dimensions 277 mm L x 88 mm W x 43 mm H
 Electrical Ratings 600/1000 V AC/DC, 999.9/2500 A
 Frequency Rating 5 to 500 Hz
 Includes 18 in iFlex® Flexible Current Probe, Coated Instruction Card, Safety Information Sheet, Soft Carrying Case, TL75 Test Lead and (5) AA Alkaline Batteries
 Jaw Capacity 34 mm
 Manufacturer Part Number FLUKE-381-CAL
 Operating Temperature -10 to 50 deg C
 PART NUMBER KEYWORDS FLUKE-381-CAL ; FLUKE381CAL ; 5160675 ; 095969946933 ; 95969946933 ; 09596994693 ; 00095969946933
 Power Source Battery
 Resistance 600 Ohm/6 kOhm/60 kOhm
 Standards/Approvals cCSAus Listed|CE Certified|ECCN: 3A992|ECCN: 3A992|EN 61326-1:2006, EN 61326-2-2:2006|ETSI EN 300 328 V1.7.1:2006|ETSI EN 300 489 V1.8.1:2008|FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249|FCCID: T68-F381|IEC 61010-1|IEC 61010-2-032|N10140 Certified|N10140 Certified|RoHS Compliant|RSS-210 IC: 6627A-F381|Traceable® Calibration Certified|TUV Certified
 Voltage Accuracy 1.5% +/- 5 Digits at 20 to 500 Hz AC, 1% +/- 5 Digits DC

Features

▪ Wireless technology allows the display to be carried up to 30 ft away from the point of measurement for added flexibility without interference with measurement accuracy
▪ The removable magnetic display can be conveniently mounted where it is easily seen

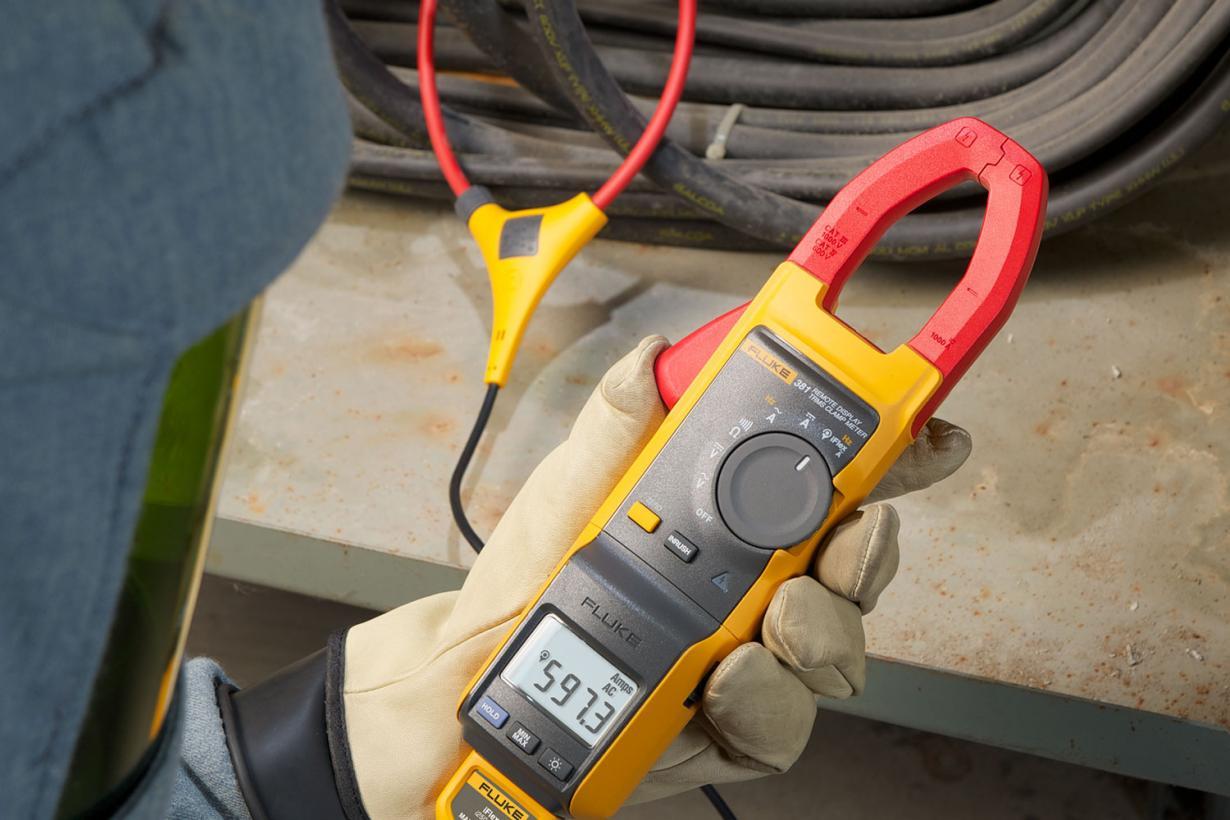

▪ iFlex® flexible current probe expands the measurement range to 2500 A AC
▪ Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
▪ Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
▪ Ergonomic design fits in your hand and can be used while wearing protective equipment
▪ Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
