Fluke
FLUKE-378-FC FLUKE 1000A ACDC TRMS NC VOLT WRLSCLMP WPQ

Mouse over image to zoom, click to enlarge

  • FLUKE-378-FC FLUKE 1000A ACDC TRMS NC VOLT WRLSCLMP WPQ
  • FLUKE-378-FC FLUKE 1000A ACDC TRMS NC VOLT WRLSCLMP WPQ
  • FLUKE-378-FC FLUKE 1000A ACDC TRMS NC VOLT WRLSCLMP WPQ
  • FLUKE-378-FC FLUKE 1000A ACDC TRMS NC VOLT WRLSCLMP WPQ

Description: Fluke® AC/DC Clamp Meter, Non-Contact Voltage, 600/1000 V AC/DC, 999.9/2500 A Electrical Rating, 60 kOhm/6000 Ohm/600 Ohm Resistance, 5 to 500 Hz Frequency, 34 mm Jaw, True RMS AC Response, 2% +/-5 Digits at 10 to 100 Hz, 2.5% +/-5 Digits at 100 to 500 Hz, 3% +/-5 Digits at 5 to 500 Hz AC Current Accuracy, 1% +/- 5 Digits at 20 to 500 Hz AC, 1% +/- 5 Digits DC Voltage Accuracy, Safety Rating: IEC 61010-1 Pollution Degree 2, IEC 61010-2-032/IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V, -10 to 50 deg C Operating, 274 mm L x 86 mm W x 47 mm H Dimensions

Manufacturer PN: FLUKE-378-FC

UPC:  09596991661

Kendall Electric Inc PN: 4419363

Invoice Description:

FLUKE-378-FC FLUKE 1000A ACDC TRMS NC VOLT WRLSCLMP WPQ


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Fluke® FLUKE-378-FC Non-Contact Voltage AC/DC Clamp Meter, 600/1000 V AC/DC, 999.9/2500 A, 60 kOhm/6000 Ohm/600 Ohm, 5 to 500 Hz, 34 mm Jaw

Log In for Pricing and Availability




Description

The Fluke® 378 FC true RMS Clamp Meters use FieldSense™ technology to make testing faster and safer, all without touching a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.
Fluke® AC/DC Clamp Meter, Non-Contact Voltage, 600/1000 V AC/DC, 999.9/2500 A Electrical Rating, 60 kOhm/6000 Ohm/600 Ohm Resistance, 5 to 500 Hz Frequency, 34 mm Jaw, True RMS AC Response, 2% +/-5 Digits at 10 to 100 Hz, 2.5% +/-5 Digits at 100 to 500 Hz, 3% +/-5 Digits at 5 to 500 Hz AC Current Accuracy, 1% +/- 5 Digits at 20 to 500 Hz AC, 1% +/- 5 Digits DC Voltage Accuracy, Safety Rating: IEC 61010-1 Pollution Degree 2, IEC 61010-2-032/IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V, -10 to 50 deg C Operating, 274 mm L x 86 mm W x 47 mm H Dimensions

Specifications

 AC Current Accuracy 2% +/-5 Digits at 10 to 100 Hz, 2.5% +/-5 Digits at 100 to 500 Hz, 3% +/-5 Digits at 5 to 500 Hz
 AC Response True RMS
 Brand Name Fluke
 Dimensions 274 mm L x 86 mm W x 47 mm H
 Electrical Ratings 600/1000 V AC/DC, 999.9/2500 A
 Frequency Rating 5 to 500 Hz

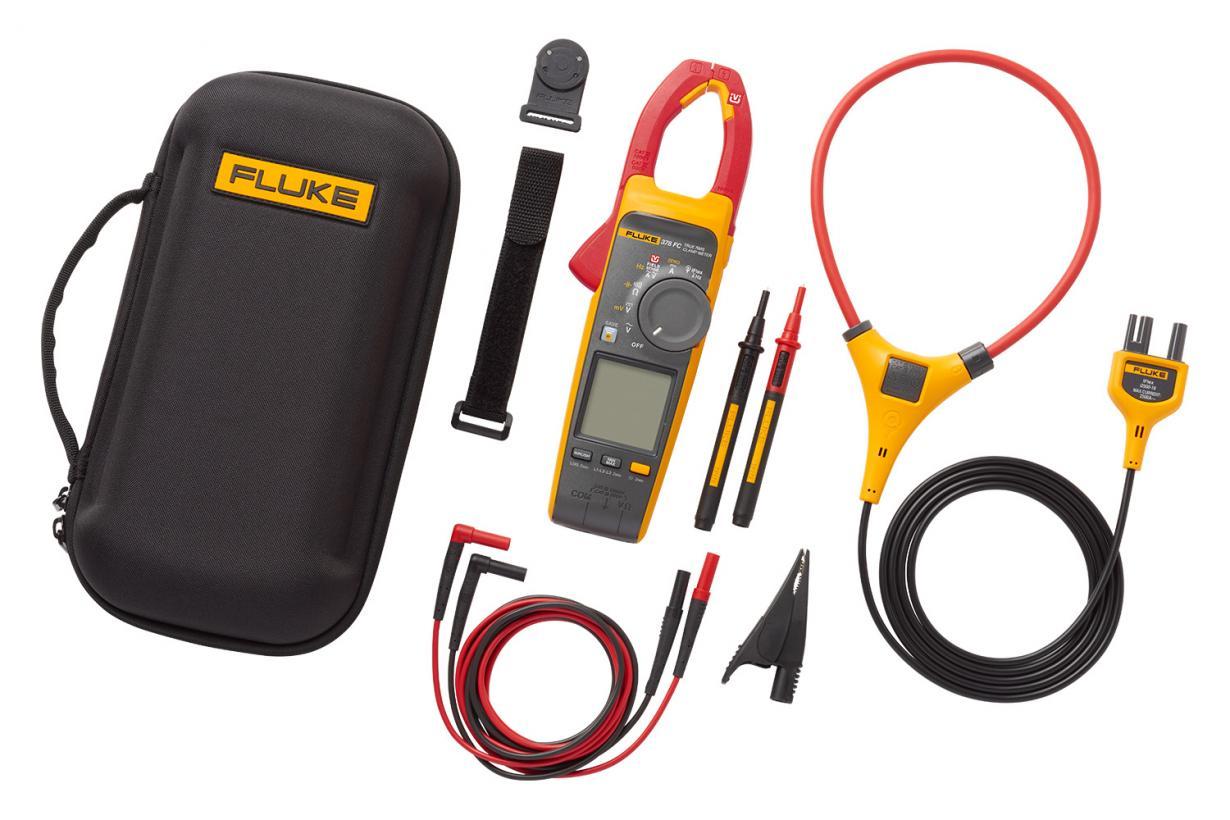

 Includes TL224 Test Lead, TP175 TwistGuard™ Test Probes, (1) AC285 Black Grounding Clip, i2500-18 iFlex® 18 in Flexible Current Probes, TPAK ToolPak™ Magnetic Meter Hanger, Premium Carrying Case and Quick Reference Guide
 Jaw Capacity 34 mm
 Manufacturer Part Number FLUKE-378-FC
 Operating Temperature -10 to 50 deg C
 PART NUMBER KEYWORDS FLUKE-378-FC ; FLUKE378FC ; 5111812 ; 095969916615 ; 95969916615 ; 09596991661 ; 00095969916615
 Resistance 60 kOhm/6000 Ohm/600 Ohm
 Standards/Approvals ECCN: 3A992|RoHS Compliant|PROP65: This product can expose you to chemicals including lead, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Type Non-Contact Voltage
 Voltage Accuracy 1% +/- 5 Digits at 20 to 500 Hz AC, 1% +/- 5 Digits DC

Features

▪ Measure voltage and current with your clamp jaw
▪ Faster, safer testing - all without touching a live wire - using FieldSense™ technology
▪ Complete 3 phase voltage and current tests in 3-quick steps
▪ Power quality indicator shows whether equipment or power line is faulty
