Fluke
FLUKE-376FC FLUKE 1000A AC/DC TRMS WIRELESS CLAMP W/ IFLEX 5065965

Mouse over image to zoom, click to enlarge

  • FLUKE-376FC FLUKE 1000A AC/DC TRMS WIRELESS CLAMP W/ IFLEX 5065965
  • FLUKE-376FC FLUKE 1000A AC/DC TRMS WIRELESS CLAMP W/ IFLEX 5065965
  • FLUKE-376FC FLUKE 1000A AC/DC TRMS WIRELESS CLAMP W/ IFLEX 5065965
  • FLUKE-376FC FLUKE 1000A AC/DC TRMS WIRELESS CLAMP W/ IFLEX 5065965

Description: Fluke® Clamp Meter, Wireless, 999.9 A Electrical Rating, 60 kOhm Resistance, 10 to 100/100 to 500 Hz Frequency, 34 mm Jaw, 2% +/-5 Digits, 2.5% +/-5 Digits, 3% +/-5 Digits AC Current Accuracy, 1.5% +/-5 Digits, 1% +/- 5 Digits Voltage Accuracy, Frequency Counter: 5 to 500 Hz, Safety Rating: CAT IV 600 V AC, CAT III 1000 V AC, (2) AA NEDA 15A IEC LR6 Batteries Power Source, 14 to 122 deg F Operating, 249 mm L x 85 mm W x 45 mm H Dimensions

Manufacturer PN: FLUKE-376-FC

UPC:  09596979839

Kendall Electric Inc PN: 3528259

Invoice Description:

FLUKE-376FC FLUKE 1000A AC/DC TRMS WIRELESS CLAMP W/ IFLEX 5065965


SPEC SHEET

How Can We Make This Page Better?

Fluke® FLUKE-376/FC Wireless Clamp Meter, 999.9 A, 60 kOhm, 10 to 100/100 to 500 Hz, 34 mm Jaw

Log In for Pricing and Availability




Description

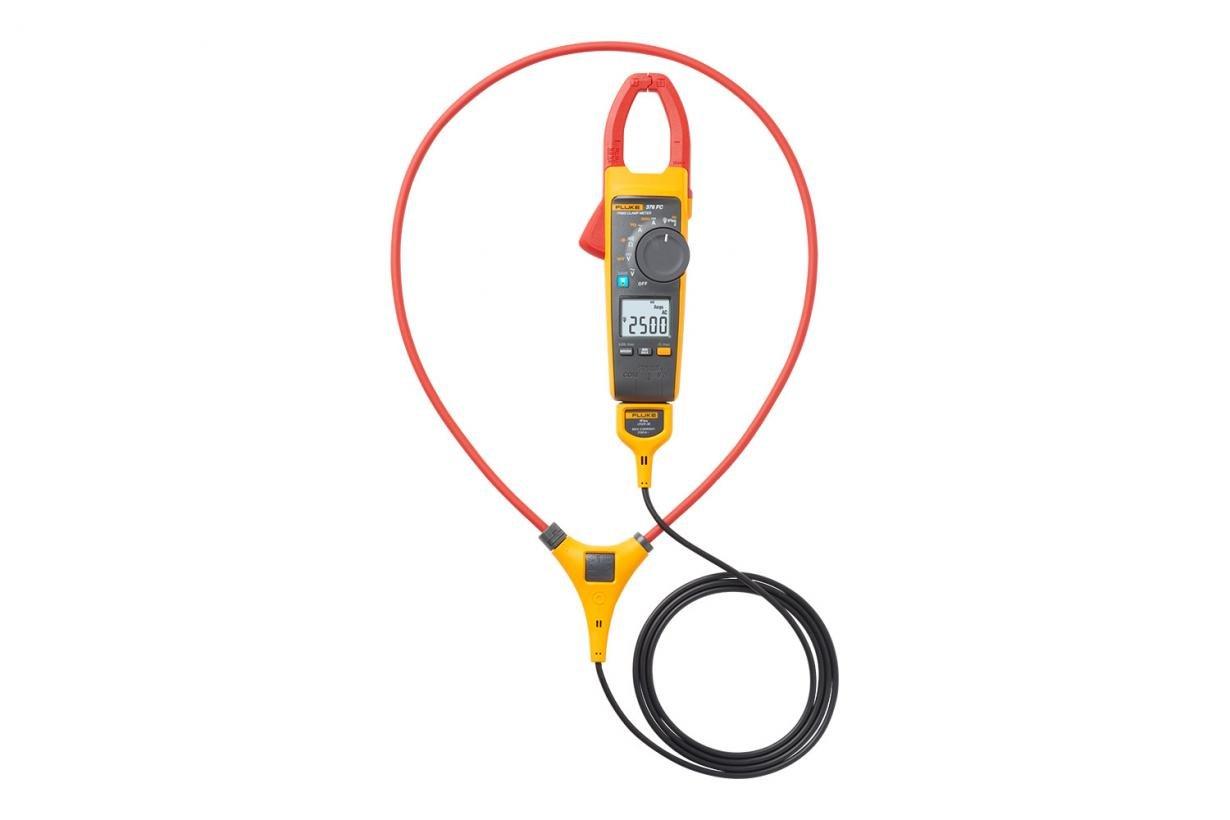

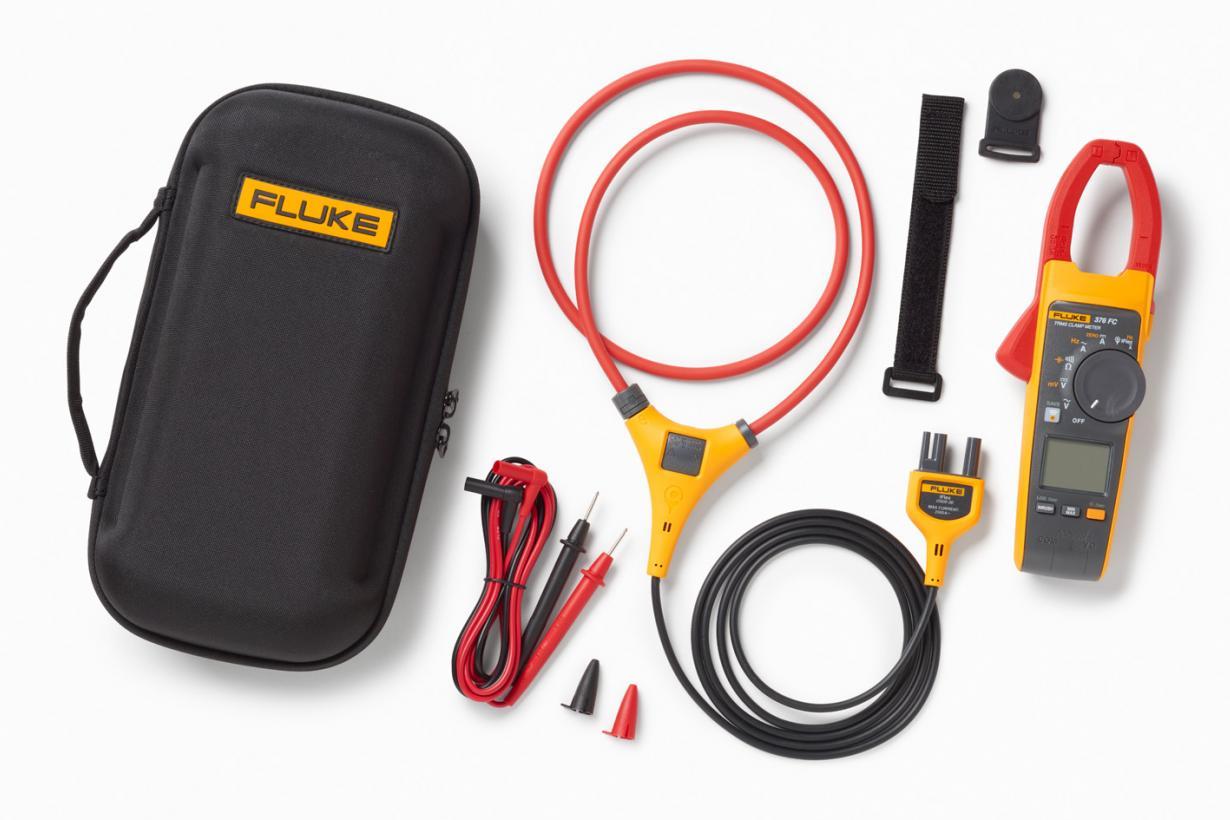

The Fluke® 376 FC wireless True-RMS™ AC/DC clamp meter offers measurements up to 1000 VAC and 1000 A, AC or DC, plus an included iFlex" flexible current clamp.
Fluke® Clamp Meter, Wireless, 999.9 A Electrical Rating, 60 kOhm Resistance, 10 to 100/100 to 500 Hz Frequency, 34 mm Jaw, 2% +/-5 Digits, 2.5% +/-5 Digits, 3% +/-5 Digits AC Current Accuracy, 1.5% +/-5 Digits, 1% +/- 5 Digits Voltage Accuracy, Frequency Counter: 5 to 500 Hz, Safety Rating: CAT IV 600 V AC, CAT III 1000 V AC, (2) AA NEDA 15A IEC LR6 Batteries Power Source, 14 to 122 deg F Operating, 249 mm L x 85 mm W x 45 mm H Dimensions

Specifications

 AC Current Accuracy 2% +/-5 Digits, 2.5% +/-5 Digits, 3% +/-5 Digits
 Brand Name Fluke
 Dimensions 249 mm L x 85 mm W x 45 mm H
 Electrical Ratings 999.9 A
 Frequency Counter 5 to 500 Hz
 Frequency Rating 10 to 100/100 to 500 Hz
 Jaw Capacity 34 mm
 Manufacturer Part Number FLUKE-376/FC
 Operating Temperature 14 to 122 deg F
 PART NUMBER KEYWORDS FLUKE-376/FC ; FLUKE376FC ; 4695861 ; 095969798396 ; 95969798396 ; 09596979839 ; 00095969798396
 Power Source (2) AA NEDA 15A IEC LR6 Batteries
 Resistance 60 kOhm
 Standards/Approvals CE Marking|CSA Certified|ECCN: 3A992|TUV Approved
 Type Wireless
 Voltage Accuracy 1.5% +/-5 Digits, 1% +/- 5 Digits

Features

▪ 600 A AC and DC current measurement
▪ 2500 A AC current measurement with iFlex® flexible current probe
▪ 1000 VAC/VDC voltage measurement
▪ True-RMS voltage and current for accurate measurements on non-linear signals
▪ Resistance measurement to 6000 Ohm with continuity detection
▪ 600 A AC current via jaw/2500 A AC current via flexible current probe
▪ 0.1 A resolution via jaw/flexible current probe
▪ 1% +/-5 digits resistance accuracy
▪ 1000 uF capacitance measurement
▪ 0.1 uF
▪ Log and trend measurements and pinpoint intermittent faults
▪ Connect your meter to your smartphone with Fluke® connect measurements

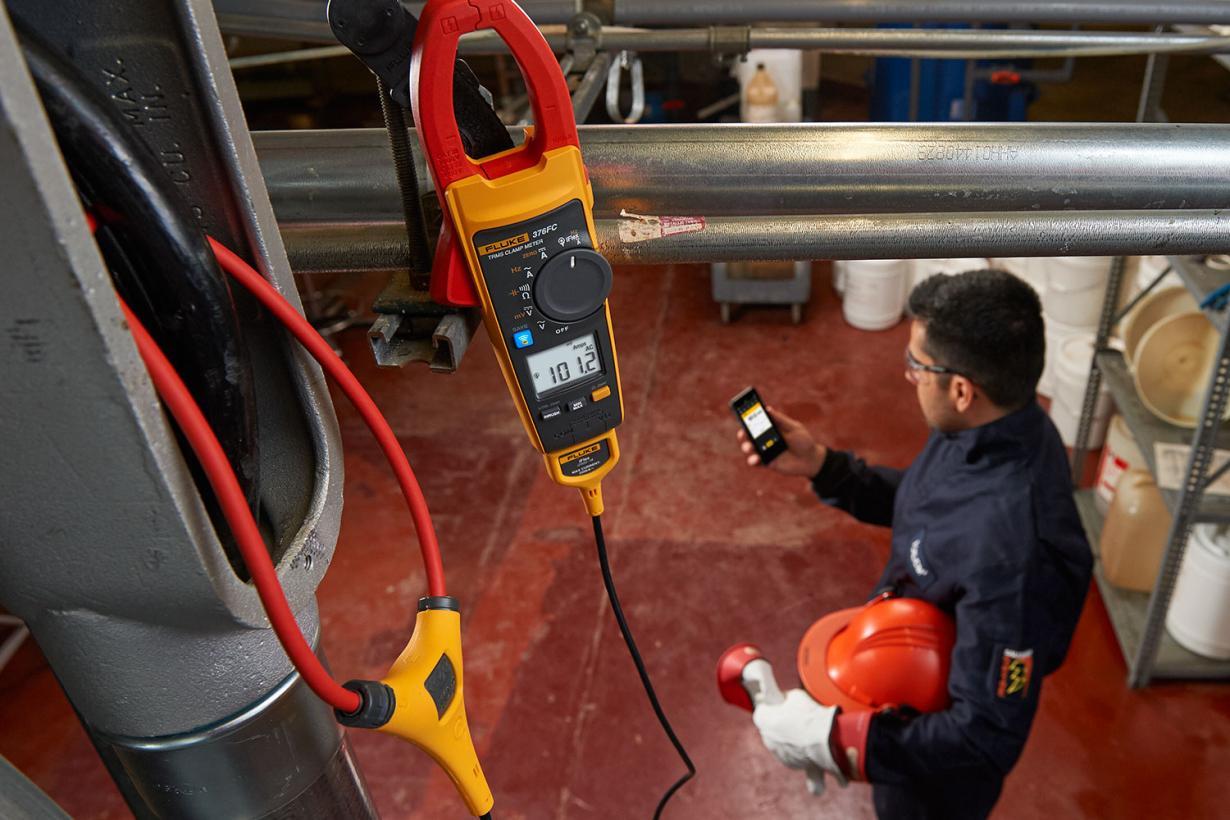

▪ Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
▪ Record results directly to your phone and the cloud
▪ Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke® 376 FC
▪ Create and share reports from the field via email or converse in real time with share live video calls
▪ IFlex® flexible current probe expands the measurement range to 2500 A AC, provides access to large conductors in tight spaces
▪ Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees It
▪ -40 to 60 deg C storage temperature
▪ IP30 protection rating
