Fluke

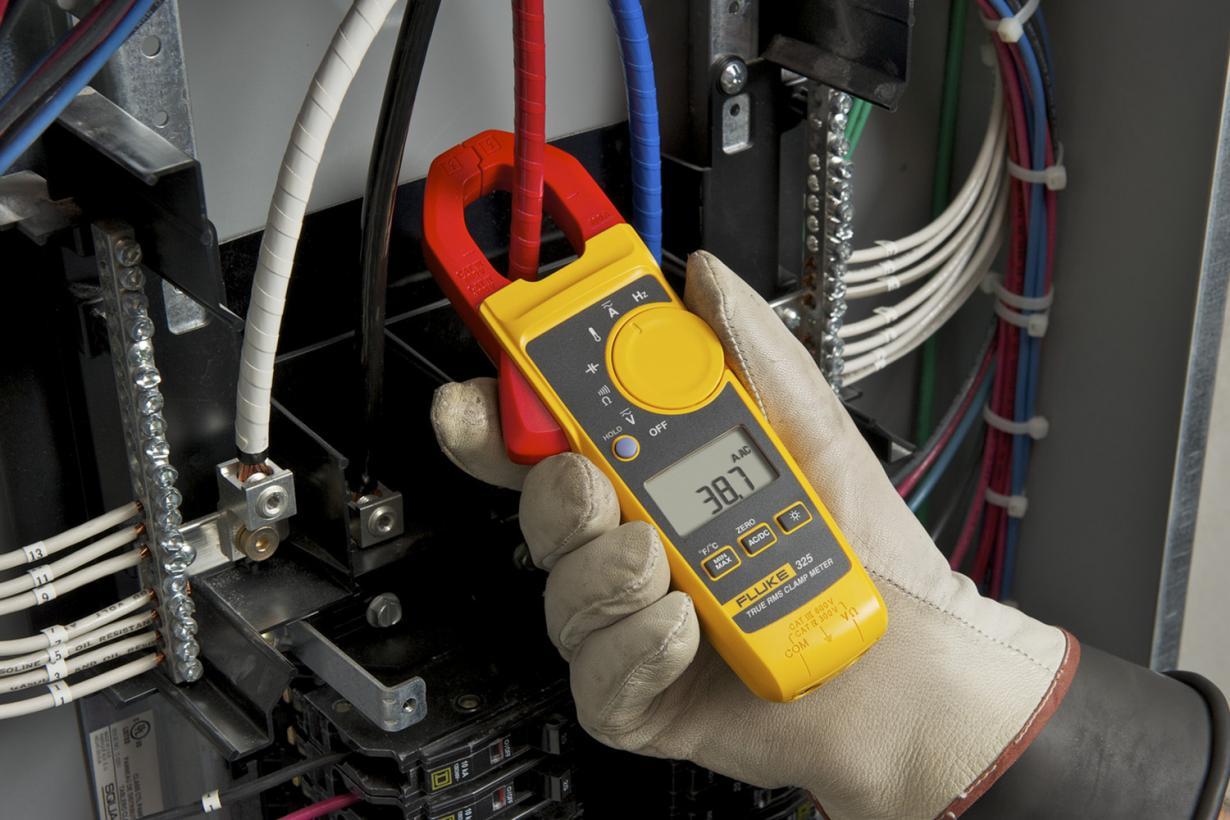

FLUKE-325 FLUKE 400A AC/DC TRUE RMS CLAMP METER W/TEMP 5065866

Mouse over image to zoom, click to enlarge

  • FLUKE-325 FLUKE 400A AC/DC TRUE RMS CLAMP METER W/TEMP 5065866
  • FLUKE-325 FLUKE 400A AC/DC TRUE RMS CLAMP METER W/TEMP 5065866
  • FLUKE-325 FLUKE 400A AC/DC TRUE RMS CLAMP METER W/TEMP 5065866
  • FLUKE-325 FLUKE 400A AC/DC TRUE RMS CLAMP METER W/TEMP 5065866

Description: Fluke® Clamp Meter, 40/400 A, 600 V AC/DC Electrical Rating, 40 kOhm Resistance, 5 to 500 Hz Frequency, 30 mm Jaw, Backlit Display, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits VAC, 1% +/-5 Digits VDC Voltage Accuracy, Frequency Counter: 5 to 500 Hz, Safety Rating: CAT III 600 VAC, CAT IV 300 VAC, -10 to 50 deg C Operating, 8.15 in L x 2.95 in W x 1.34 in H Dimensions, Hard Plastic

Manufacturer PN: FLUKE-325

UPC:  09596962376

Kendall Electric Inc PN: 2919115

Invoice Description:

FLUKE-325 FLUKE 400A AC/DC TRUE RMS CLAMP METER W/TEMP 5065866


SPEC SHEET

▸ See All in Clamp Meters


How Can We Make This Page Better?

Fluke® FLUKE-325 Clamp Meter, 40/400 A, 600 V AC/DC, 40 kOhm, 5 to 500 Hz, 30 mm Jaw, Backlit Display

Log In for Pricing and Availability




Description

True-RMS measurements and optimized ergonomics make the 320 series clamp meters the best general troubleshooting tools for commercial and residential electricians. The Fluke® 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
Fluke® Clamp Meter, 40/400 A, 600 V AC/DC Electrical Rating, 40 kOhm Resistance, 5 to 500 Hz Frequency, 30 mm Jaw, Backlit Display, 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz AC Current Accuracy, 1.5% +/-5 Digits VAC, 1% +/-5 Digits VDC Voltage Accuracy, Frequency Counter: 5 to 500 Hz, Safety Rating: CAT III 600 VAC, CAT IV 300 VAC, -10 to 50 deg C Operating, 8.15 in L x 2.95 in W x 1.34 in H Dimensions, Hard Plastic

Specifications

 AC Current Accuracy 2% +/-5 Digits at 45 to 65 Hz, 2.5% +/-5 Digits at 65 to 400 Hz
 Application For current measurements in tight cable compartments and overall troubleshooting by commercial and residential electricians
 Brand Name Fluke
 Dimensions 8.15 in L x 2.95 in W x 1.34 in H
 Electrical Ratings 40/400 A, 600 V AC/DC
 Frequency Counter 5 to 500 Hz
 Frequency Rating 5 to 500 Hz
 Includes Test Leads, Soft Case and User's Manual
 Jaw Capacity 30 mm
 Manufacturer Part Number FLUKE-325
 Material Hard Plastic
 Operating Temperature -10 to 50 deg C
 PART NUMBER KEYWORDS FLUKE-325 ; FLUKE325 ; 4152643 ; 095969623766 ; 95969623766 ; 09596962376 ; 00095969623766
 Resistance 40 kOhm
 Standards/Approvals cCSAus Certified|CE Marking|ECCN: EAR99|N10140 Certified
 Voltage Accuracy 1.5% +/-5 Digits V AC, 1% +/-5 Digits V DC

Features

▪ True-RMS AC voltage and current for accurate measurements on non-linear signals
▪ Large, easy to read backlight display
▪ Slim, ergonomic design, hold button
▪ Fluke® rugged, reliable, precise
▪ Resistance measurement up to 4 kOhm with continuity detection
▪ Resistance 400 Ohm/4000 Ohm/40 kOhm with accuracy of (1% +/- 5 digits)
▪ <=30 Ohm continuity, 0 to 100 uF, 100 uF to 1000 uF capacitance
