Fluke

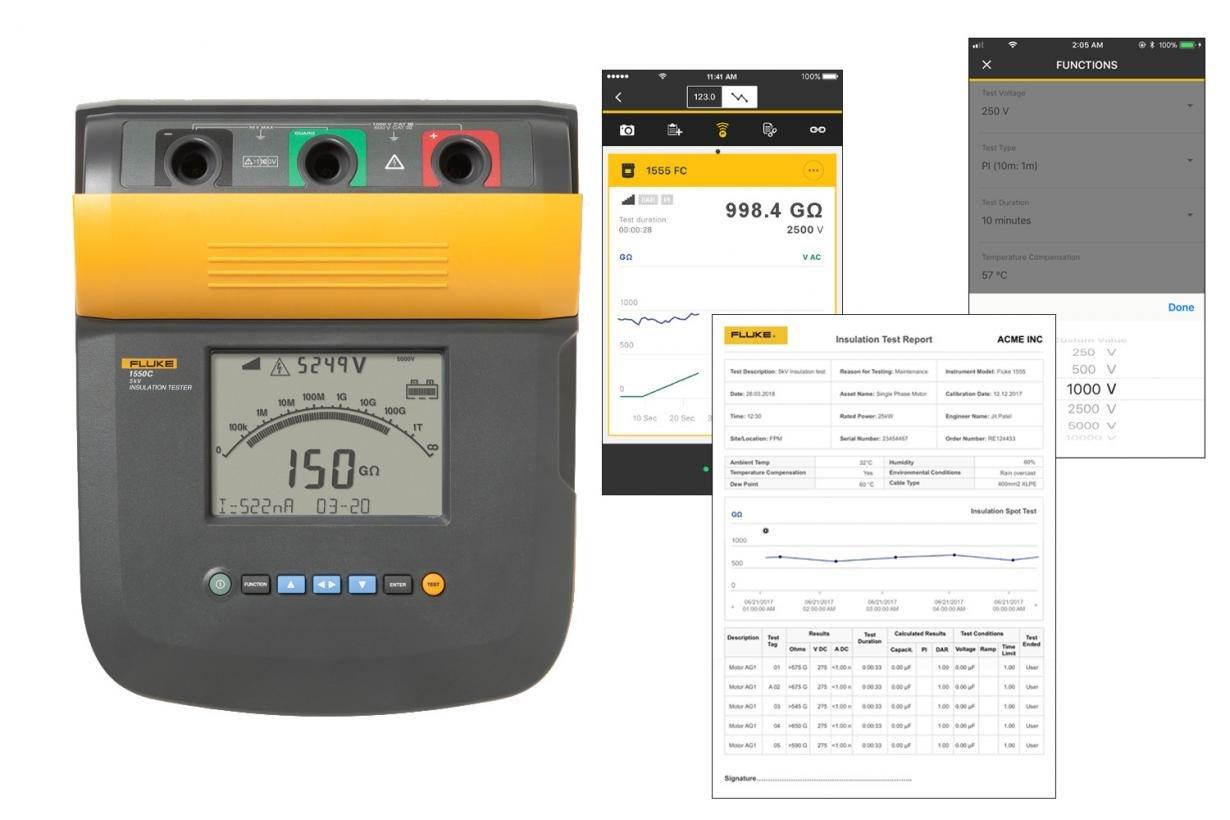

FLUKE-1550C/KIT FLUKE 5KV INSULATION TESTER KIT 3665127

Mouse over image to zoom, click to enlarge

  • FLUKE-1550C/KIT FLUKE 5KV INSULATION TESTER KIT 3665127
  • FLUKE-1550C/KIT FLUKE 5KV INSULATION TESTER KIT 3665127
  • FLUKE-1550C/KIT FLUKE 5KV INSULATION TESTER KIT 3665127

Description: Fluke® Insulation Resistance Tester Kit, Specifications: CAT III 1000 V, CAT IV 600 V, 10000 VAC, 200 kOhm to 2 Ohm, 75 x 105 mm Display, Buttons/Plug-In Interface, 5 Piece, Plastic, 13 x 9.5 x 6.7 in Dimensions

Manufacturer PN: FLUKE-1550C/KIT

UPC:  09596955098

Kendall Electric Inc PN: 2798163

Invoice Description:

FLUKE-1550C/KIT FLUKE 5KV INSULATION TESTER KIT 3665127


SPEC SHEET

▸ See All in Test Equipment Combo Kits


How Can We Make This Page Better?

Fluke® FLUKE-1550C/KIT Insulation Resistance Tester Kit, 5 Pieces, Plastic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Fluke® insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 years warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1550C is the perfect tool for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
Fluke® Insulation Resistance Tester Kit, Specifications: CAT III 1000 V, CAT IV 600 V, 10000 VAC, 200 kOhm to 2 Ohm, 75 x 105 mm Display, Buttons/Plug-In Interface, 5 Piece, Plastic, 13 x 9.5 x 6.7 in Dimensions

Specifications

 Application For validate general circuits, such as switchgear, motors and cables
 Brand Name Fluke
 Dimensions 13 x 9.5 x 6.7 in
 Includes Test Cables with Alligator Clips (Red, Black, Green), Infrared Adapter with Interface Cable, Fluke® View® Forms Basic CD-ROM, AC Power Cord, Soft Carrying Case, English Manual, User's Manual On CD-ROM, Quick Reference Card, Software License Agreement, Registration Card, Fluke® View® Forms Installation Guide and USB-IR Cable Installation Guide
 Manufacturer Part Number FLUKE-1550C/KIT
 Material Plastic
 Number of Pieces 5
 Specifications CAT III 1000 V, CAT IV 600 V, 10000 VAC, 200 kOhm to 2 Ohm, 75 x 105 mm Display, Buttons/Plug-In Interface
 Standards/Approvals CE Marking|CSA Certified|ECCN: 3A992|IEC 61010-1|IEC 61010-2-030|IEC 61557-1|IEC 61557-2|N10140 Certified|TUV Approved

Features

▪ 2 deg pollution, -20 to 50 deg C temperature rating, IP rating IP40
▪ +/-(15% 2 V) V accuracy, 12 V lead - acid rechargeable battery, Yuasa NP2.8 - 12
▪ Button or plug-in interface
▪ Hard plastic enclosure
▪ Digital insulation testing up to 10 kV
▪ Redesigned Fluke® 1550C insulation resistance tester, offers digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators
▪ Long battery life gives the user over 750 tests between charges
▪ Automatic calculation of dielectric absorption (DAR) and polarization index (PI) with no additional setup
▪ Ramp function for breakdown testing
▪ Timer settings up to 99 min for timed tests
▪ Guard system eliminates the effect of surface leakage current on high resistance measurements
▪ Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
▪ 75 x 105 mm LCD, digital LCD/analog display
