Fluke

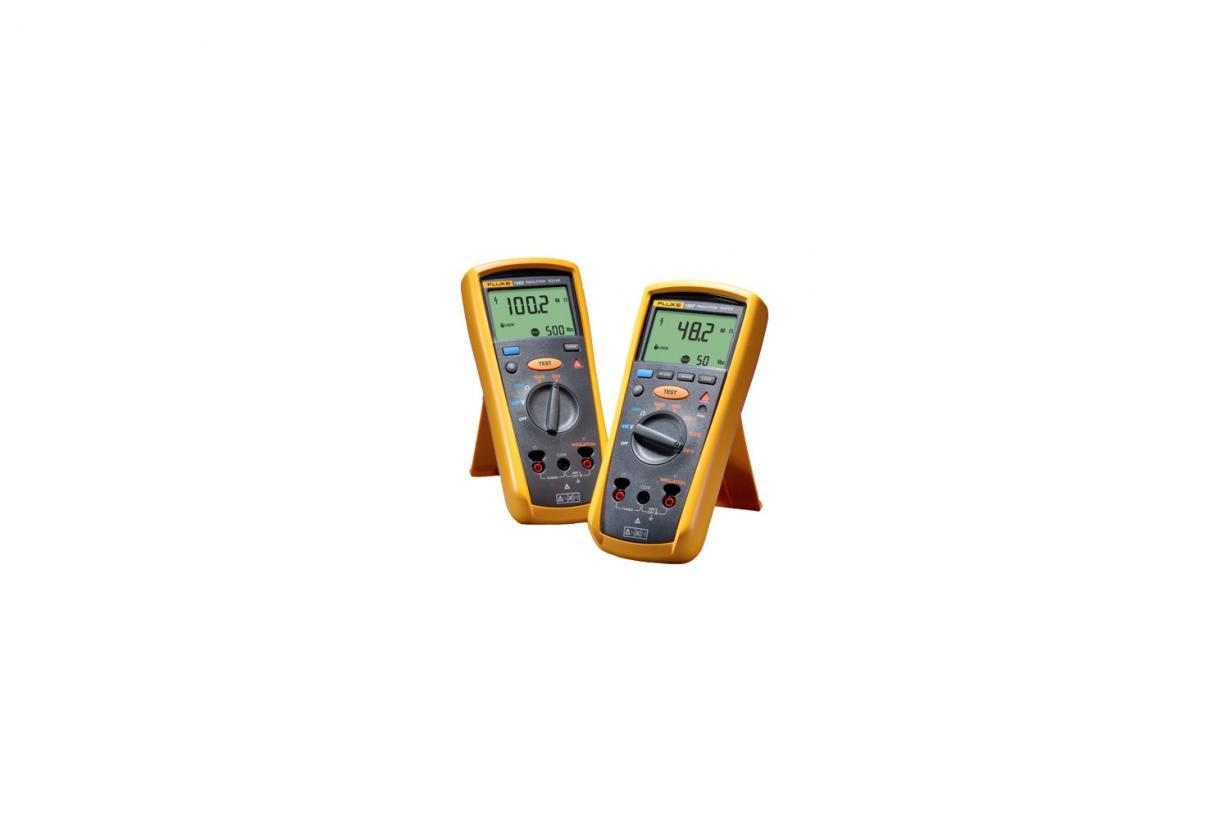

FLUKE-1503 FLK INSULATION TESTER 5065990

Mouse over image to zoom, click to enlarge

  • FLUKE-1503 FLK INSULATION TESTER 5065990
  • FLUKE-1503 FLK INSULATION TESTER 5065990

Description: Fluke® Insulation Resistance Tester, 600 V AC/DC, 200 mA, 50 to 400 Hz Frequency Response, 01 Ohm to 20 kOhm Resistance, 0.01 Ohm to 20 kOhm Resistance, +/-2% +3 Accuracy, 0.1 V Resolution, Graphic to Backlight Display, Safety Rating: Cat IV 600 V, AA Alkaline Battery Power Source, Button/Switch/Plug-In Interface, IP40 Enclosure, 8 in L x 4 in W x 2 in H Dimensions

Manufacturer PN: FLUKE-1503

UPC:  09596928866

Kendall Electric Inc PN: 2433826

Invoice Description:

FLUKE-1503 FLK INSULATION TESTER 5065990


SPEC SHEET

▸ See All in Insulation Testers


How Can We Make This Page Better?

Fluke® FLUKE-1503 Insulation Resistance Tester, 600 V AC/DC, 0.01 Ohm to 20 kOhm, +/-2% +3 Accuracy, Graphic to Backlight Display, Cat IV 600 V

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Overview features specifications models and accessories more info the Fluke® 1507 and 1503 insulation testers are compact, rugged, reliable and easy to use. With their multiple test voltages, they are ideal for many troubleshooting commissioning and preventative maintenance applications.
Fluke® Insulation Resistance Tester, 600 V AC/DC, 200 mA, 50 to 400 Hz Frequency Response, 01 Ohm to 20 kOhm Resistance, 0.01 Ohm to 20 kOhm Resistance, +/-2% +3 Accuracy, 0.1 V Resolution, Graphic to Backlight Display, Safety Rating: Cat IV 600 V, AA Alkaline Battery Power Source, Button/Switch/Plug-In Interface, IP40 Enclosure, 8 in L x 4 in W x 2 in H Dimensions

Specifications

 Accuracy +/-2% +3
 Amperage Rating 200 mA
 Application For troubleshooting, commissioning and preventative maintenance
 Brand Name Fluke
 Dimensions 8 in L x 4 in W x 2 in H
 Enclosure IP40
 Frequency Response 50 to 400 Hz
 Includes TL224 Test Leads, TP74 Test Probes, Clips PN 1958654 (Red) and PN 1958646 (Black), Holster and Remote Probe
 Interface Button/Switch/Plug-In
 Manufacturer Part Number FLUKE-1503
 PART NUMBER KEYWORDS FLUKE-1503 ; FLUKE1503 ; 2427883 ; 095969288668 ; 95969288668 ; 09596928866 ; 00095969288668
 Power Source AA Alkaline Battery
 Resistance 0.01 Ohm to 20 kOhm
 Resistance Range 01 Ohm to 20 kOhm
 Standards/Approvals ANSI/ISA 82.02.01 (61010-1) 2004|CSA/CAN C22.2 No. 61010.1-04|ECCN 3A992|IEC/EN 61010-1|TUV Approved
 Voltage Rating 600 V AC/DC

Features

▪ Fluke® 1503 insulation tester is compact, rugged, reliable and easy to use
▪ With its multiple test voltages, it is ideal for many troubleshooting commissioning and preventative maintenance applications
▪ Additional features, such as the remote probe on this tool, saves both time and money when performing tests
▪ Insulation test range 0.1 to 2000 MOhm
▪ Insulation test voltages 500 VAC, 1000 VAC
▪ Remote test probe
▪ -20 to 55 deg C temperature
