| ▪ Accuracy - 1 frequency is specified up to 99.99 kHz in volts and up to 10 kHz in a |
| ▪ 1.0 % + 3 accuracy for 45 to 500 Hz, 2% + 3 accuracy for 500 to 1 kHz at 600 mV/6/60/600/1000 VAC, 0.09% + 2 accuracy at 600 mV/6/60/600 VDC, 0.15% + 2 accuracy at 1000 VDC |
| ▪ Communicate with your iOS (4S and later) and Android™ (4.3 and up) devices with the new Fluke® connect mobile application |

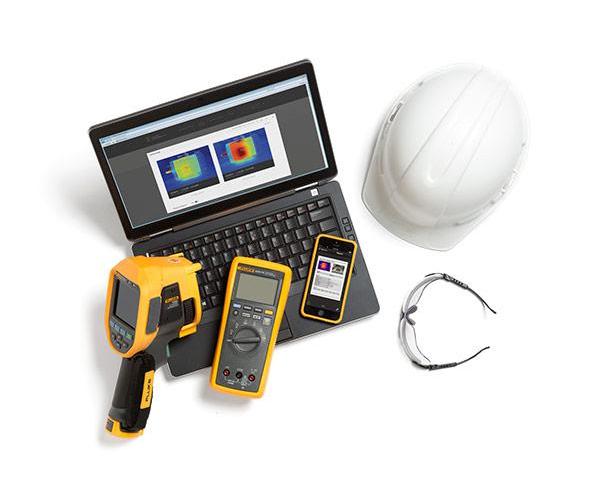

| ▪ Wireless technology allows connectivity between your phone, PC and all Fluke® connect enabled test tools |
| ▪ Let your team see what you see in an instant with ShareLive™ video call |
| ▪ Save money and time by taking multiple measurements simultaneously |
| ▪ Isolate intermittent events or record signal fluctuations without even being there using the log function on the modules |

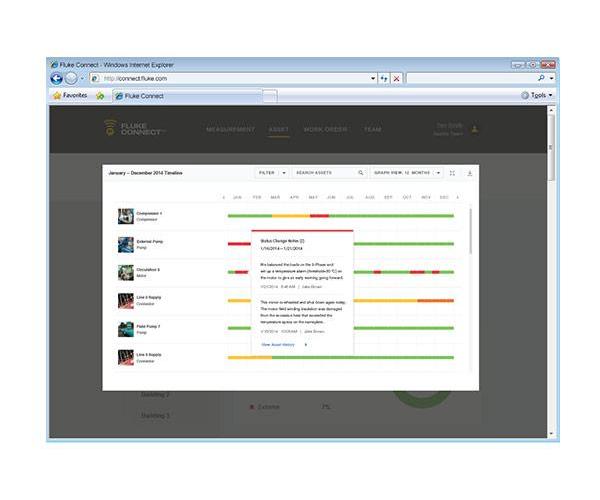

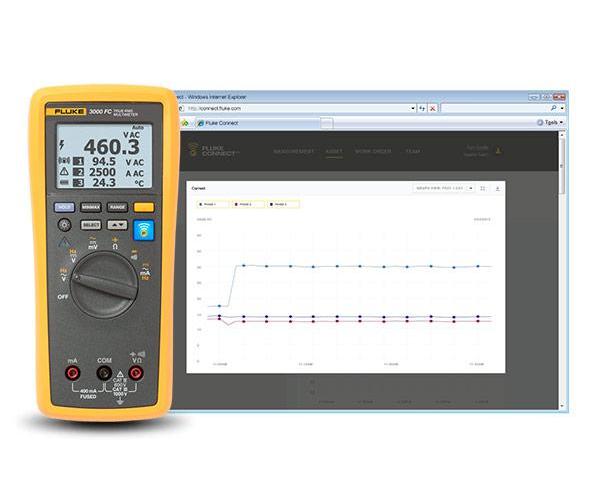

| ▪ View results on your computer with the PC adapter |
| ▪ Work with fewer interruptions by recording multiple sessions before downloading |
| ▪ Data is saved to a PC in csv format (comma separated variable) file format for easy viewing at your convenience |
| ▪ Capture readings at different intervals, with user set recording intervals from one second to one hour |
| ▪ 99.99 Hz frequency |
| ▪ 99.99 Hz/0.01 Hz 999.9 Hz/0.1 Hz 9.999 kHz/0.001 kHz 99.99 kHz/0.01 kHz range/resolution |
| ▪ Hard plastic enclosure |
| ▪ 600 mA for 2 m max, 10 m rest min overload |
| ▪ 50 MOhm resistance |
| ▪ +/-12 counts for changes >350 mS in duration DC functions |
| ▪ +/-40 counts for changes >900 ms in duration AC functions |
| ▪ 1.87 in H x 3.68 in W |
| ▪ 44/100 A, 1000 V fast overload protection fuse |
