Fluke

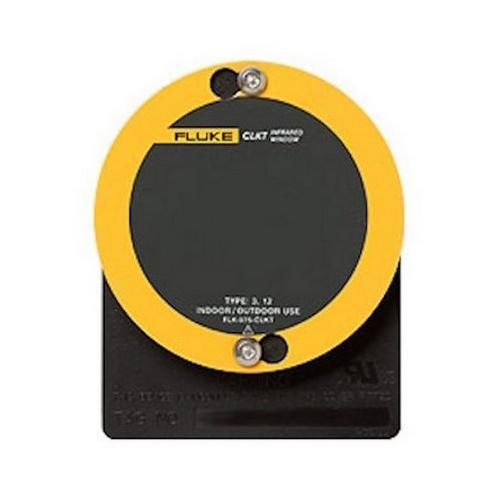

FLK-100-CLKT HAWK FLUKE 4 IN (100MM) C-RANGE IR WINDOW, KWIK TWIST

Mouse over image to zoom, click to enlarge

  • FLK-100-CLKT HAWK FLUKE 4 IN (100MM) C-RANGE IR WINDOW, KWIK TWIST
  • FLK-100-CLKT HAWK FLUKE 4 IN (100MM) C-RANGE IR WINDOW, KWIK TWIST

Description: Fluke® ClirVu® Infrared Window, C-Range, Series: CLKT, 1.97 in Crystal Insert, 2 mm Window Thickness, 89 mm Dia Viewing Aperture Size, 6322 sq-mm Viewing Aperture Area, Coated

Manufacturer PN: FLK-100-CLKT

UPC:  09596949590

Kendall Electric Inc PN: 2764033

Invoice Description:

FLK-100-CLKT HAWK FLUKE 4 IN (100MM) C-RANGE IR WINDOW, KWIK TWIST


SPEC SHEET

▸ See All in Infrared Windows


How Can We Make This Page Better?

Fluke® ClirVu® FLK-100-CLKT C-Range Infrared Window With Kwik Twist, 1.97 in Crystal Insert, 2 mm THK Window

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Once you've installed a Fluke® infrared window there is no more need to power down or remove panel doors you may never have to open the panel door again. Inspections are now conducted quickly, easily and safer than they were before. Your greatest investment is not what's behind the panel door; your priority is to offer the ultimate protection for the electricians, engineers and inspectors who risk their lives every day doing their jobs.
Fluke® ClirVu® Infrared Window, C-Range, Series: CLKT, 1.97 in Crystal Insert, 2 mm Window Thickness, 89 mm Dia Viewing Aperture Size, 6322 sq-mm Viewing Aperture Area, Coated

Specifications

 Application Indoor and Outdoor Applications
 Brand Name Fluke
 Crystal Insert Size 1.97 in
 Finish Coated
 Includes Silicone Gasket
 Manufacturer Part Number FLK-100-CLKT
 Series CLKT
 Standards/Approvals LSF Compliant|UL 50|UL Listed|CSA Certified|ANSI C37.20.7|EEMACS 14-1|IEC 62271|IEC60068-2-6|IEC60068-2-3
 Type C-Range
 Viewing Aperture Area 6322 sq-mm
 Viewing Aperture Size 89 mm Dia
 Window Thickness 2 mm

Features

▪ Glow wire test 650 deg C
▪ Cyclic humidity and vibration withstand
▪ Each CLKT infrared window is engineered and tested to withstand electric arcs up to 50 kA for 30 cycles
▪ The ClirVu® coating exclusive to Fluke® infrared windows - seals the optic prior to assembly to protect against moisture degradation making it perfect for very hot and very cold outdoor environments
▪ Each Fluke® infrared window is delivered with an identification plate attached for unique, on-site numbering for rapid location confirmation and faster repairs
▪ CLKT infrared windows come complete with a security access key, installation instructions and self adhesive drilling template
▪ Shortwave, midwave, longwave IR, ultraviolet (UV), visual, fusion capable
▪ Kwik twist aluminum cover
▪ Up to 11 kV marine switchgear
▪ Resistance of insulating materials to 100 deg
▪ Resistance of insulating material to ball pressure (Brinell)
