3M
FIP 1-STEP 3M 7100020738 FIRE BARRIER RATED FOAM-1/CA 6/case 7100020738

Mouse over image to zoom, click to enlarge

  • FIP 1-STEP 3M 7100020738 FIRE BARRIER RATED FOAM-1/CA 6/case 7100020738
  • FIP 1-STEP 3M 7100020738 FIRE BARRIER RATED FOAM-1/CA 6/case 7100020738

Description: 3M™, 7100020738, Rated Foam, Cartridge Container, 12.85 fl-oz Container, Urethane, Maroon

Manufacturer PN: 7100020738

UPC:  05111554925

Kendall Electric Inc PN: 3273313

Invoice Description:

FIP 1-STEP 3M 7100020738 FIRE BARRIER RATED FOAM-1/CA 6/case 7100020738


SPEC SHEET

▸ See All in Firefighting Foams


How Can We Make This Page Better?

3M™ 7100020738 Rated Foam, Cartridge Container, Urethane, Maroon

Log In for Pricing and Availability




Description

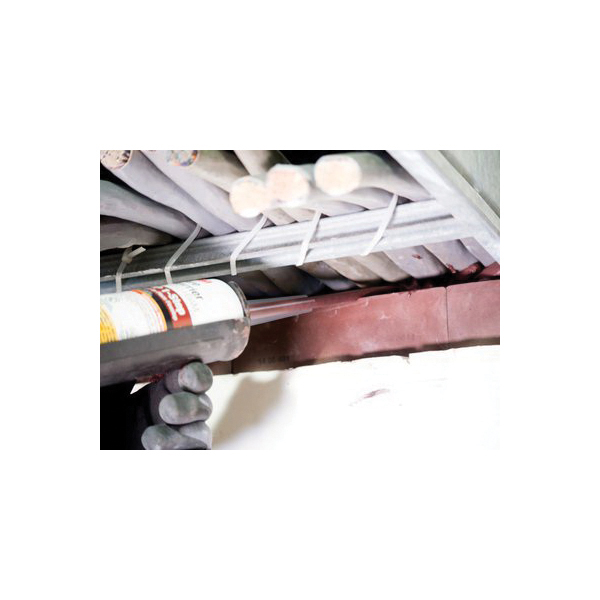

Designed to expand up to 5 times in volume after dispensing, 3M™ Fire Barrier Rated Foam FIP 1-Step is a two-part urethane, smoke, sound and firestopping foam. This intumescent foam can be used to fill the annular space created by pipes and cables penetrating through fire-rated construction. It's an alternative to mineral wool and sealant, bricks, pillows and runny, ineffective foams and is UL listed.
3M™, 7100020738, Rated Foam, Cartridge Container, 12.85 fl-oz Container, Urethane, Maroon

Specifications

 Applicable Materials Blank Openings, Metal Pipe, Cables, Cable Tray, Insulated Pipe and Combination Penetrations
 Application For Commercial Construction
 Brand Name 3M
 Color Maroon
 Curing Time 2 min
 Flash Point Part B: >=220 deg C
 Manufacturer Part Number 7100020738
 Material Urethane
 Odor Scent Earthy
 PART NUMBER KEYWORDS 7100020738 ; 00051115549250
 Specific Gravity Part A: 1.3, Part B: 1.2
 Standards/Approvals UL 1479|CAN/ULC-S115|ASTM E814
 Temperature Rating 50 to 120 deg F
 VOC Content Part A: <10 g/L, Part B: <1 g/L
 Viscosity Rating Part A: 250 to 350 mPa-s, Part B: 600 to 700 mPa-s
 pH Range Part A: 6 to 8

Features

▪ STC RATED - Has an STC rating of 57 when tested in a STC 57-rated wall assembly
▪ VOLUME EXPANDING PROPERTIES - Two-part urethane, smoke, sound and firestopping foam designed to expand up to 5 times in volume after dispensing
▪ EASILY RE-ENTERABLE - Specially formulated re-enterable and repairable foam remains pliable after installation
▪ PRIMER PAINT READY - Sealant is paintable with primer
▪ Excellent adhesion and does not require backing material in wall or floor applications
