Eaton

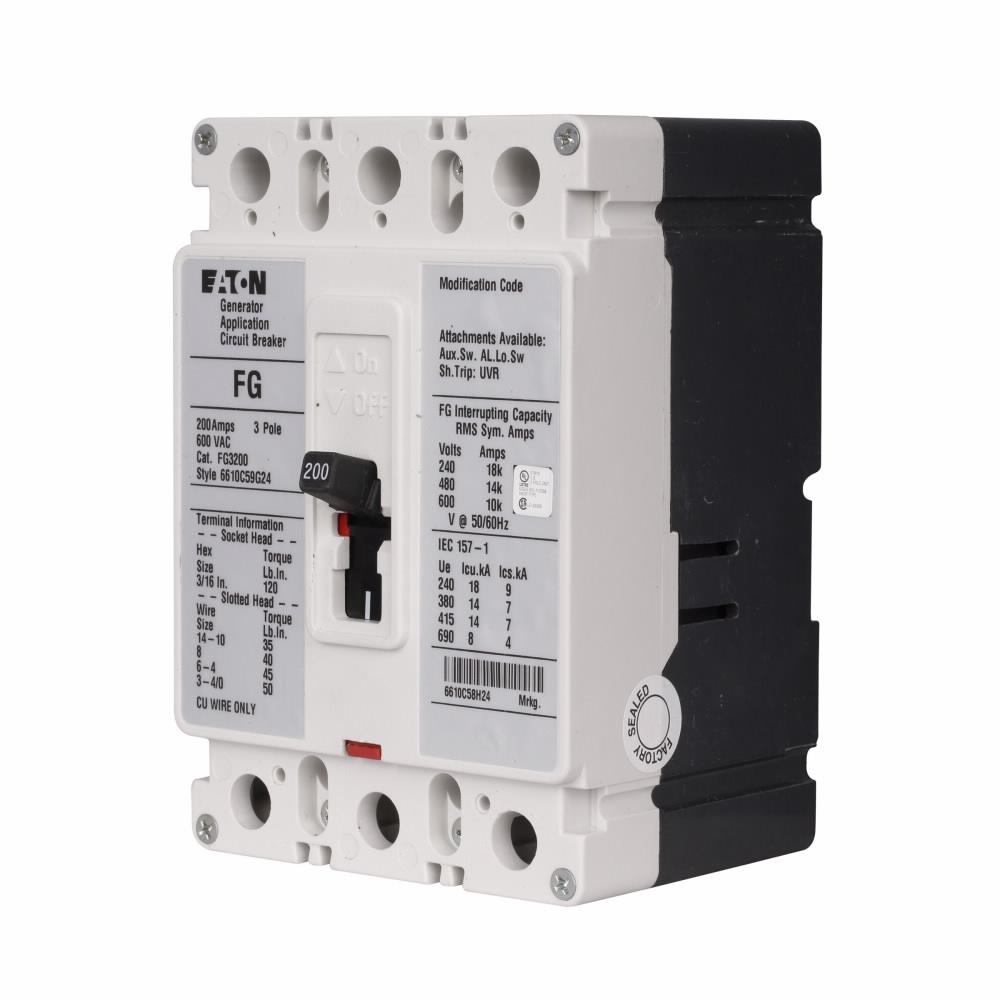

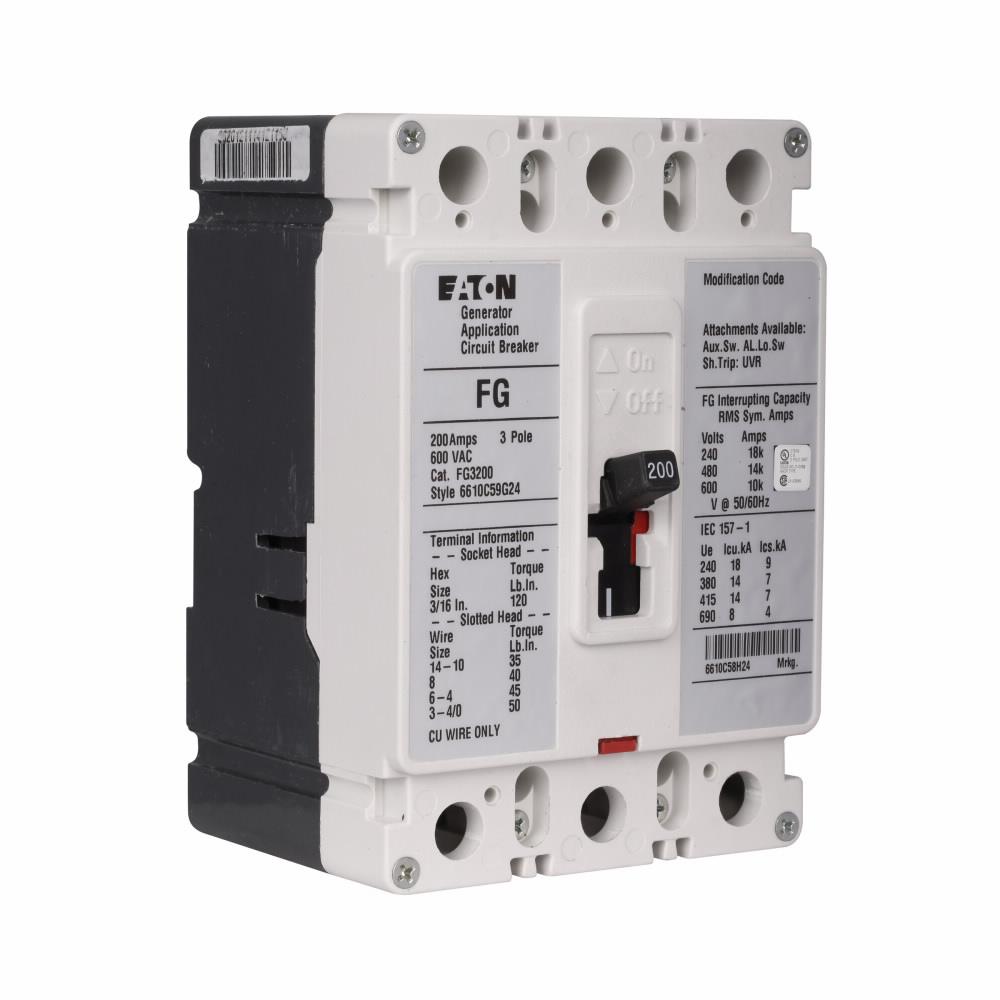

FG3200 CH FG BREAKER LINE AND LOAD TERMINALS

Mouse over image to zoom, click to enlarge

  • FG3200 CH FG BREAKER LINE AND LOAD TERMINALS
  • FG3200 CH FG BREAKER LINE AND LOAD TERMINALS
  • FG3200 CH FG BREAKER LINE AND LOAD TERMINALS

Description: EATON Molded Case Circuit Breaker, Type FG Engine Generator, Series: C Series, 600 V AC, 200 A, 144 kW Power, 60 Hz Frequency, 14/18 kA Interrupt, F Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Line/Load Connection, NEMA AB1-1993 Enclosure, 7.7 x 4.9 x 4.9 in Dimensions

Manufacturer PN: FG3200

UPC:  78211441529

Kendall Electric Inc PN: 3794456

Invoice Description:

FG3200 CH FG BREAKER LINE AND LOAD TERMINALS


SPEC SHEET

▸ See All in Breaker Terminals


How Can We Make This Page Better?

EATON FG3200 C Series Type FG Engine Generator Molded Case Circuit Breaker, 600 V AC, 200 A, 14/18 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Users appreciate the custom design and compact footprint of the Eaton Engine Generator molded case circuit breaker. This circuit breaker is specifically created for generators as well as portable and temporary power applications where lower interrupting currents are common. The patented designed trip units protect generator circuits from damaging current levels, in a compact footprint. Eaton maintains global certifications and is a component leader for engine generator applications.
EATON Molded Case Circuit Breaker, Type FG Engine Generator, Series: C Series, 600 V AC, 200 A, 144 kW Power, 60 Hz Frequency, 14/18 kA Interrupt, F Frame, Thermal Magnetic Trip, 3 Pole, 3 ph, Line/Load Connection, NEMA AB1-1993 Enclosure, 7.7 x 4.9 x 4.9 in Dimensions

Specifications

 Amperage Rating 200 A
 Application Electrical Assemblies, Panels, EOEMs, Commercial, Institutional Buildings, Structures, Reverse Feed Applications
 Brand Name EATON
 Connection Type Line/Load
 Dimensions 7.7 x 4.9 x 4.9 in
 Enclosure NEMA AB1-1993
 Frame F
 Frequency Rating 60 Hz
 Manufacturer Part Number FG3200
 Number of Poles 3
 PART NUMBER KEYWORDS FG3200 ; 7404238 ; 782114415290 ; 78211441529 ; 00782114415290
 Phase 3
 Power Rating 144 kW
 Series C Series
 Standards/Approvals AS 2184|BS 4752|CSA C22.2 No. 5|IEC 60947-2|MIL-DTL-1736|MIL-DTL-17361|QPL 17361|SABS 156|SEV 157-1|UL 489 File No. E7819|VDE 0660
 Type Type FG Engine Generator
 Video Links
 Voltage Rating 600 V AC

Features

▪ Patented contact design features high speed "blow-open" action, resulting in superior performance
▪ 18 kA at 240 VAC, 14 kA at 480 VAC interrupt rating
