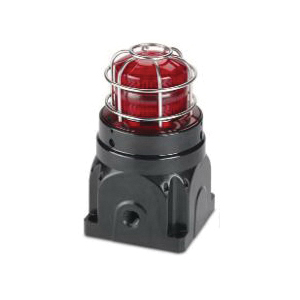

FEDERAL SIGNAL G-STR-120-D-R-15J GLOBAL STROBE LIGHT EX D 120VAC 15J RED

Mouse over image to zoom, click to enlarge

  • FEDERAL SIGNAL G-STR-120-D-R-15J GLOBAL STROBE LIGHT EX D 120VAC 15J RED
  • FEDERAL SIGNAL G-STR-120-D-R-15J GLOBAL STROBE LIGHT EX D 120VAC 15J RED

Description: Federal Signal Strobe Beacon, Custom Configured Flameproof, Series: G-STR-15J/Global Series®, 120 V AC, 0.33 A, Xenon Lamp, Red, Flashing Flash, 300 cd, 10000 hr Average Life, Surface Mount, NEMA 4X/IP66/IP69K, -67 to 158 deg F, UL/cUL Listed, ATEX Rated, IECEx Rated Specifications Met, Glass Reinforced Polyester Housing, 8.95 in H x 5.22 in W x 5.22 in D

Manufacturer PN: G-STR-120-D-R-15J

UPC:  78297924222

Kendall Electric Inc PN: 4364206

Invoice Description:

FEDERAL SIGNAL G-STR-120-D-R-15J GLOBAL STROBE LIGHT EX D 120VAC 15J RED


SPEC SHEET

▸ See All in Strobe Beacons


How Can We Make This Page Better?

Federal Signal G-STR-120-D-R-15J Global Series® Custom Configured Flameproof Strobe Beacon, 120 V AC, Xenon Lamp, Red, Surface Mounting, UL/cUL Listed, ATEX Rated, IECEx Rated, NEMA 4X/IP66/IP69K

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Federal Signal patent pending G-Series strobes feature a high intensity xenon strobe tube operated at 15 J. The housing is made from non-metallic materials designed to serve the demanding needs of offshore marine and land based industrial applications and can dramatically reduce the cost of long-term maintenance. The flameproof "Ex d" versions come standard with two (2) M20 entries. The increased safety "Ex de" versions include a separate terminal chamber for quick field termination or pass-through wiring and include three (3) M20 entries in a standard configuration. The G-Series strobe can be combined with all other G-Series audible and visual products in several custom configurations. Custom configurations can be ordered directly from the factory. Optional coupling kits, which allow limited field fixturing are available.
Federal Signal Strobe Beacon, Custom Configured Flameproof, Series: G-STR-15J/Global Series®, 120 V AC, 0.33 A, Xenon Lamp, Red, Flashing Flash, 300 cd, 10000 hr Average Life, Surface Mount, NEMA 4X/IP66/IP69K, -67 to 158 deg F, UL/cUL Listed, ATEX Rated, IECEx Rated Specifications Met, Glass Reinforced Polyester Housing, 8.95 in H x 5.22 in W x 5.22 in D

Specifications

 Amperage Rating 0.33 A
 Application Alarm Control Panel, Indoor/Outdoor and Hazardous Applications
 Average Life 10000 hr
 Brand Name Federal Signal
 Color Red
 Dimensions 8.95 in H x 5.22 in W x 5.22 in D
 Flash Type Flashing
 Housing Material Glass Reinforced Polyester
 Includes 6-Way Terminal Block with (2) M20x1.5 Cable Entry and Dome Guard
 Lamp Type Xenon
 Light Output 300 cd
 Manufacturer Part Number G-STR-120-D-R-15J
 Mounting Type Surface
 NEMA Rating NEMA 4X/IP66/IP69K
 PART NUMBER KEYWORDS G-STR-120-D-R-15J ; GSTR120DR15J ; 782979242222 ; 78297924222 ; 00782979242222
 Series G-STR-15J/Global Series®
 Specifications Met UL/cUL Listed, ATEX Rated, IECEx Rated
 Temperature Rating -67 to 158 deg F
 Type Custom Configured Flameproof
 Voltage Rating 120 V AC

Features

▪ Non-metallic corrosion-resistant design
▪ Internationally certified modular product line with endless configurations
