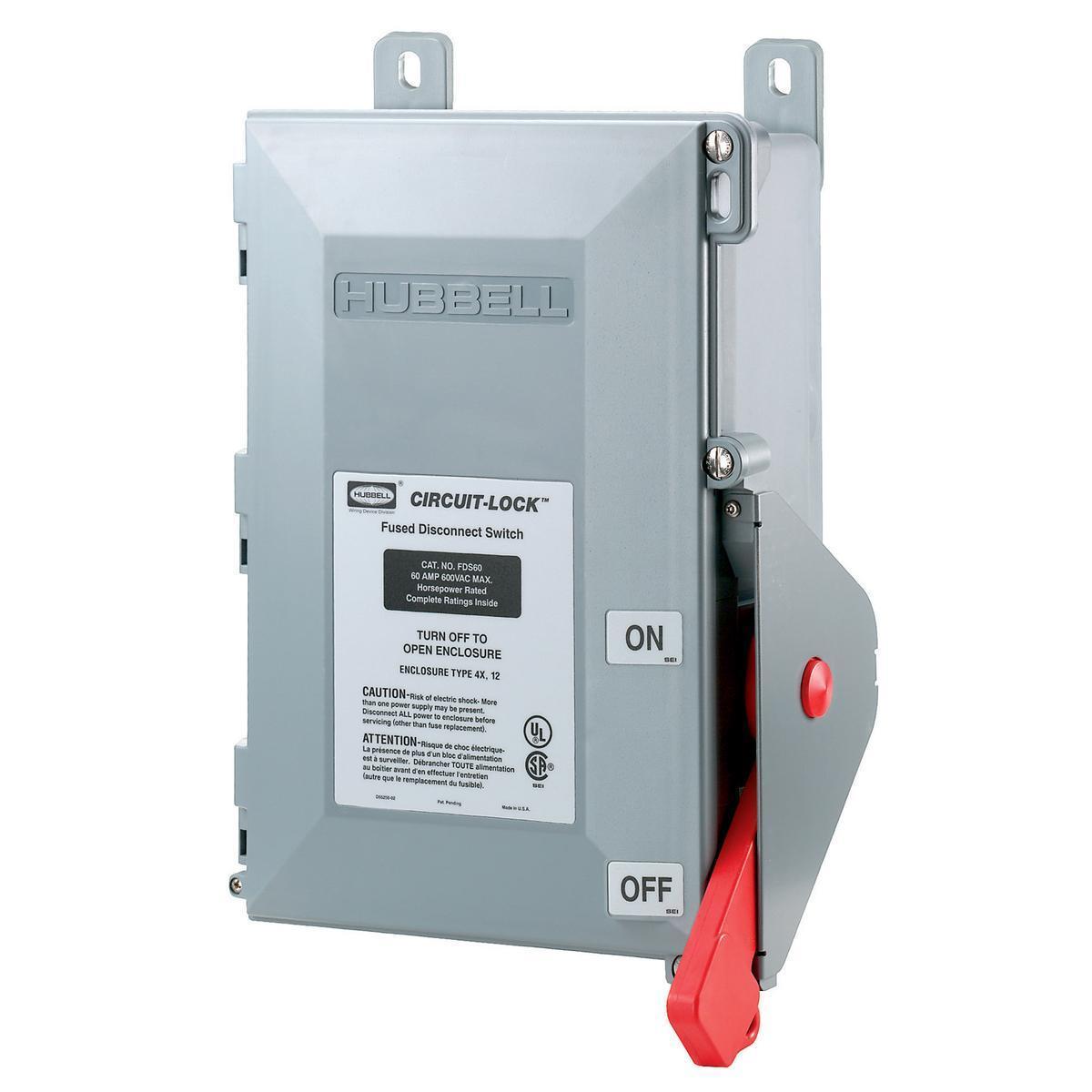

FDS60 HUB 3 POLE 60A FUSED DISCONNECT SWITCH 78358551960

Mouse over image to zoom, click to enlarge

  • FDS60 HUB 3 POLE 60A FUSED DISCONNECT SWITCH 78358551960
  • FDS60 HUB 3 POLE 60A FUSED DISCONNECT SWITCH 78358551960
  • FDS60 HUB 3 POLE 60A FUSED DISCONNECT SWITCH 78358551960

Description: Hubbell Wiring Device-Kellems Circuit-Lock® Disconnect Switch, Extra Heavy Duty Fused Non-Metallic Standard, 600 V AC, 60 A, 40 hp, 3 ph, 60 Hz Frequency, 3 Pole, Lever Actuator, NEMA 4/4X/12/IP66 Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 15.36 x 11.46 x 8.43 in, Composite, Gray

Manufacturer PN: FDS60

UPC:  78358551960

Kendall Electric Inc PN: 2124290

Invoice Description:

FDS60 HUB 3 POLE 60A FUSED DISCONNECT SWITCH 78358551960


SPEC SHEET

▸ See All in Hazardous Location Disconnect Switches


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Circuit-Lock® FDS60 Extra Heavy Duty Fused Non-Metallic Standard Disconnect Switch, 600 V AC, 60 A, 40 hp, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

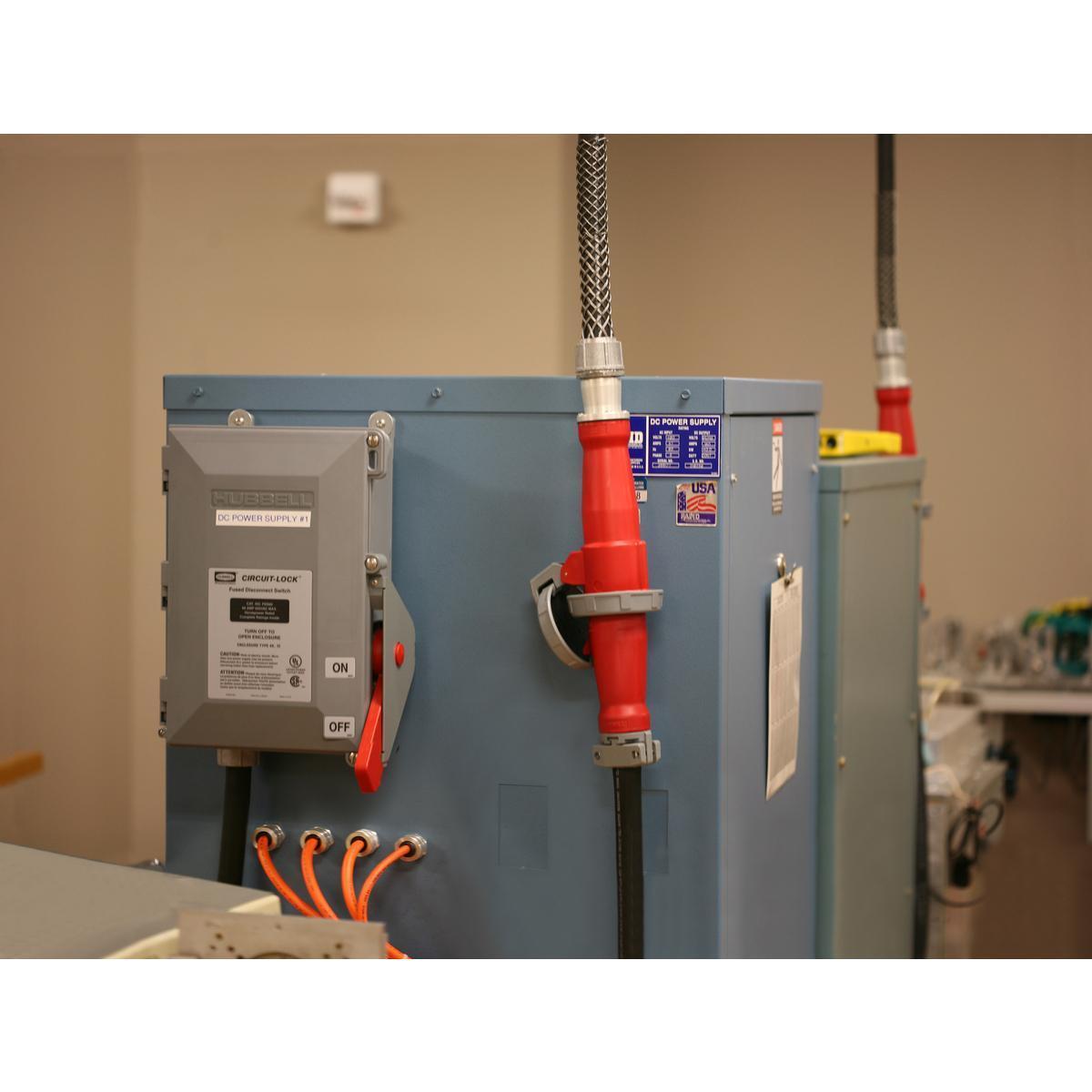

Hubbell Circuit-Lock® non-metallic disconnect switches comply with both the controller and disconnect requirements of the NEC®, making them ideal for meeting line of sight requirements in a variety of industrial environments. They feature a high visibility red handle that can be locked in the OFF position to comply with OSHA lockout/tagout regulations. For maximum reliability, the external stainless steel hardware and rugged enclosure resist abuse and corrosion, while a neoprene gasket ensures a watertight seal.
Hubbell Wiring Device-Kellems Circuit-Lock® Disconnect Switch, Extra Heavy Duty Fused Non-Metallic Standard, 600 V AC, 60 A, 40 hp, 3 ph, 60 Hz Frequency, 3 Pole, Lever Actuator, NEMA 4/4X/12/IP66 Enclosure, Foot Mounting, Screw Terminal, -40 to 75 deg C, 15.36 x 11.46 x 8.43 in, Composite, Gray

Specifications

 Actuator Type Lever
 Amperage Rating 60 A
 Application Industrial and Indoor Applications
 Brand Name Hubbell Premise Wiring
 Color Gray
 Dimensions 15.36 x 11.46 x 8.43 in
 Enclosure NEMA 4/4X/12/IP66
 Frequency Rating 60 Hz
 Horsepower 40 hp
 Manufacturer Part Number FDS60
 Material Composite
 Mounting Type Foot
 Number of Poles 3
 Phase 3
 Standards/Approvals RoHS Compliant|UL 746C|CSA/NSF Certified
 Temperature Rating -40 to 75 deg C
 Terminal Type Screw
 Type Extra Heavy Duty Fused Non-Metallic Standard
 Video Links
 Voltage Rating 600 V AC

Features

▪ Safety interlocked fuse access door
▪ Removable door for ease of wiring and installation
▪ Lockable high visibility red handle for OSHA Lockout/Tagout
