Eaton

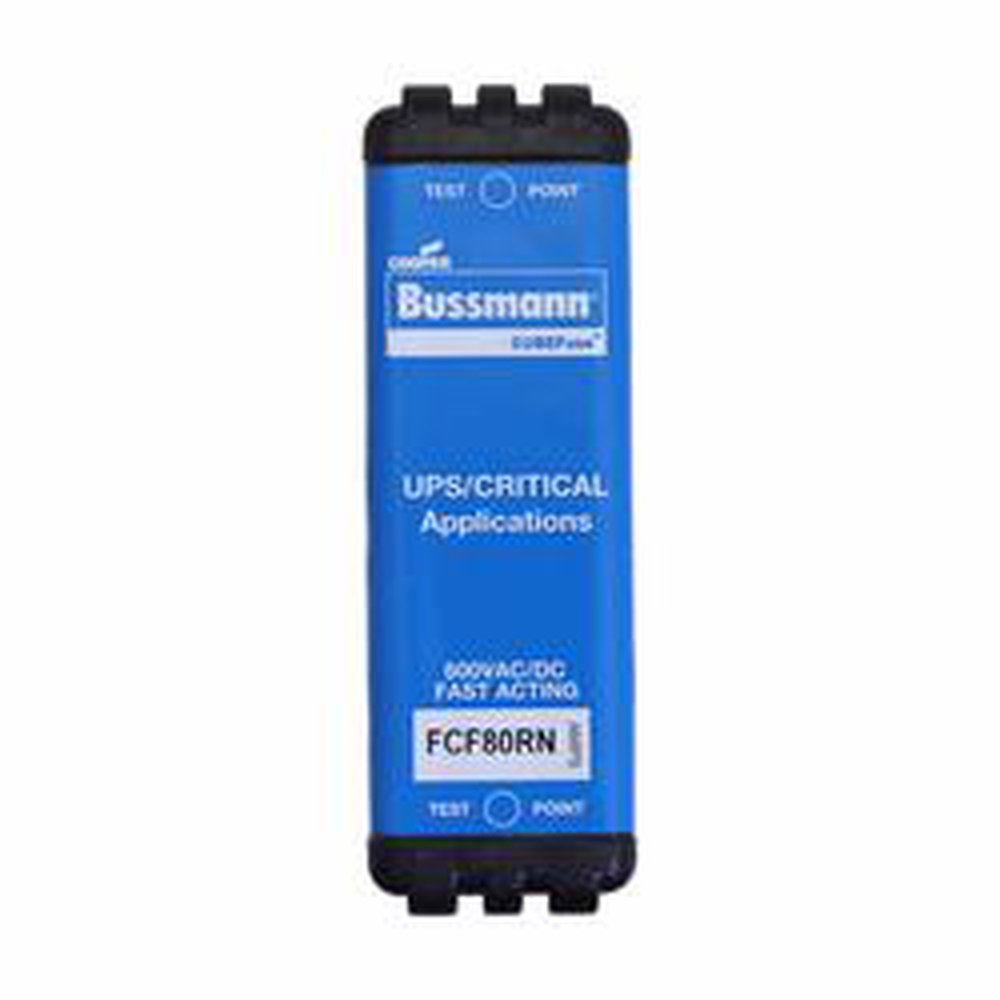

FCF80RN BUS FAST ACTING CUBEFUSE 80A NON-INDICATION

Mouse over image to zoom, click to enlarge

  • FCF80RN BUS FAST ACTING CUBEFUSE 80A NON-INDICATION
  • FCF80RN BUS FAST ACTING CUBEFUSE 80A NON-INDICATION
  • FCF80RN BUS FAST ACTING CUBEFUSE 80A NON-INDICATION
  • FCF80RN BUS FAST ACTING CUBEFUSE 80A NON-INDICATION
  • FCF80RN BUS FAST ACTING CUBEFUSE 80A NON-INDICATION

Description: Bussmann Cartridge Fuse, Fast Acting Non-Indicating, Series: FCF, 80 A, 600 V AC/DC, 50/200 kA Interrupt, Class: CF, 50/60 Hz, 8 min at 200% Response, Blade Terminal, Holder Mount, Square Blade Body Type, Single Element, Glass Filled Polyethersulfone, Black, 3.01 in L x 1 in W Body Size

Manufacturer PN: FCF80RN

UPC:  05171236255

Kendall Electric Inc PN: 3894583

Invoice Description:

FCF80RN BUS FAST ACTING CUBEFUSE 80A NON-INDICATION


SPEC SHEET

▸ See All in Cube Shaped Fuses


How Can We Make This Page Better?

Bussmann FCF80RN Fast Acting Non-Indicating Cartridge Fuse, 80 A, 600 V AC/DC, 50/200 kA Interrupt, Class: CF, Square Blade Body

Log In for Pricing and Availability




Description

The revolutionary BussmannTM series Low-PeakTM CUBEFuseTM delivers the smallest footprint compared to any Class CC, J or RK fuse solution — requiring up to 70 less space when combined with its unique fuse holder or UL 98 Listed Compact Circuit Protector switch. Freeing up space is powerful. And the CUBEFuse does just that, while packing up to a 300 kA interrupting rating and enabling higher equipment short-circuit current rating (SCCR). Available from 1 to 400 amps.
Bussmann Cartridge Fuse, Fast Acting Non-Indicating, Series: FCF, 80 A, 600 V AC/DC, 50/200 kA Interrupt, Class: CF, 50/60 Hz, 8 min at 200% Response, Blade Terminal, Holder Mount, Square Blade Body Type, Single Element, Glass Filled Polyethersulfone, Black, 3.01 in L x 1 in W Body Size

Specifications

 Amperage Rating 80 A
 Application Commercial/Institutional Buildings/structures, Power Distribution and Control and UPS, Safety and Security Systems, Stationary Machinery and Equipment Outside Factory
 Body Size 3.01 in L x 1 in W
 Body Type Square Blade
 Brand Name Bussmann
 Class CF
 Color Black
 Element Single
 Frequency Rating 50/60 Hz
 Manufacturer Part Number FCF80RN
 Material Glass Filled Polyethersulfone
 Mounting Type Holder
 PART NUMBER KEYWORDS FCF80RN ; 11280248 ; 051712362559 ; 51712362559 ; 05171236255 ; 00051712362559
 Response Time 8 min at 200%
 Series FCF
 Standards/Approvals UL Listed ,CSA Certified,CE Marked,RoHS Compliant
 Terminal Type Blade
 Type Fast Acting Non-Indicating
 Video Links
 Voltage Rating 600 V AC/DC

Features

▪ Finger safe
▪ Fuse Type: CUBEFuse™
▪ Terminal Material: Electroless Tin-Plated Copper Alloy
