Eaton

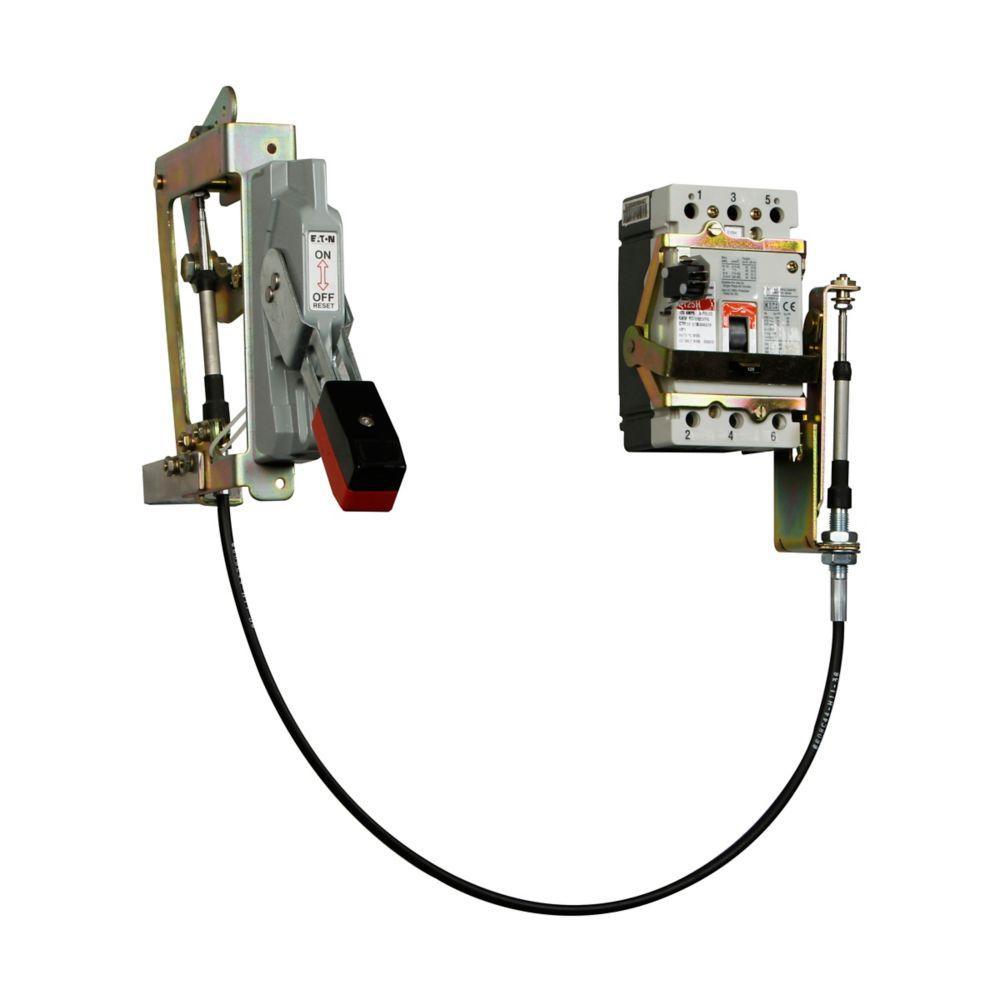

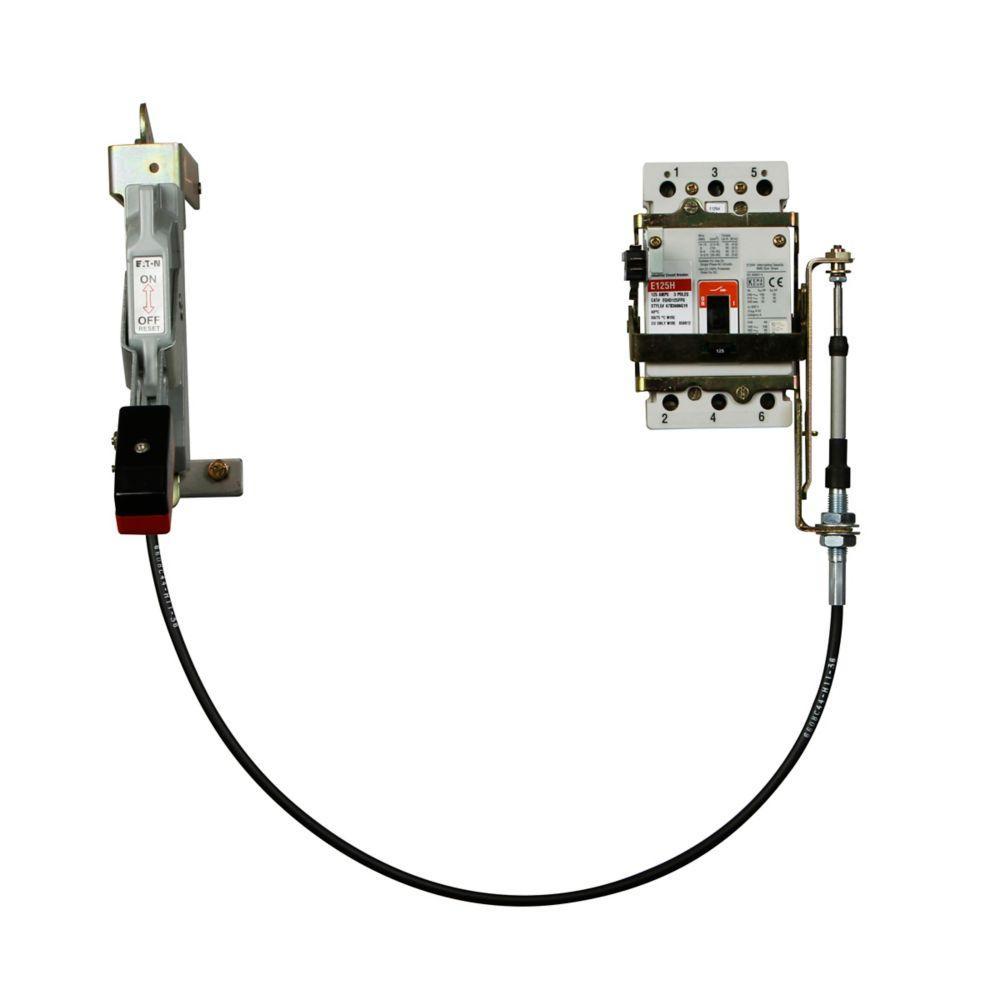

F5S06C C-H Flange Mounted Handle Mechanism 78211349044

Mouse over image to zoom, click to enlarge

  • F5S06C C-H Flange Mounted Handle Mechanism 78211349044
  • F5S06C C-H Flange Mounted Handle Mechanism 78211349044
  • F5S06C C-H Flange Mounted Handle Mechanism 78211349044

Description: EATON Handle Mechanism, Series: G Series, NEMA 1/3R/12, For Use With: G Series N-Frame Molded Case Circuit Breaker, Flexible Shaft Handle To Device Connection, 6 ft Shaft Length, 19 x 19 x 2-1/2 in Dimensions

Manufacturer PN: F5S06C

UPC:  78211349044

Kendall Electric Inc PN: 2579035

Invoice Description:

F5S06C C-H Flange Mounted Handle Mechanism 78211349044


SPEC SHEET

How Can We Make This Page Better?

EATON F5S06C G Series Handle Mechanism, NEMA 1/3R/12 NEMA Rating, For Use With G Series N-Frame Molded Case Circuit Breaker, Flexible Shaft Handle to Device Connection

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Series G Molded Case Circuit Breakers are designed for circuit protection needs across the globe. A complete line of user-friendly accessories and high performance interruption ratings meet a host of different application, industry, and regional requirements. Current ratings range from 15A to 2500A with voltages up to 690 Vac. Thermal magnetic and electronic trip units are available as well as residual ground fault and 30 mA earth leakage protection options.
EATON Handle Mechanism, Series: G Series, NEMA 1/3R/12, For Use With: G Series N-Frame Molded Case Circuit Breaker, Flexible Shaft Handle To Device Connection, 6 ft Shaft Length, 19 x 19 x 2-1/2 in Dimensions

Specifications

 Application Circuit Protection Applications
 Brand Name EATON
 Dimensions 19 x 19 x 2-1/2 in
 Handle to Device Connection Flexible Shaft
 Manufacturer Part Number F5S06C
 NEMA Rating NEMA 1/3R/12
 PART NUMBER KEYWORDS F5S06C ; 7333100 ; 782113490441 ; 78211349044 ; 00782113490441
 Series G Series
 Shaft Length 6 ft
 Standards/Approvals Contact Manufacturer
 Suitable For Use With G Series N-Frame Molded Case Circuit Breaker
 Video Links

Features

▪ Flex shaft handle can be remotely mounted from breaker, where an operator can use it by funneling the cable through conduit
▪ The flex shaft is an extra heavy duty mechanism that includes a flexible shaft in various lengths, 3 ft through 10 ft for use with various size enclosures
▪ The flex shaft handle will accept up to three padlock shackles, each with a maximum 3/8 in Dia
▪ Flex shaft comes preset from the factory, requiring only minor field adjustments on installation
▪ The flex shaft mechanism also takes up less interior enclosure space than competitive designs and the handle fits standard flange cutouts
▪ Flange mounted handle mechanisms mount on the flange of an enclosure door
