Eaton

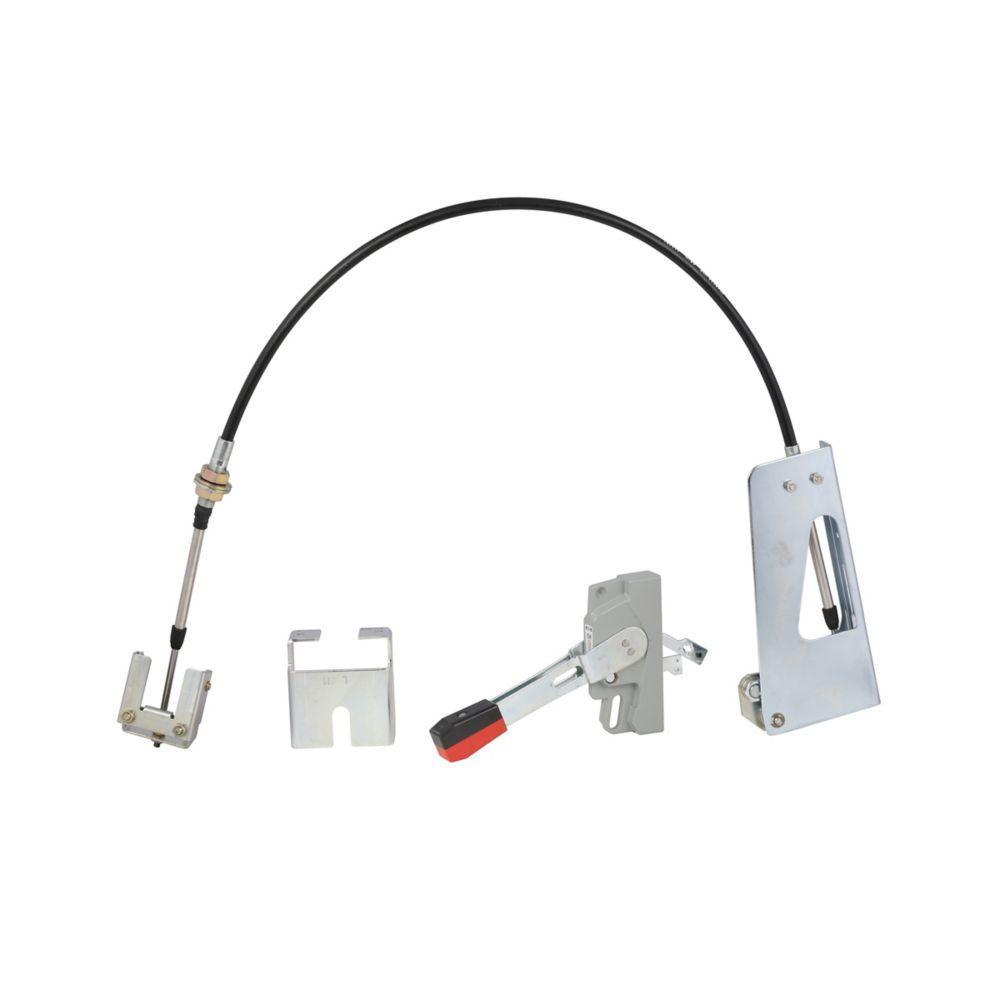

F4S05CX CH 60 ASSY/NEMA 4/4X, L & M CIRCUIT BREAKER C371 FLEX SHAFT PA

Mouse over image to zoom, click to enlarge

  • F4S05CX CH 60 ASSY/NEMA 4/4X, L & M CIRCUIT BREAKER C371 FLEX SHAFT PA
  • F4S05CX CH 60 ASSY/NEMA 4/4X, L & M CIRCUIT BREAKER C371 FLEX SHAFT PA

Description: EATON Handle Mechanism, Flexible Shaft Flange Mount, NEMA 4/4X, For Use With: C Series L, MDL Frame Molded Case Circuit Breaker, 5 in Shaft Length

Manufacturer PN: F4S05CX

UPC:  78211349059

Kendall Electric Inc PN: 3972030

Invoice Description:

F4S05CX CH 60 ASSY/NEMA 4/4X, L & M CIRCUIT BREAKER C371 FLEX SHAFT PA


SPEC SHEET

▸ See All in Disconnect Operating Mechanisms


How Can We Make This Page Better?

EATON F4S05CX Flexible Shaft Flange Mount Handle Mechanism, NEMA 4/4X, For Use With C Series L, MDL Frame Molded Case Circuit Breaker

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Flange mounted handle mechanisms mount on the flange of an enclosure door. The flex shaft is an extra heavy duty mechanism that includes a flexible shaft in various lengths, 3 ft through 10 ft for use with various size enclosures. The flex shaft handle will accept up to three padlock shackles, each with a maximum diameter of 3/8 in. It can be used with Type 12 fabricated enclosures. An optional handle is available for flex shaft that is suitable for use with Type 4 environments.
EATON Handle Mechanism, Flexible Shaft Flange Mount, NEMA 4/4X, For Use With: C Series L, MDL Frame Molded Case Circuit Breaker, 5 in Shaft Length

Specifications

 Brand Name EATON
 Manufacturer Part Number F4S05CX
 NEMA Rating NEMA 4/4X
 PART NUMBER KEYWORDS F4S05CX ; 7333221 ; 782113490595 ; 78211349059 ; 00782113490595
 Shaft Length 5 in
 Standards/Approvals Contact Manufacturer
 Suitable For Use With C Series L, MDL Frame Molded Case Circuit Breaker
 Type Flexible Shaft Flange Mount
