TPI Corporation

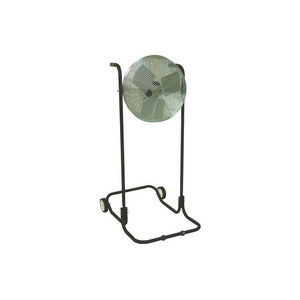

F24HTE TPI 24" INDUSTRIAL FLOOR FAN1/8 HP 3 SPEED HIGH STAND 68633485406

Mouse over image to zoom, click to enlarge

  • F24HTE TPI 24" INDUSTRIAL FLOOR FAN1/8 HP 3 SPEED HIGH STAND 68633485406
  • F24HTE TPI 24" INDUSTRIAL FLOOR FAN1/8 HP 3 SPEED HIGH STAND 68633485406

Description: TPI Workstation Floor Fan, 1-Phase Standard, 24 in Blade, 3600/5200/5850 cfm, 1200/1484/1634 rpm Speed, 1/8 hp Power, 120 VAC, 2.4 A, 3 Speed, Rotary Switch Control, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing Material, Surface Mounting, SJT 10 ft Cord, 53 in H x 30 in W x 27 in D Dimensions, Import

Manufacturer PN: F24HTE

UPC:  68633485406

Kendall Electric Inc PN: 2277836

Invoice Description:

F24HTE TPI 24" INDUSTRIAL FLOOR FAN1/8 HP 3 SPEED HIGH STAND 68633485406


SPEC SHEET

▸ See All in Floor & Table Fans


How Can We Make This Page Better?

TPI F24HTE 1-Phase Standard Workstation Floor Fan, 24 in Blade, 3600/5200/5850 cfm Flow Rate, 120 VAC, 2.4 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

TPI Workstation Floor Fan, 1-Phase Standard, 24 in Blade, 3600/5200/5850 cfm, 1200/1484/1634 rpm Speed, 1/8 hp Power, 120 VAC, 2.4 A, 3 Speed, Rotary Switch Control, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing Material, Surface Mounting, SJT 10 ft Cord, 53 in H x 30 in W x 27 in D Dimensions, Import

Specifications

 Amperage Rating 2.4 A
 Application Indoor-Industrial, Commercial and Residential Applications
 Blade Size 24 in
 Brand Name TPI
 Control Type Rotary Switch
 Cord Type SJT 10 ft
 Dimensions 53 in H x 30 in W x 27 in D
 Domestic or Import Import
 Flow Rate 3600/5200/5850 cfm
 Housing Material Steel
 Manufacturer Part Number F24HTE
 Motor Type AC
 Mounting Type Surface
 Number of Speeds 3
 Power Rating 8-Jan hp
 Speed 1200/1484/1634 rpm
 Standards/Approvals cETLus Listed|OSHA Compliant|PROP65: This product can expose you to chemicals including nickel which is known to the State of California to cause cancer, and chromium, which is known to the State of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.cs.gov
 Type 1-Phase Standard
 Voltage Rating 120 VAC

Features

▪ Floor mounting
▪ Head tilts 360 deg
▪ Coated steel guards
▪ SJT type 3 conductor, 10 ft L cord
▪ Steel hub/spider aluminum paddle blades
▪ Sleeve bearing, totally enclosed and permanently lubricated motor
▪ #42 motor frame
▪ 5/16 in Dia shaft
▪ 3500 cfm/150 sq-ft area velocity profile
▪ Flow rate is measured 2 ft from face of fan
