ABB
  • F2031 T&B STA-KON FERRULE INSUL PP 16 1.5 MM2 LG .57
  • F2031 T&B STA-KON FERRULE INSUL PP 16 1.5 MM2 LG .57
  • F2031 T&B STA-KON FERRULE INSUL PP 16 1.5 MM2 LG .57
  • F2031 T&B STA-KON FERRULE INSUL PP 16 1.5 MM2 LG .57
  • F2031 T&B STA-KON FERRULE INSUL PP 16 1.5 MM2 LG .57
  • F2031 T&B STA-KON FERRULE INSUL PP 16 1.5 MM2 LG .57

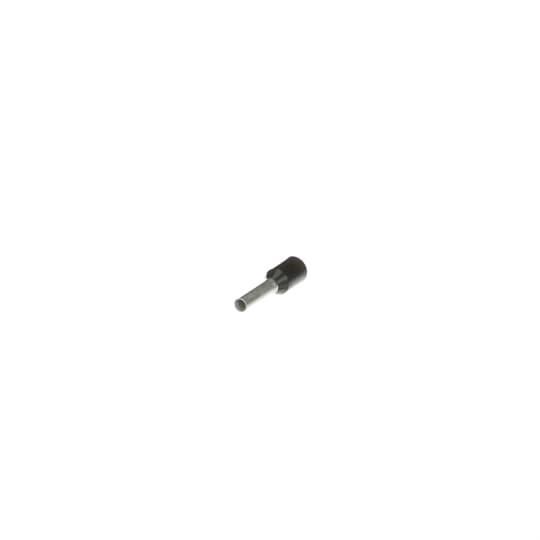

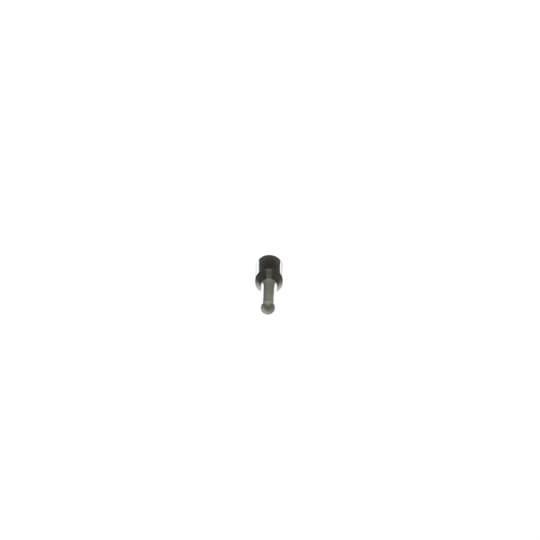

Description: Sta-Kon® Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 16 AWG Conductor, 0.571 in Length, Short Barrel, 0.134 in Dia Barrel, 300 V AC, Specifications: 0.071 in ID x 0.315 in L x 0.006 in THK Pin, 0.134 in Dia Base, 105 deg C, Copper, Tin Coated, Black

Manufacturer PN: F2031

UPC:  78621033505

Kendall Electric Inc PN: 2263816

Invoice Description:

F2031 T&B STA-KON FERRULE INSUL PP 16 1.5 MM2 LG .57


SPEC SHEET

▸ See All in Wire & Cable Ferrules


How Can We Make This Page Better?

Sta-Kon® F2031 F Series Insulated Wire Ferrule, 16 AWG Stranded Copper Conductor, 0.571 in L, Copper, Black

Log In for Pricing and Availability




Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Sta-Kon® Wire Ferrule, Insulated, Series: F Series, Stranded Copper Conductor, 16 AWG Conductor, 0.571 in Length, Short Barrel, 0.134 in Dia Barrel, 300 V AC, Specifications: 0.071 in ID x 0.315 in L x 0.006 in THK Pin, 0.134 in Dia Base, 105 deg C, Copper, Tin Coated, Black

Specifications

 Barrel Size 0.134 in Dia
 Brand Name Sta-Kon®
 Color Black
 Conductor Size 16 AWG
 Conductor Type Stranded Copper
 Finish Tin Coated
 Length 0.571 in
 Manufacturer Part Number F2031
 Material Copper
 PART NUMBER KEYWORDS F2031 ; 7TAI029780R0003 ; 10752133 ; 786210335056 ; 78621033505 ; 00786210335056 ; 5415022180626
 Series F Series
 Specifications 0.071 in ID x 0.315 in L x 0.006 in THK Pin, 0.134 in Dia Base
 Standards/Approvals DIN 46228 Part 4|UL File No. E489056
 Temperature Rating 105 deg C
 Type Insulated
 Voltage Rating 300 V AC

Features

▪ Polypropylene insulated
▪ Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
▪ Made of high conductivity copper
▪ Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
▪ Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
▪ Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
▪ Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
▪ Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
▪ T1, T3 and ERG4 recommended tools
