Description: Square D™ EZ Meter-Pak™ Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 400 A, 3 ph, Overhead/Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground/(1) Cable #1 AWG to 600 kcmil Line/(1) Cable #1 AWG to 600 kcmil Neutral Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 18.66 in W x 11.5 in D x 53.97 in H

Manufacturer PN: EZM3400FS

UPC:  78590130513

Kendall Electric Inc PN: 4711605

Invoice Description:

EZM3400FS SQD METERING EZM MAIN


SPEC SHEET

▸ See All in Meter Mains


How Can We Make This Page Better?

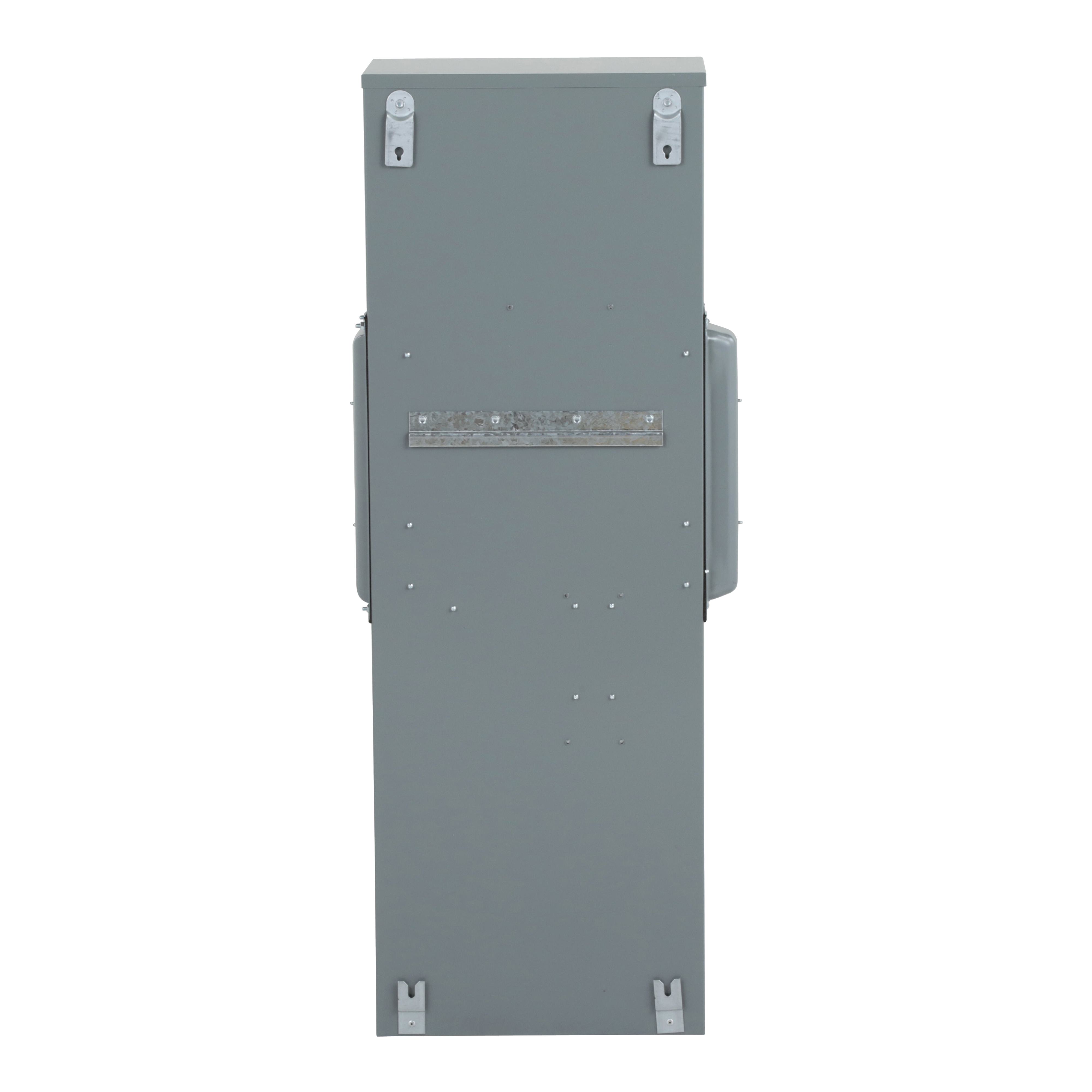

Square D™ EZ Meter-Pak™ EZM3400FS Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 400 A, 3 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Square D™ EZ Meter-Pak™ Main Fusible Switch, 208Y/120 VAC 240/120 VAC Delta, 400 A, 3 ph, Overhead/Underground Feed, (1) Cable #6 AWG to 300 kcmil Ground/(1) Cable #1 AWG to 600 kcmil Line/(1) Cable #1 AWG to 600 kcmil Neutral Wire, Lug Terminal, Surface Mount, NEMA 3R Operating, 18.66 in W x 11.5 in D x 53.97 in H

Specifications

 Amperage Rating 400 A
 Application Air Conditioning and Lighting
 Brand Name Square D
 Dimensions 18.66 in W x 11.5 in D x 53.97 in H
 Feed Type Overhead/Underground
 Includes 3 Pole 400 A 100 kA Interrupt Rating Main Switch and Closing Plate
 Manufacturer Part Number EZM3400FS
 Mounting Type Surface
 Operating Temperature NEMA 3R
 Phase 3
 Standards/Approvals ECCN EAR99|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
 Terminal Type Lug
 Voltage Rating 208Y/120 VAC 240/120 VAC Delta

Features

▪ Electrical connection - Lugs (1) cables 6 AWG to 300 kcmil (aluminum/copper) ground, lugs (1) cables 1 AWG to 600 kcmil (aluminum/copper) line, lugs (2) cables 1 AWG to 250 kcmil (aluminum/copper) line, lugs (1) cables 1 AWG to 600 kcmil (aluminum/copper) neutral and lugs (2) cables 1 AWG to 250 kcmil (aluminum/copper) neutral
▪ Meter center
