Specified Technologies
EZDR200 SPEC TEC EZ-PATH RETROFIT DEVICE FOR 2" SLEEVES

Mouse over image to zoom, click to enlarge

  • EZDR200 SPEC TEC EZ-PATH RETROFIT DEVICE FOR 2" SLEEVES
  • EZDR200 SPEC TEC EZ-PATH RETROFIT DEVICE FOR 2" SLEEVES
  • EZDR200 SPEC TEC EZ-PATH RETROFIT DEVICE FOR 2" SLEEVES
  • EZDR200 SPEC TEC EZ-PATH RETROFIT DEVICE FOR 2" SLEEVES
  • EZDR200 SPEC TEC EZ-PATH RETROFIT DEVICE FOR 2" SLEEVES

Description: STI® EZ-Path® Retrofit Device, Series: EZDR, Square Shape, 6-5/16 in Length, 4-7/8 in Width, 3-11/16 in Height, Fire Rating: Up to 2 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14579, Orange, Galvanized Steel

Manufacturer PN: EZDR200

UPC:  73057300200

Kendall Electric Inc PN: 3747380

Invoice Description:

EZDR200 SPEC TEC EZ-PATH RETROFIT DEVICE FOR 2" SLEEVES


SPEC SHEET

▸ See All in Firestop Pass Through Devices


How Can We Make This Page Better?

STI® EZ-Path® EZDR200 Retrofit Device, Square Shape, 6-5/16 in L x 4-7/8 in W x 3-11/16 in H, Up to 2 hr Fire Rating, Galvanized Steel, ASTM E814, UL 1479, CAN/ULC-S115, UL R14579

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

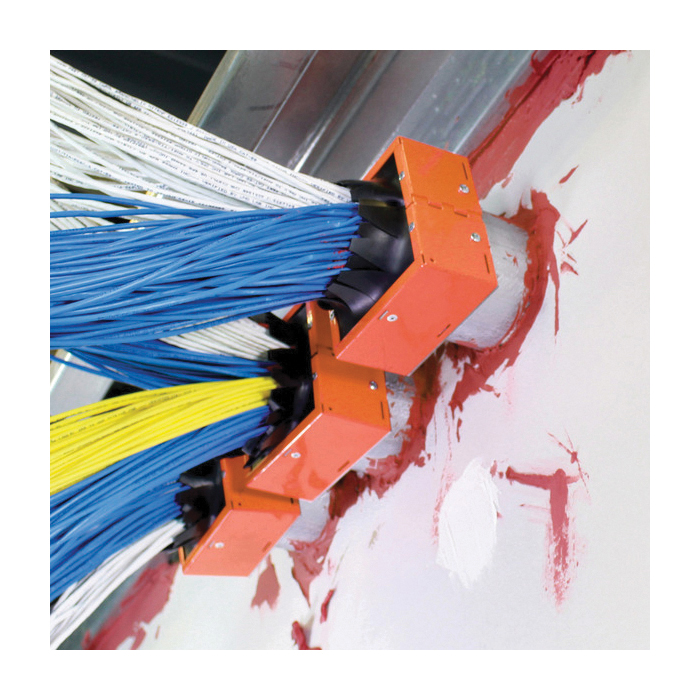

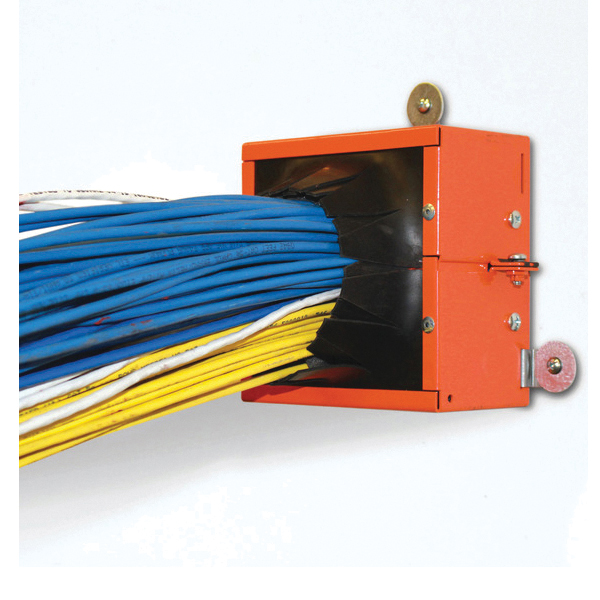

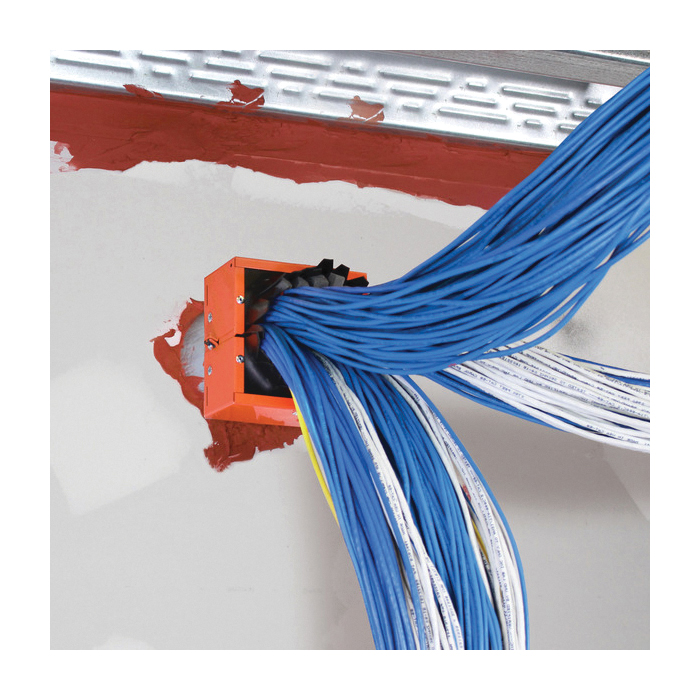

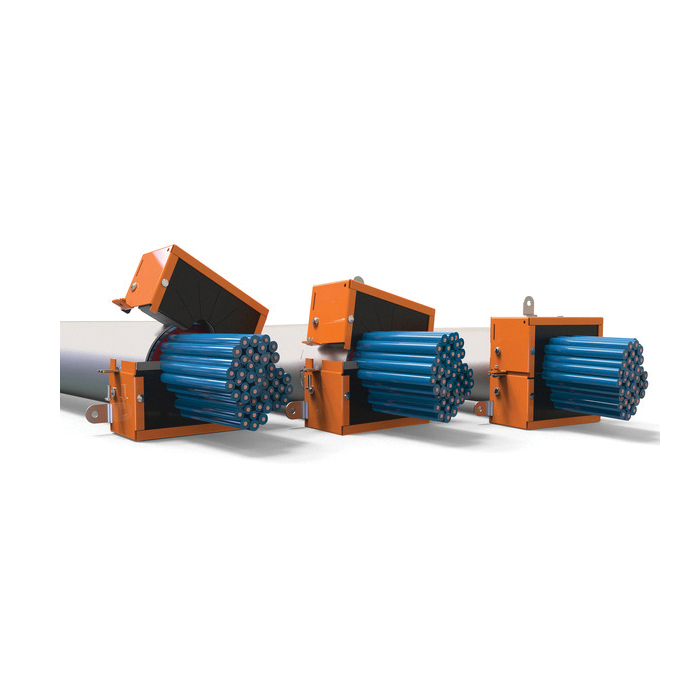

The EZ-Path® Retrofit Device is designed to restore the ratings for overfilled cable sleeve penetrations. The device features a built-in fire and smoke sealing system that can attach either to the sleeve or the barrier surface. The EZ-Path® Retrofit Device consists of a heavy gauge galvanized steel housing containing intumescent materials that expand rapidly when exposed to fire or high temperatures to close off the void area. Its unique two-piece design quickly installs around cable bundles and extended sleeves and can even accommodate standard conduit bushings. The square device shape allows cable exit or entry from multiple directions.
STI® EZ-Path® Retrofit Device, Series: EZDR, Square Shape, 6-5/16 in Length, 4-7/8 in Width, 3-11/16 in Height, Fire Rating: Up to 2 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14579, Orange, Galvanized Steel

Specifications

 Application For 2 in metallic EMT/rigid steel cable sleeves, stubs, cables and cable tray applications
 Brand Name STI® EZ-Path®
 Color Orange
 Fire Rating Up to 2 hr
 Height 3-11/16 in
 Length 6-5/16 in
 Manufacturer Part Number EZDR200
 Material Galvanized Steel
 PART NUMBER KEYWORDS EZDR200 ; 14118589 ; 730573002001 ; 73057300200 ; 00730573002001
 Series EZDR
 Shape Square
 Specifications Met ASTM E814, UL 1479, CAN/ULC-S115, UL R14579
 Standards/Approvals ARRA Compliant|Buy American Compliant|cULus Listed|RoHS Compliant
 Video Links
 Width 4-7/8 in

Features

▪ Professional fit and finish
▪ Safety orange for easy identification
▪ Easy to install
▪ No additional firestopping required
▪ 50 to 100% cable fill
▪ Bring overfilled sleeves back into code compliance
▪ Works with extended or flush sleeves
▪ Retrofit Device for overfilled sleeves
