Specified Technologies
EZDP133CWK SPEC TECH 33 SERIES - FIRE-RATED PATHWAY DEVICE FULL KIT WITH ONE PAIR (2) CIRCULAR WALL PLATES 73057300035

Mouse over image to zoom, click to enlarge

  • EZDP133CWK SPEC TECH 33 SERIES - FIRE-RATED PATHWAY DEVICE FULL KIT WITH ONE PAIR (2) CIRCULAR WALL PLATES 73057300035
  • EZDP133CWK SPEC TECH 33 SERIES - FIRE-RATED PATHWAY DEVICE FULL KIT WITH ONE PAIR (2) CIRCULAR WALL PLATES 73057300035
  • EZDP133CWK SPEC TECH 33 SERIES - FIRE-RATED PATHWAY DEVICE FULL KIT WITH ONE PAIR (2) CIRCULAR WALL PLATES 73057300035
  • EZDP133CWK SPEC TECH 33 SERIES - FIRE-RATED PATHWAY DEVICE FULL KIT WITH ONE PAIR (2) CIRCULAR WALL PLATES 73057300035
  • EZDP133CWK SPEC TECH 33 SERIES - FIRE-RATED PATHWAY DEVICE FULL KIT WITH ONE PAIR (2) CIRCULAR WALL PLATES 73057300035

Description: EZ-Path® Pathway Circular Plate Kit, Fire-Rated, Series: 33 Series, Fire Rating: Upto 4 hr, Specifications Met: ASTM E814, CAN/ULC-S115, cULus Listed, FM Approved, UL File No R14579, UL 1479, Orange, Galvanized Steel

Manufacturer PN: EZDP133CWK

UPC:  73057300035

Kendall Electric Inc PN: 2625435

Invoice Description:

EZDP133CWK SPEC TECH 33 SERIES - FIRE-RATED PATHWAY DEVICE FULL KIT WITH ONE PAIR (2) CIRCULAR WALL PLATES 73057300035


SPEC SHEET

▸ See All in Firestop Pass Through Devices


How Can We Make This Page Better?

EZ-Path® EZDP133CWK Fire-Rated Pathway Circular Plate Kit, Upto 4 hr Fire Rating, Galvanized Steel, ASTM E814, CAN/ULC-S115, cULus Listed, FM Approved, UL File No R14579, UL 1479

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The EZ-Path® Fire-Rated Pathway is a pathway device designed to allow cables to penetrate fire-rated walls and floors without the need for fire stopping. This device features a built-in fire and smoke sealing system that automatically adjusts to the amount of cables installed. Once installed in a fire barrier, cables can be easily added or removed at any time without the need to remove or reinstall fire stopping materials. EZ-Path® Series 33 Fire-Rated Pathway consists of an enclosed heavy gauge galvanized steel pathway lined with intumescent material engineered for rapid expansion when exposed to fire or high temperatures, quickly sealing the pathway and preventing the passage of flames and smoke. EZ-Path® Series 33 Fire-Rated Pathway is painted safety orange for easy identification. Its compact square profile allows a maximum number of cables to be installed in a relatively small area.
EZ-Path® Pathway Circular Plate Kit, Fire-Rated, Series: 33 Series, Fire Rating: Upto 4 hr, Specifications Met: ASTM E814, CAN/ULC-S115, cULus Listed, FM Approved, UL File No R14579, UL 1479, Orange, Galvanized Steel

Specifications

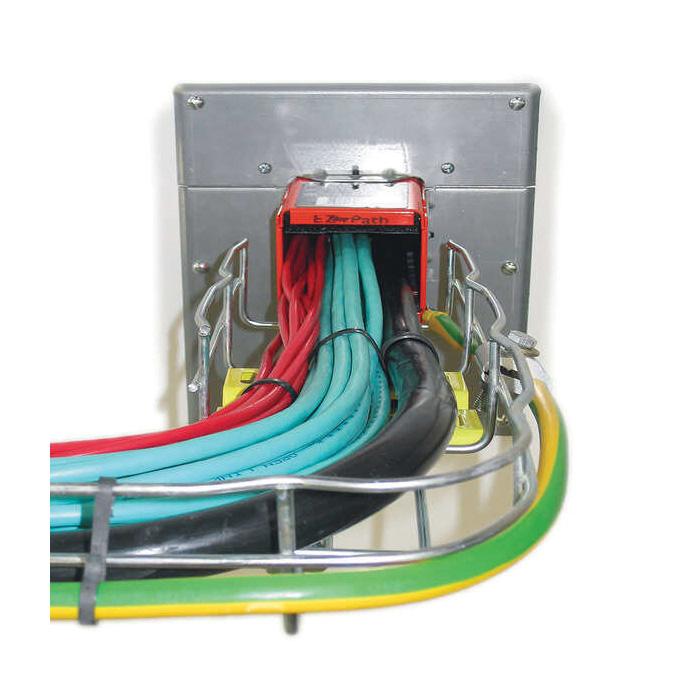

 Application Cables and Cable Tray
 Brand Name EZ-Path®
 Color Orange
 Fire Rating Upto 4 hr

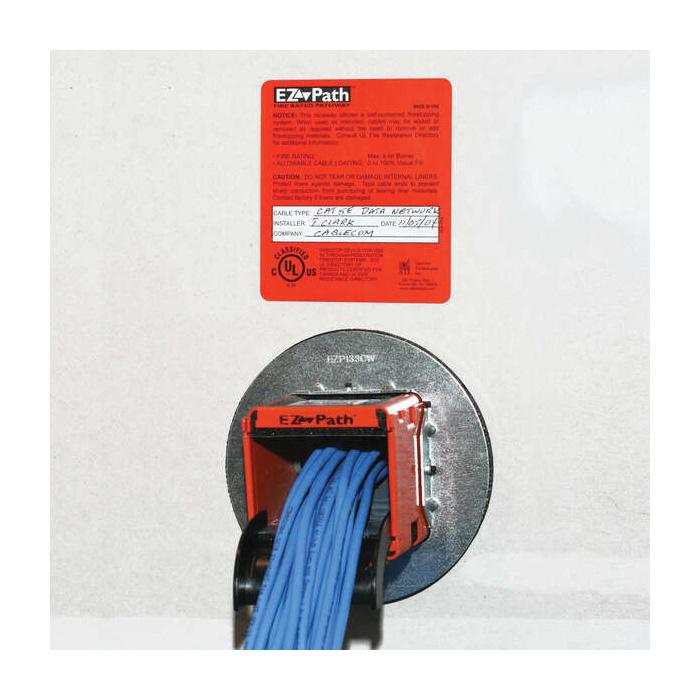

 Includes Circular Wallplates and Labels
 Manufacturer Part Number EZDP133CWK
 Material Galvanized Steel
 PART NUMBER KEYWORDS EZDP133CWK ; 730573000359 ; 73057300035 ; 00730573000359
 Series 33 Series
 Specifications Met ASTM E814, CAN/ULC-S115, cULus Listed, FM Approved, UL File No R14579, UL 1479
 Type Fire-Rated
 Video Links

Features

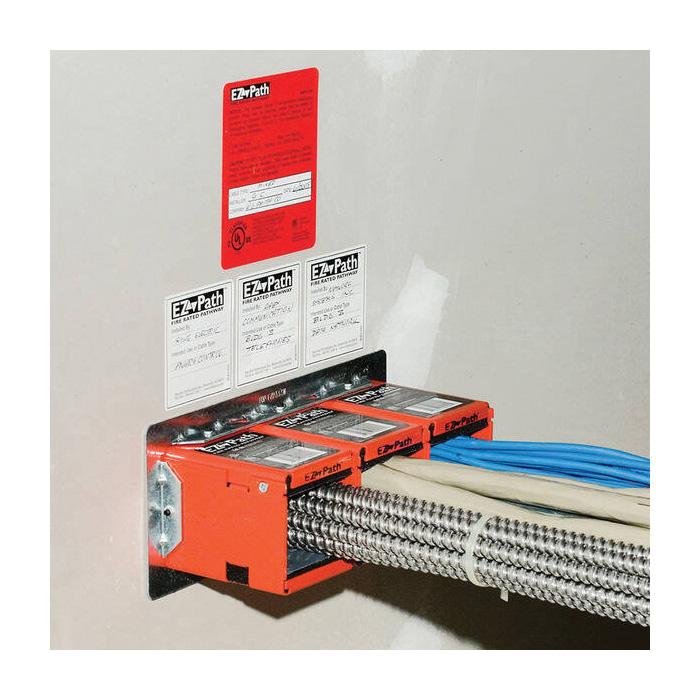

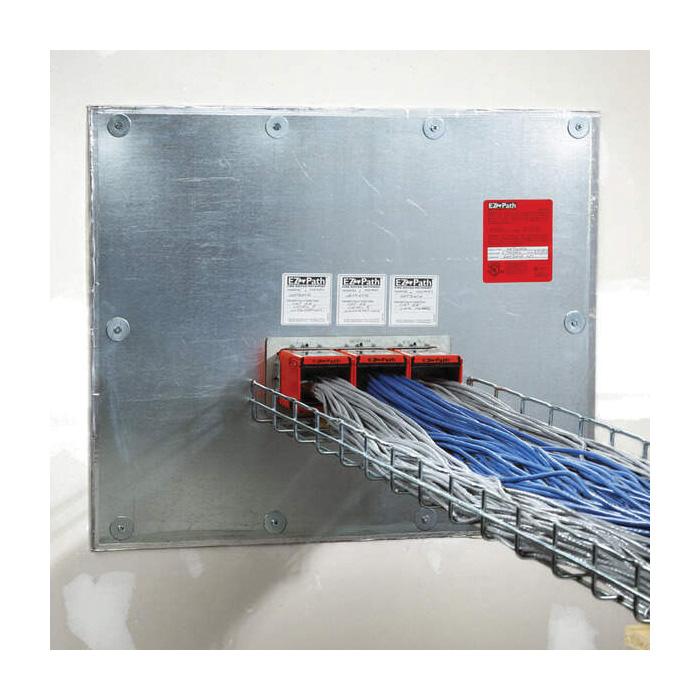

▪ Pathways can be ganged for additional capacity
▪ Permits cable segregation by use, type, vendor
▪ Match the capacity of a 4 in conduit
▪ Self-sealing design providing exceptional F and L ratings
▪ Designed for new and existing conditions
▪ Full suite of plate configurations for any field scenario
▪ Allows for easy Moves, adds and Changes
▪ Easy to install
▪ No firestopping required
▪ Acoustically tested
▪ Firestopped at all stages of use
▪ UL certified for the complete range of its capacity
