Specified Technologies
EZCTR618 SPEC TEC EZP CABLE TRAY RETROFIT DEVICE MAX 6X18 TRAY

Mouse over image to zoom, click to enlarge

  • EZCTR618 SPEC TEC EZP CABLE TRAY RETROFIT DEVICE MAX 6X18 TRAY
  • EZCTR618 SPEC TEC EZP CABLE TRAY RETROFIT DEVICE MAX 6X18 TRAY
  • EZCTR618 SPEC TEC EZP CABLE TRAY RETROFIT DEVICE MAX 6X18 TRAY
  • EZCTR618 SPEC TEC EZP CABLE TRAY RETROFIT DEVICE MAX 6X18 TRAY
  • EZCTR618 SPEC TEC EZP CABLE TRAY RETROFIT DEVICE MAX 6X18 TRAY

Description: STI® EZ-Path® Cable Tray Retrofit Device, Fire Rating: Up to 2 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14579, Orange, Galvannealed Steel

Manufacturer PN: EZCTR618

UPC:  73057300736

Kendall Electric Inc PN: 4185970

Invoice Description:

EZCTR618 SPEC TEC EZP CABLE TRAY RETROFIT DEVICE MAX 6X18 TRAY


SPEC SHEET

How Can We Make This Page Better?

STI® EZ-Path® EZCTR618 Cable Tray Retrofit Device, Up to 2 hr Fire Rating, Galvannealed Steel, ASTM E814, UL 1479, CAN/ULC-S115, UL R14579

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

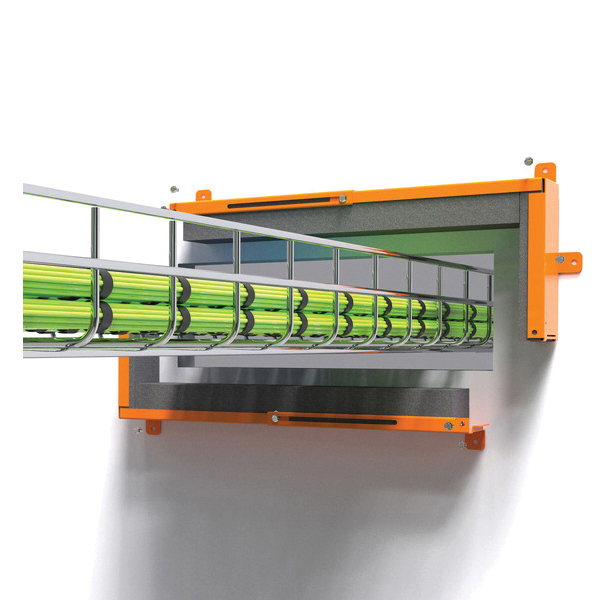

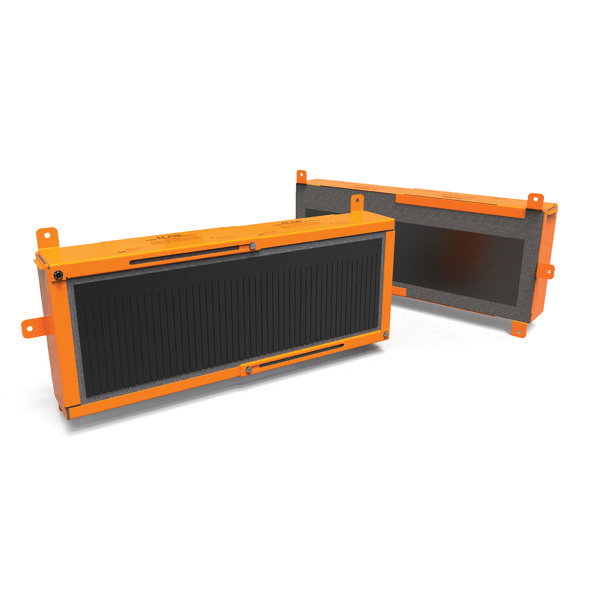

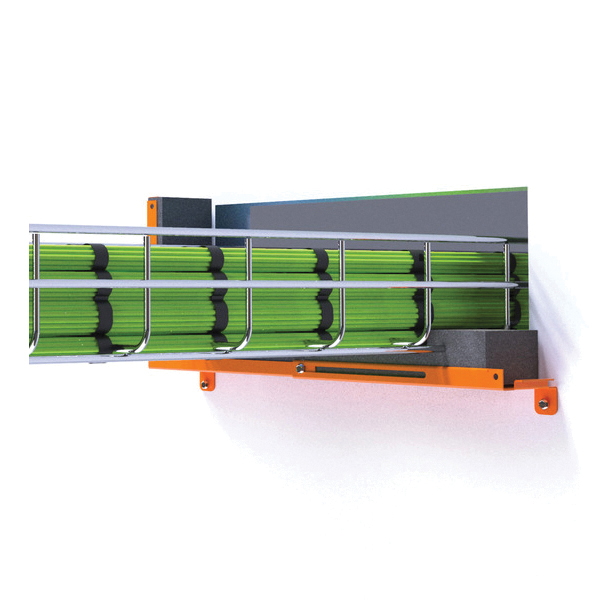

The EZ-Path® Cable Tray Retrofit Device is designed to restore the ratings for overfilled cable tray penetrations. The device features a built-in fire and smoke sealing system that installs around existing cable trays and fastens to the barrier surface. The EZ-Path® Cable Tray Retrofit Device consists of a heavy gauge galvanized steel housing containing intumescent materials that expand rapidly when exposed to fire or high temperatures to close off the void area. Its unique two-piece design installs around existing cable tray penetrations in fire rated walls restoring the fire-rating of penetrations even when loaded to 100% cable fill.
STI® EZ-Path® Cable Tray Retrofit Device, Fire Rating: Up to 2 hr, Specifications Met: ASTM E814, UL 1479, CAN/ULC-S115, UL R14579, Orange, Galvannealed Steel

Specifications

 Application For 6 x 18 in cable tray and cables
 Brand Name STI® EZ-Path®
 Color Orange
 Fire Rating Up to 2 hr
 Manufacturer Part Number EZCTR618
 Material Galvannealed Steel
 PART NUMBER KEYWORDS EZCTR618 ; 15813603 ; 730573007365 ; 73057300736 ; 00730573007365
 Specifications Met ASTM E814, UL 1479, CAN/ULC-S115, UL R14579
 Standards/Approvals ARRA Compliant|Buy American Compliant|cULus Listed|RoHS Compliant
 Video Links

Features

▪ Tested in concrete and gypsum board walls
▪ Tested cable fills from 25 up to 100%
▪ Suitable for ladder and wire basket style cable trays
▪ Safety orange for easy identification
