Acuity Brands
  • EU2L-M12 LITHONIA LIGHTING LED EMERGENCY LIGHT THERMOPLASTIC MASTER PACK OF 12 (CI# 263X1T)
  • EU2L-M12 LITHONIA LIGHTING LED EMERGENCY LIGHT THERMOPLASTIC MASTER PACK OF 12 (CI# 263X1T)
  • EU2L-M12 LITHONIA LIGHTING LED EMERGENCY LIGHT THERMOPLASTIC MASTER PACK OF 12 (CI# 263X1T)

Description: Lithonia Lighting®, EU2L M12, Emergency Lighting Unit, Low Profile, Series: EU2L, 120/277 VAC, 0.33/0.37 W Fixture, 0.05 A, LED Lamp, 1.5 W Lamp, 2 Heads, 10 years Average Life, 3.6 VDC Rechargeable Ni-Cd Battery Power Source, Ceiling Mounting, 2-3/4 in H x 7-7/8 in W x 4-1/2 in D Dimensions, Thermoplastic, White

Manufacturer PN: EU2LM12

UPC:  19184803535

Kendall Electric Inc PN: 3813950

Invoice Description:

EU2L-M12 LITHONIA LIGHTING LED EMERGENCY LIGHT THERMOPLASTIC MASTER PACK OF 12 (CI# 263X1T)


SPEC SHEET

▸ See All in Emergency Lighting Fixtures


How Can We Make This Page Better?

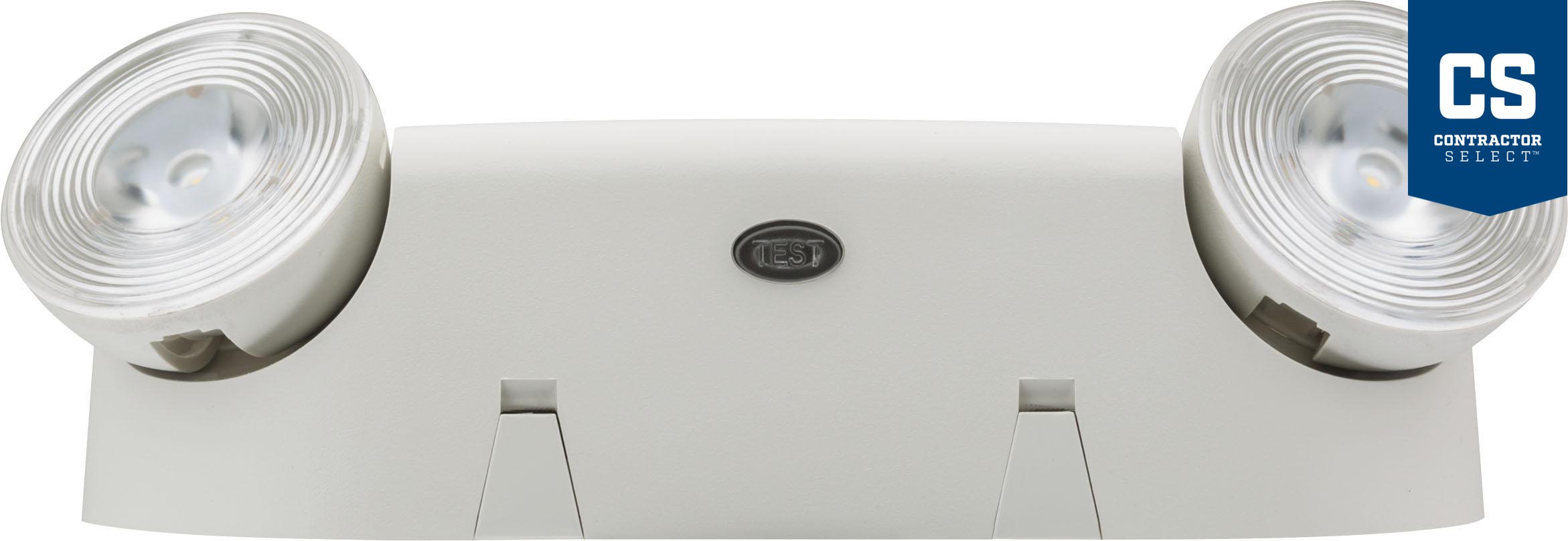

Lithonia Lighting® EU2L M12 EU2L Low Profile Emergency Lighting Unit, 1.5 W Lamp LED Lamp, 120/277 VAC, 2 Heads, Thermoplastic

Log In for Pricing and Availability




Description

The Lithonia Lighting® EU2L LED emergency light is suitable for emergency lighting applications such as stairways and hallways. It's low profile design with small, unobtrusive dual lamp heads makes the EU2L ideal for safely illuminating the path of egress in small spaces at lower mounting heights. It can be wall or ceiling mounted and will provide 90 min of emergency power in the case of power loss.
Lithonia Lighting®, EU2L M12, Emergency Lighting Unit, Low Profile, Series: EU2L, 120/277 VAC, 0.33/0.37 W Fixture, 0.05 A, LED Lamp, 1.5 W Lamp, 2 Heads, 10 years Average Life, 3.6 VDC Rechargeable Ni-Cd Battery Power Source, Ceiling Mounting, 2-3/4 in H x 7-7/8 in W x 4-1/2 in D Dimensions, Thermoplastic, White

Specifications

 Amperage Rating 0.05 A
 Application Education, Hospitality, Offices, Banks, Retail and Damp Locations
 Average Life 10 years
 Brand Name Lithonia Lighting®
 Color White

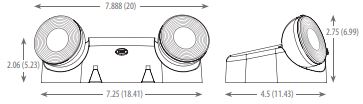

 Dimensions 2-3/4 in H x 7-7/8 in W x 4-1/2 in D
 Fixture Wattage 0.33/0.37 W
 Includes Mounting Hardware
 Lamp Type LED
 Lamp Wattage 1.5 W
 Manufacturer Part Number EU2L M12
 Material Thermoplastic
 Mounting Type Ceiling
 Number of Heads 2
 Power Source 3.6 VDC Rechargeable Ni-Cd Battery
 Series EU2L
 Standards/Approvals UL 924|NEC Certified|OSHA Compliant|FCC Approved|California Title 20 Section 1605.3 Compliant|FCC Title 47, Part 15, Subpart B|NFPA 101/70|UL Listed for Damp Location|OSHA Compliant
 Type Low Profile
 Video Links
 Voltage Rating 120/277 VAC

Features

▪ ENERGY EFFCIENCY- LEDs improve your payback and reduces your total cost of ownership
▪ MOUNTING- Wall mount and ceiling mount, Surface mount back plate fits most standard size junction boxes and snaps into place
▪ USE- Provides a min of 90 min illumination
▪ HOURS OF LIFE- The typical life of the LED is 10 years
▪ BATTERY- 3.6V Maintenance-free, rechargeable, nickel-cadmium, Bi-color LED status indicator for battery condition
