Eaton

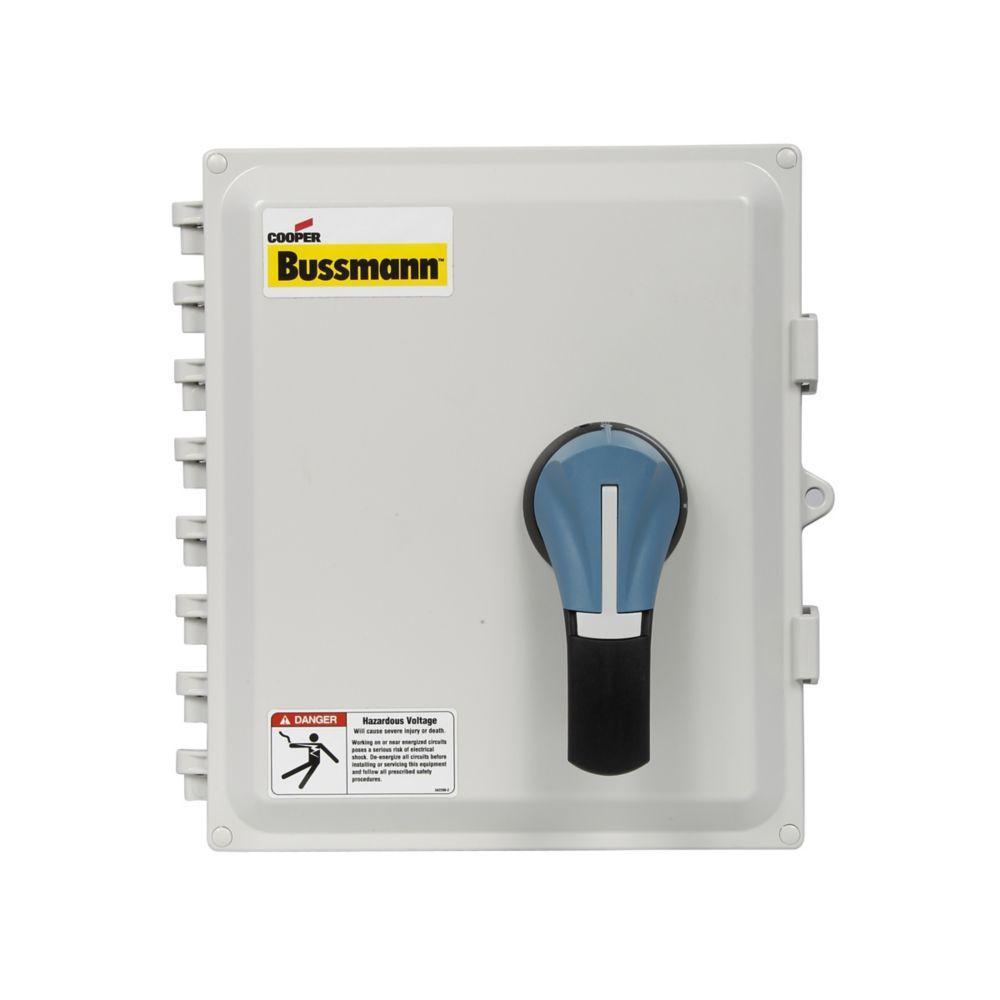

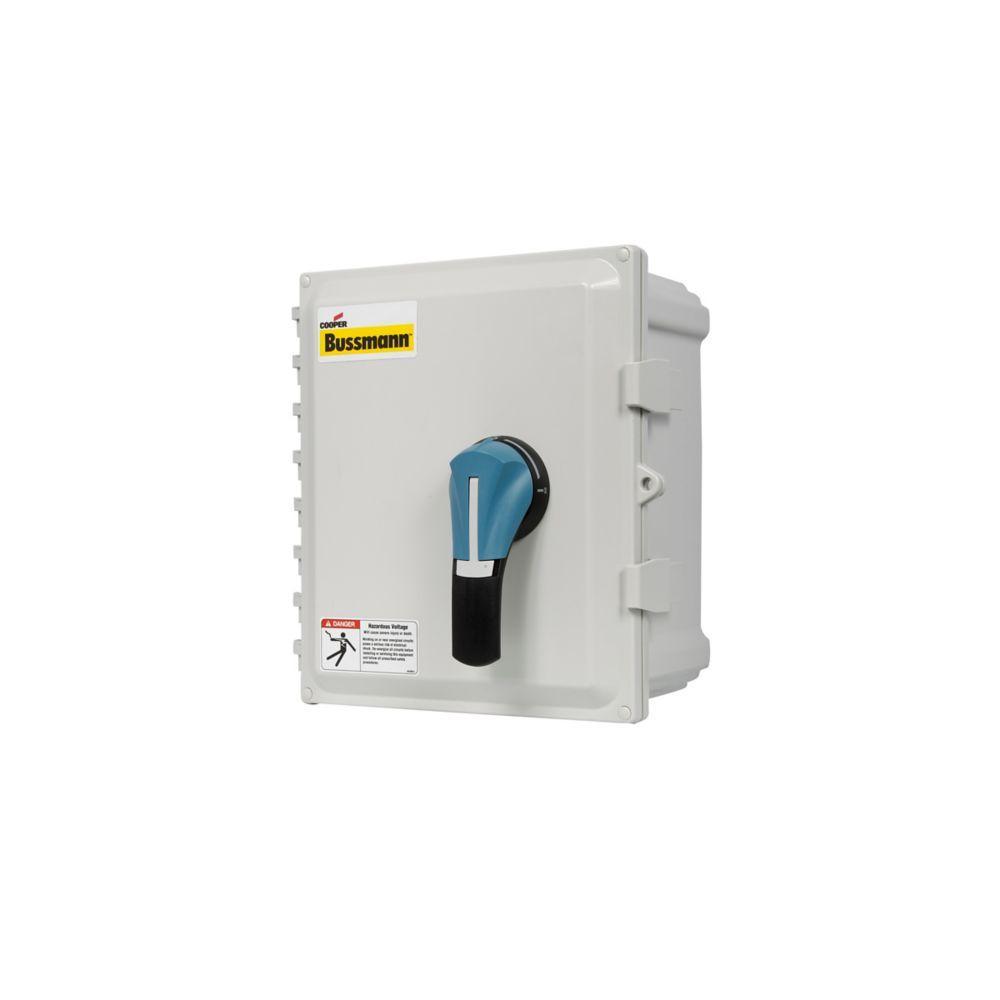

ER4P-80N3PB BUSSMANN ENCLOSED DISCONNECTS

Mouse over image to zoom, click to enlarge

  • ER4P-80N3PB BUSSMANN ENCLOSED DISCONNECTS
  • ER4P-80N3PB BUSSMANN ENCLOSED DISCONNECTS
  • ER4P-80N3PB BUSSMANN ENCLOSED DISCONNECTS

Description: Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 V AC, 80 A, 40 hp, 3 Pole, 50 kA/100 A Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 4P, -20 to 70 deg C, 8.7 in W x 5.9 in D x 9.4 in H, Polycarbonate

Manufacturer PN: ER4P-80N3PB

UPC:  05171248803

Kendall Electric Inc PN: 4580569

Invoice Description:

ER4P-80N3PB BUSSMANN ENCLOSED DISCONNECTS


SPEC SHEET

▸ See All in Enclosed Rotary Disconnects


How Can We Make This Page Better?

Bussmann ER4P-80N3PB Non-Fused Enclosed Rotary Disconnect Switch, 600 V AC, 80 A, 40 hp, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Bussmann Enclosed Rotary Disconnect Switch, Non-Fused, Series: ER, 600 V AC, 80 A, 40 hp, 3 Pole, 50 kA/100 A Short Circuit Current Rating, Black Pistol Handle Actuator, NEMA 4P, -20 to 70 deg C, 8.7 in W x 5.9 in D x 9.4 in H, Polycarbonate

Specifications

 Actuator Type Black Pistol Handle
 Amperage Rating 80 A
 Application Motor Disconnect, Stationary Machine Equipment in Factory and Robotics Applications
 Brand Name Bussmann
 Dimensions 8.7 in W x 5.9 in D x 9.4 in H
 Enclosure NEMA 4P
 Horsepower 40 hp
 Manufacturer Part Number ER4P-80N3PB
 Material Polycarbonate
 Number of Poles 3
 PART NUMBER KEYWORDS ER4P-80N3PB ; ER4P80N3PB ; 12260893 ; 051712488037 ; 51712488037 ; 05171248803 ; 00051712488037
 Series ER
 Short Circuit Current Rating 50 kA/100 A
 Standards/Approvals CE Certified|CSA 22.2 File No. 14|cULus Listed|IEC 60947-3|UL 94-5V A-0 Flammability Rating|UL 98/508 File No. E182262/E155129 Guide WIAX/WIAX7/NLRV/NLRV7
 Temperature Rating -20 to 70 deg C
 Type Non-Fused
 Video Links
 Voltage Rating 600 V AC

Features

▪ Multiple field installed accessories enhance the enclosed disconnect switches to fit the desired application
▪ Lockout/tagout up to three 1/4 in shank padlocks can be installed on external handles

Resources

 Catalog Page
 Product Data Sheet
