| ▪ Lithium iron phosphate battery powers both on board LEDs and up to 2.4 W additional LED remote lamp heads simultaneously or offers extended run time up to 3 hr |
| ▪ Current limiting charger maximizes battery life and minimizes energy consumption and provides low operating costs, small battery chargers certified in the CA Title 20 appliance efficiency database |
| ▪ Short circuit protection current limiting charger circuitry protects printed circuit board from shorts |
| ▪ Regulated charge voltage maintains constant charge voltage over a wide range of line voltages |
| ▪ Prevents over/undercharging that shortens battery life and reduces capacity, filtered charger input minimizes charge voltage ripple and extends battery life |
| ▪ Automatic 24 hr recharge after a 90 min discharge |
| ▪ Advanced electrical design provides constant light output throughout the entire discharge period |
| ▪ Brownout protection is automatically switched to emergency mode when supply voltage drops below approximately 80% nominal of 120 V, 220 V, 277 V or 347 V, other input voltages may vary |
| ▪ AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge |
| ▪ Continuously monitors AC functionality |
| ▪ Provides a minimum of 90 min illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting, ideal for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for lower mounting heights |

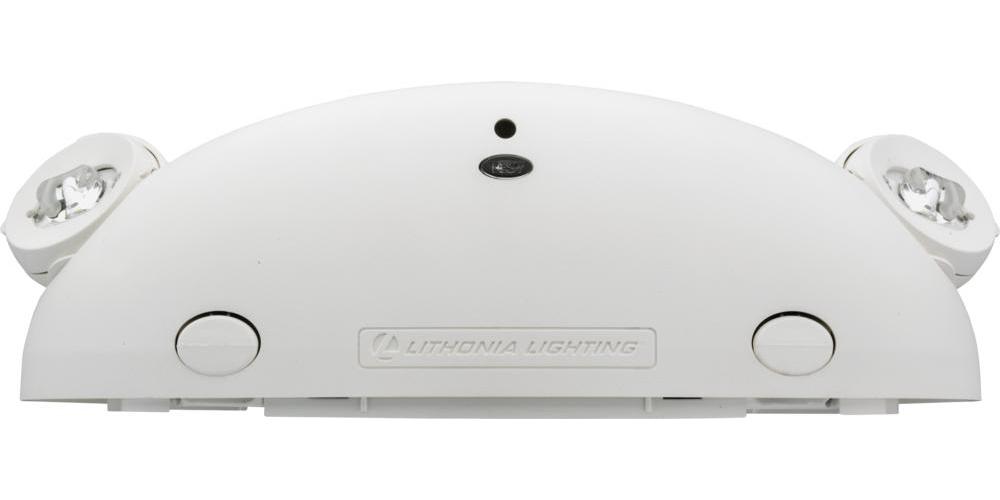

| ▪ The housing is a standard white (black optional) thermoplastic with a compact and low-profile contemporary design |
| ▪ It is 5 VA flame rated, impact-resistant, scratch-resistant and corrosionproof |
| ▪ The UV stable resin resists discoloration from natural and man made light sources |
| ▪ Low-profile, integrated and back-lit test switch with an easily visible multi-color LED status indicator |
| ▪ The backplate contains a universal J-box mounting pattern to facilitate ease of installation on a wide variety of J-boxes and the front housing allows toolless access for ease of maintenance |
| ▪ Unique track and swivel arrangement permits full range of direction for lamp head adjustment |
| ▪ Features two, high performance LEDs with acrylic lens rated at 1.2 W each and delivering a total of 220 Lumens in a linear pattern (LP220L) |
| ▪ Sealed, maintenance-free Ni-Cd or lithium iron phosphate battery |
