Acuity Brands
ELM2L-UVOLT-LTP-M12 LITHONIA LED EM LIGHT REMOTE CAPABLE

Mouse over image to zoom, click to enlarge

  • ELM2L-UVOLT-LTP-M12 LITHONIA LED EM LIGHT REMOTE CAPABLE
  • ELM2L-UVOLT-LTP-M12 LITHONIA LED EM LIGHT REMOTE CAPABLE
  • ELM2L-UVOLT-LTP-M12 LITHONIA LED EM LIGHT REMOTE CAPABLE
  • ELM2L-UVOLT-LTP-M12 LITHONIA LED EM LIGHT REMOTE CAPABLE
  • ELM2L-UVOLT-LTP-M12 LITHONIA LED EM LIGHT REMOTE CAPABLE

Description: Lithonia Lighting® Quantum® Emergency Light, Adjustable Optics, Series: ELM2L, 120 to 347 VAC, 1.35/1.64 W Fixture, 0.022/0.014 A, 50/60 Hz Frequency, Static LED Lamp, 2.4 W Lamp, 2 Heads, 220 Lumens, 10 years Average Life, 5000 K Color Temperature, Acrylic Lens, Battery Power Source, Surface Mounting, 9.72 in L x 3.1 in W x 4.68 in H Dimensions, Thermoplastic, White

Manufacturer PN: ELM2LUVOLTLTPM12

UPC:  19184807811

Kendall Electric Inc PN: 3852068

Invoice Description:

ELM2L-UVOLT-LTP-M12 LITHONIA LED EM LIGHT REMOTE CAPABLE


SPEC SHEET

▸ See All in Emergency Lighting Fixtures


How Can We Make This Page Better?

Lithonia Lighting® Quantum® ELM2L UVOLT LTP M12 Adjustable Optics Emergency Light, 2.4 W Static LED Lamp, 120 to 347 VAC, 2 Heads, Thermoplastic

Log In for Pricing and Availability




Description

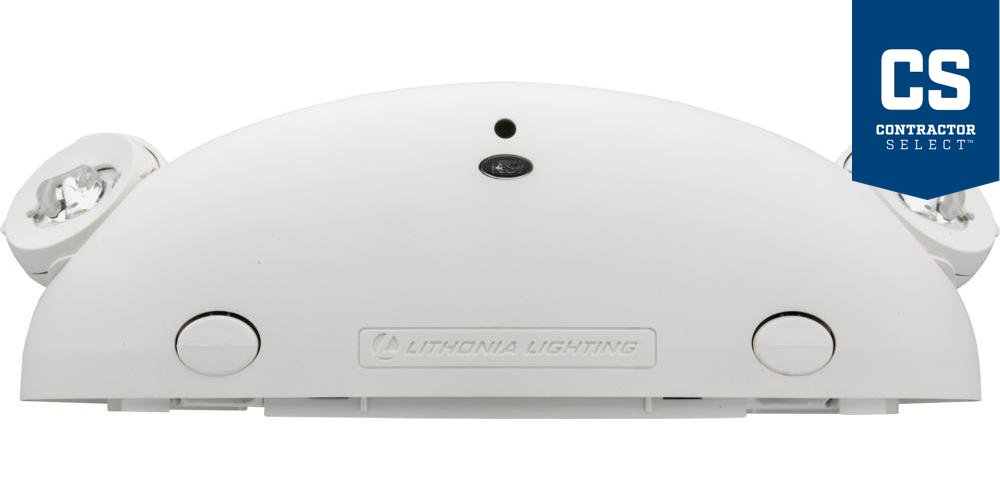

The ELM2L from Lithonia Lighting® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 min of illumination when there is a loss of power. Unique track and swivel arrangement permits full range of direction for lamp head aiming for wall and ceiling mount applications (mounting heights range from 7.5 to 10 ft), making installation easy while maintaining the maximum path of egress coverage. The linear pattern provides wide uniform distributions that deliver broad spacing up to 33 ft and low max to min ratios that far exceed code requirements. The ELM2L optional lithium platform comes standard with universal input voltage (120 to 347 V). The upgraded lithium iron phosphate battery provides a 3 hr run time or 2.4 W of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.
Lithonia Lighting® Quantum® Emergency Light, Adjustable Optics, Series: ELM2L, 120 to 347 VAC, 1.35/1.64 W Fixture, 0.022/0.014 A, 50/60 Hz Frequency, Static LED Lamp, 2.4 W Lamp, 2 Heads, 220 Lumens, 10 years Average Life, 5000 K Color Temperature, Acrylic Lens, Battery Power Source, Surface Mounting, 9.72 in L x 3.1 in W x 4.68 in H Dimensions, Thermoplastic, White

Specifications

 Amperage Rating 0.022/0.014 A
 Application Education, Government, Healthcare, Hospitality, Offices, Banks, Religious, Retail, Sports and Recreation and Residential Applications
 Average Life 10 years
 Brand Name Lithonia Lighting®
 Color White
 Color Temperature 5000 K
 Dimensions 9.72 in L x 3.1 in W x 4.68 in H
 Fixture Wattage 1.35/1.64 W
 Frequency Rating 50/60 Hz
 Lamp Type Static LED
 Lamp Wattage 2.4 W
 Lumens 220 Lumens
 Manufacturer Part Number ELM2L UVOLT LTP M12
 Material Thermoplastic
 Mounting Type Surface
 Number of Heads 2
 Power Source Battery
 Series ELM2L
 Standards/Approvals cULus Listed|CA 20 Section 1605.3 (W)(4)|UL 924 Listed for Damp Location|NFPA 101/70|NOM Certified|FCC Title 47, Part 15, Subpart B|OSHA Compliant|C22.2 No. 141-10|BC Certified
 Type Adjustable Optics
 Video Links
 Voltage Rating 120 to 347 VAC

Features

▪ MOUNTING- Wall and ceiling mount with tool-less removal of front cover from back-plate for ease of installation and maintenance
▪ UPGRADE- Easily replaces existing emergency lighting units
▪ CONTROLS- Optional STAR self-testing automated reporting feature
▪ VOLTAGE- Functions between 120 and 347 V with input wattage of 1.35 W
▪ HOURS OF LIFE- The typical life of the LED lamp is 10 years using two 1 W LED lamps for emergency light
▪ HOUSING- Standard thermoplastic, compact and low-profile design, it's 5VA flame rated, impact- and scratch-resistant and corrosion proof, the UV-stable resin resists discoloration from natural and man-made light sources
