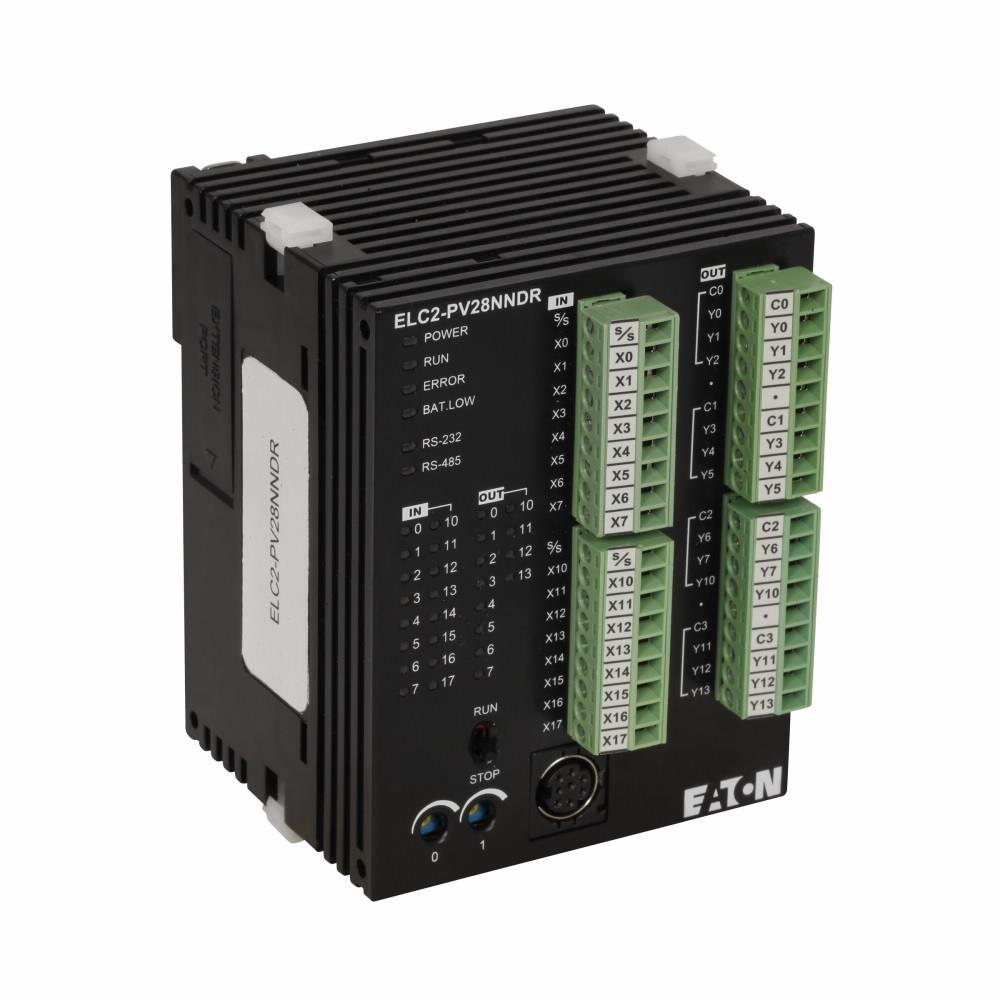

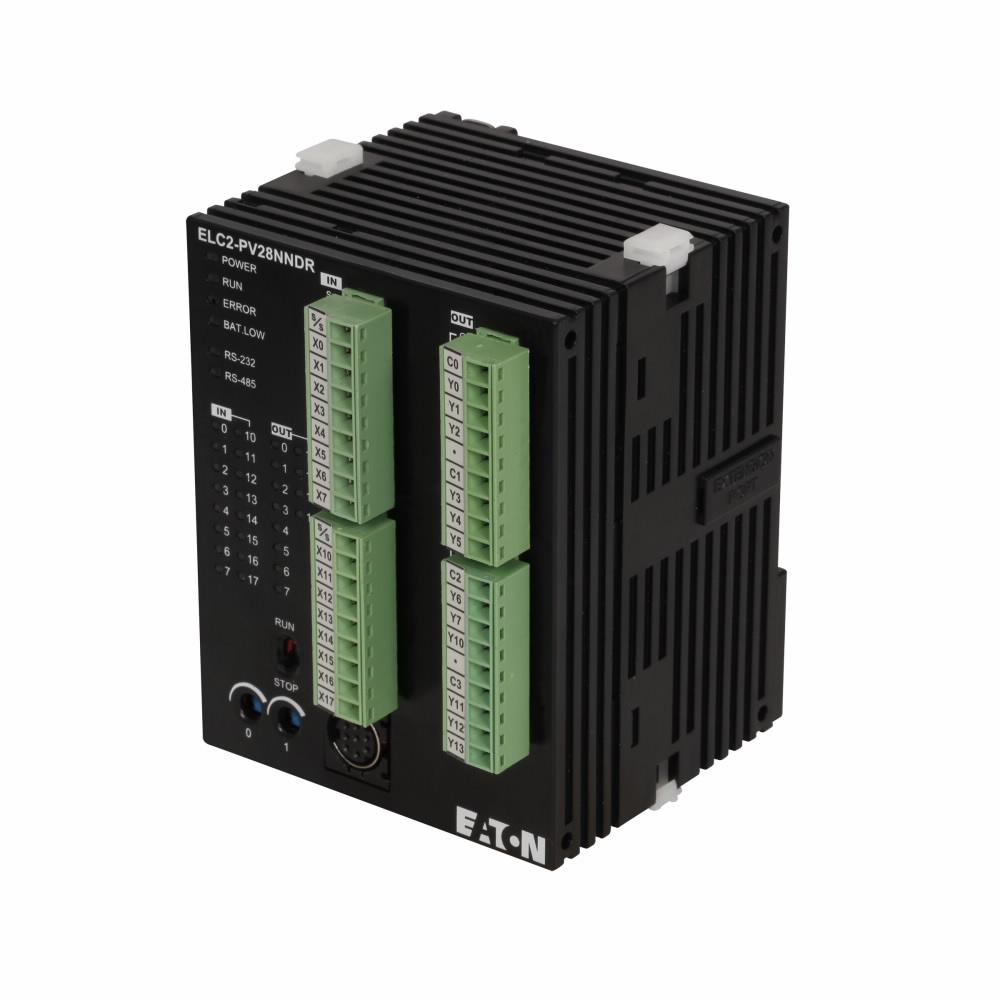

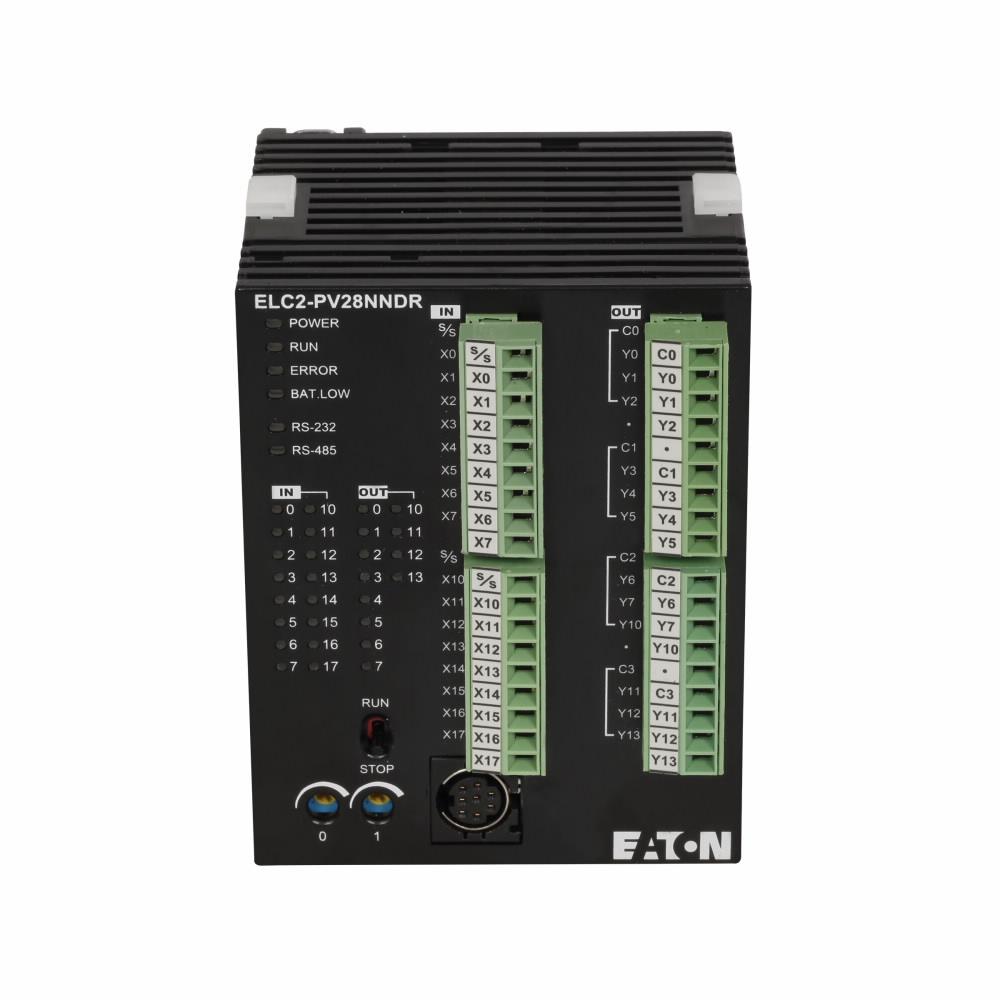

ELC2-PV28NNDR CH PV CONTROLLER 28 I/O, 16 INPUT DC, 12 OUTPUT RELAY

Mouse over image to zoom, click to enlarge

  • ELC2-PV28NNDR CH PV CONTROLLER 28 I/O, 16 INPUT DC, 12 OUTPUT RELAY
  • ELC2-PV28NNDR CH PV CONTROLLER 28 I/O, 16 INPUT DC, 12 OUTPUT RELAY
  • ELC2-PV28NNDR CH PV CONTROLLER 28 I/O, 16 INPUT DC, 12 OUTPUT RELAY
  • ELC2-PV28NNDR CH PV CONTROLLER 28 I/O, 16 INPUT DC, 12 OUTPUT RELAY
  • ELC2-PV28NNDR CH PV CONTROLLER 28 I/O, 16 INPUT DC, 12 OUTPUT RELAY

Description: EATON Programmable Logic Controller, Type ELC2 Advanced, Series: ELC, 24 V DC, 5 mA, 16-Digital Inputs, 12 Outputs, Modbus RTU, COM 1/RS232, COM 2/RS485, COM 3/RS485, Left Side Bus Communication, 28 Ports, DIN Rail Mounting, 4 in L x 4-1/2 in W x 4-1/2 in H Dimensions

Manufacturer PN: ELC2-PV28NNDR

UPC:  78668588622

Kendall Electric Inc PN: 3844253

Invoice Description:

ELC2-PV28NNDR CH PV CONTROLLER 28 I/O, 16 INPUT DC, 12 OUTPUT RELAY


SPEC SHEET

▸ See All in Programmable Logic Controllers


How Can We Make This Page Better?

EATON ELC2-PV28NNDR Type ELC2 Advanced Programmable Logic Controller, 24 V DC, 5 mA, 16-Digital Inputs, 12 Outputs

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Designed using the latest technology, the Eaton Logic Controllers (ELCs) are small and feature-rich. An abundance of module options allow users to specify their ELC solution so that it is "just right," satisfying requirements and saving space, time and money.
EATON Programmable Logic Controller, Type ELC2 Advanced, Series: ELC, 24 V DC, 5 mA, 16-Digital Inputs, 12 Outputs, Modbus RTU, COM 1/RS232, COM 2/RS485, COM 3/RS485, Left Side Bus Communication, 28 Ports, DIN Rail Mounting, 4 in L x 4-1/2 in W x 4-1/2 in H Dimensions

Specifications

 Amperage Rating 5 mA
 Application Commercial, Institutional Buildings, Structures Building Automation and Monitoring Applications
 Brand Name EATON
 Communication Modbus RTU, COM 1/RS232, COM 2/RS485, COM 3/RS485, Left Side Bus
 Dimensions 4 in L x 4-1/2 in W x 4-1/2 in H
 Manufacturer Part Number ELC2-PV28NNDR
 Mounting Type DIN Rail
 Number of Outputs 12
 PART NUMBER KEYWORDS ELC2-PV28NNDR ; ELC2PV28NNDR ; 12879004 ; 786685886220 ; 78668588622 ; 00786685886220
 Series ELC
 Standards/Approvals cULus Listed,RoHS Compliant,CE Marked
 Type Type ELC2 Advanced
 Voltage Rating 24 V DC

Features

▪ Fastest CPU
▪ Clock/calendar functions
▪ Built-in potentiometers
▪ Relay or NPN outputs
▪ Battery backup
