Eaton

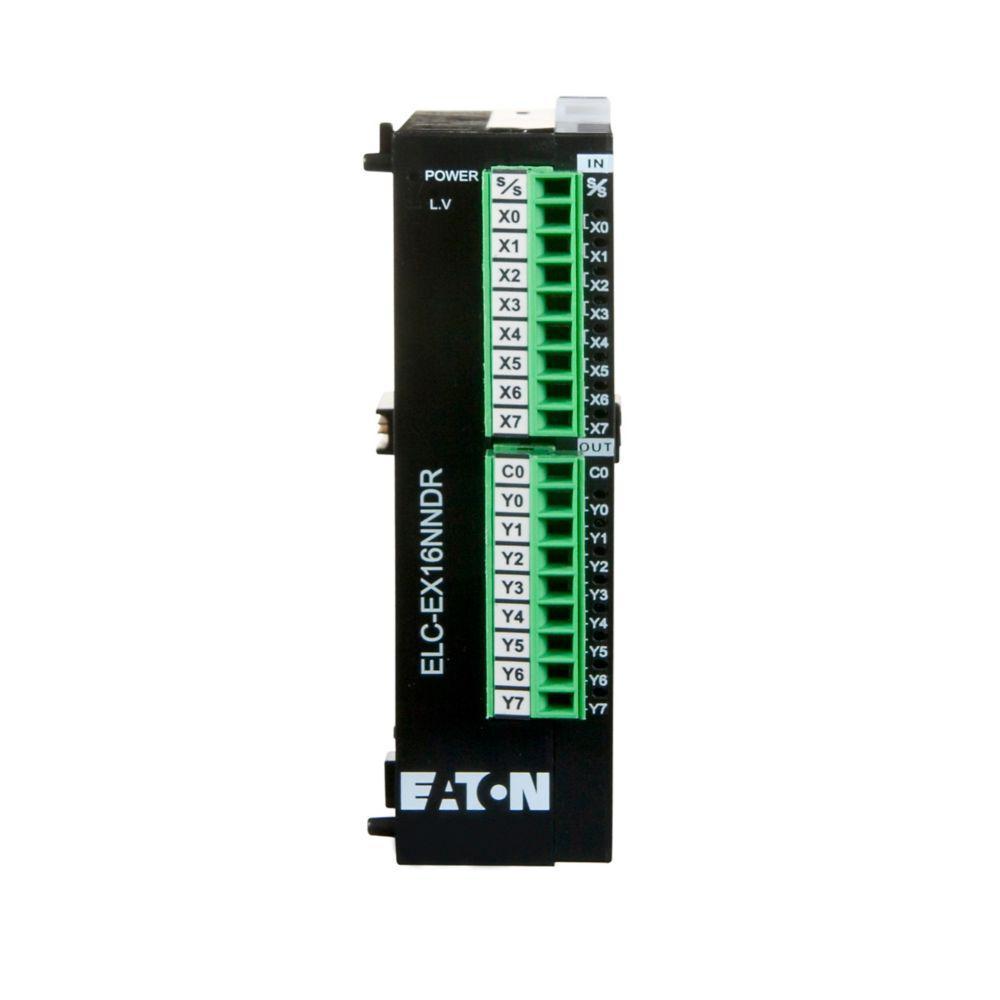

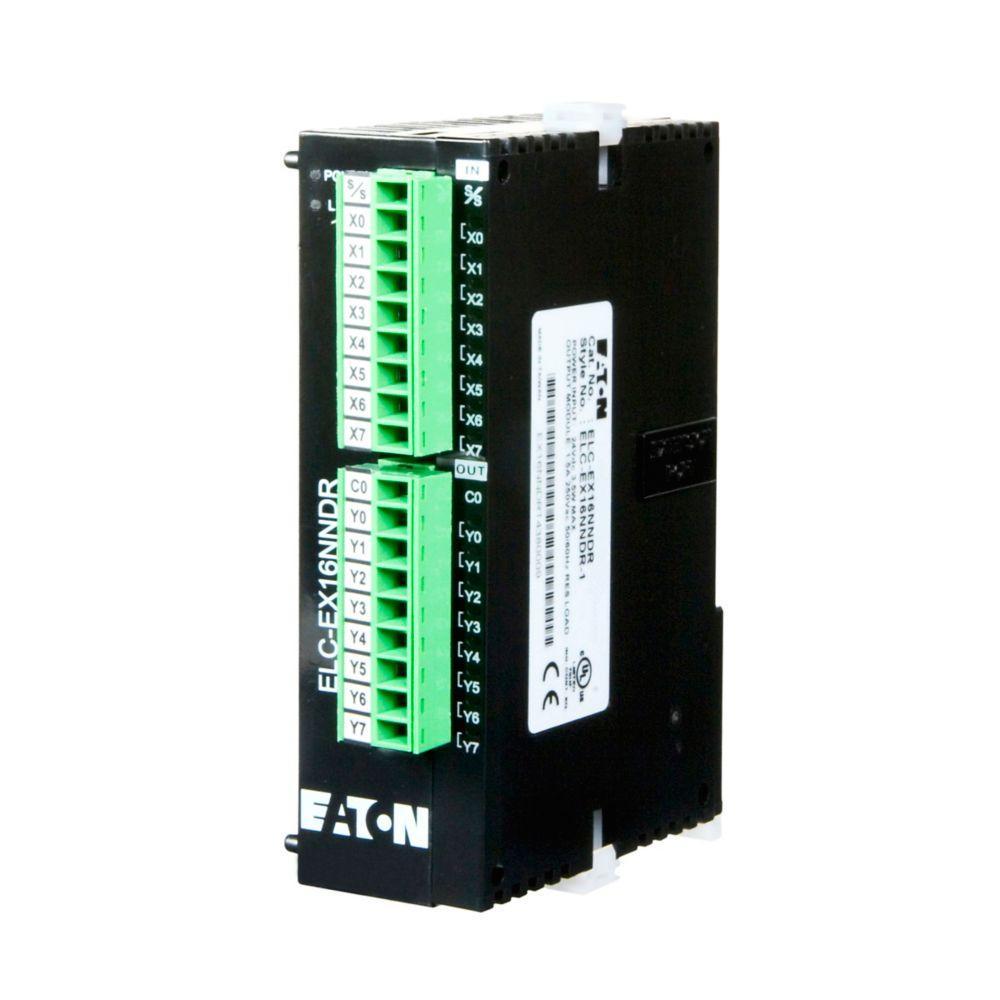

ELC-EX16NNDR C-H ELC Digital Exp Mod 16 I/O, 8 Input DC, 8 Output Relay 78211634304

Mouse over image to zoom, click to enlarge

  • ELC-EX16NNDR C-H ELC Digital Exp Mod 16 I/O, 8 Input DC, 8 Output Relay 78211634304
  • ELC-EX16NNDR C-H ELC Digital Exp Mod 16 I/O, 8 Input DC, 8 Output Relay 78211634304
  • ELC-EX16NNDR C-H ELC Digital Exp Mod 16 I/O, 8 Input DC, 8 Output Relay 78211634304

Description: EATON Digital Expansion Module, Right Side Bus, Series: ELC, 24 V DC, 90 mA, 3 to 6 W Power, 16 Inputs, 16 Outputs, DB 9-Pin Female to 8-Pin DIN Terminal, 0 to 55 deg C, 4-1/2 in L x 3-3/4 in W x 2-3/4 in H Dimensions

Manufacturer PN: ELC-EX16NNDR

UPC:  78211634304

Kendall Electric Inc PN: 2314345

Invoice Description:

ELC-EX16NNDR C-H ELC Digital Exp Mod 16 I/O, 8 Input DC, 8 Output Relay 78211634304


SPEC SHEET

How Can We Make This Page Better?

EATON ELC-EX16NNDR Right Side Bus Digital Expansion Module, 24 V DC, 90 mA, 16 Inputs, 16 Outputs

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Designed using the latest technology, the Eaton Logic Controllers (ELCs) are small and feature-rich. An abundance of module options allow users to specify their ELC solution so that it is "just right," satisfying requirements and saving space, time and money.
EATON Digital Expansion Module, Right Side Bus, Series: ELC, 24 V DC, 90 mA, 3 to 6 W Power, 16 Inputs, 16 Outputs, DB 9-Pin Female to 8-Pin DIN Terminal, 0 to 55 deg C, 4-1/2 in L x 3-3/4 in W x 2-3/4 in H Dimensions

Specifications

 Amperage Rating 90 mA
 Application Commercial, Institutional Buildings and Structures Applications
 Brand Name EATON
 Dimensions 4-1/2 in L x 3-3/4 in W x 2-3/4 in H
 Manufacturer Part Number ELC-EX16NNDR
 Number of Outputs 16
 PART NUMBER KEYWORDS ELC-EX16NNDR ; ELCEX16NNDR ; 9200812 ; 782116343041 ; 78211634304 ; 00782116343041
 Power Rating 3 to 6 W
 Series ELC
 Standards/Approvals UL Listed
 Temperature Rating 0 to 55 deg C
 Terminal Type DB 9-Pin Female to 8-Pin DIN
 Type Right Side Bus
 Voltage Rating 24 V DC

Features

▪ Modular and expandable PLCs with distributed I/O capability
▪ Digital, analog, thermocouple and RTD I/O
▪ Relay or transistor outputs
▪ High current relay output module
▪ High speed pulse capture and high speed pulse output up to 200 kHz
▪ Two RS 485 ModBus serial ports
▪ Distributed I/O adapters for ethernet IP, ModBus TCP, DeviceNet, PROFIBUS DP and RS 485
▪ 16 points
