Eaton

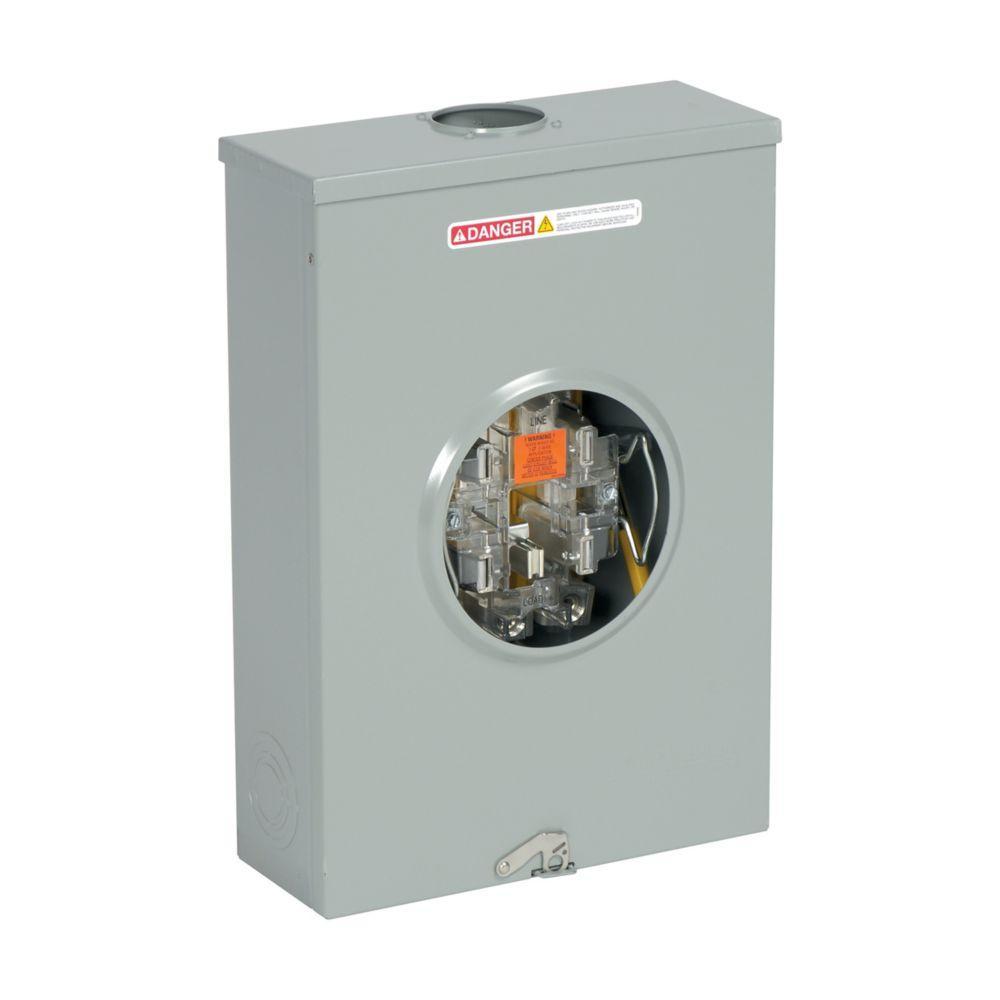

EL20L73GR2N B-LINE LB 200A 7J OH/UG

Mouse over image to zoom, click to enlarge

  • EL20L73GR2N B-LINE LB 200A 7J OH/UG
  • EL20L73GR2N B-LINE LB 200A 7J OH/UG

Description: B-Line Single Meter Socket, 1-Position, 600 V AC, 200 A, 3 ph, Overhead/Test Block Bypass/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Ring Cover, Surface Mounting, NEMA 3R Enclosure, 13-1/4 in W x 5-1/2 in D x 22-1/4 in H Dimensions

Manufacturer PN: EL20L73GR2N

UPC:  78205158363

Kendall Electric Inc PN: 4591371

Invoice Description:

EL20L73GR2N B-LINE LB 200A 7J OH/UG


SPEC SHEET

▸ See All in Safety Socket Bypass Meter Sockets


How Can We Make This Page Better?

B-Line EL20L73GR2N 1-Position Single Meter Socket, 600 V AC, 200 A, 3 Phase, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The B-Line series single meter sockets are single position, self-contained meter sockets that offering housing capabilities for the utilities' electrical watt-hour meters in both residential and commercial buildings.
B-Line Single Meter Socket, 1-Position, 600 V AC, 200 A, 3 ph, Overhead/Test Block Bypass/Underground Feed, 4 Jaws, 6 AWG to 250 kcmil Wire, Ring Cover, Surface Mounting, NEMA 3R Enclosure, 13-1/4 in W x 5-1/2 in D x 22-1/4 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Self-contained MeteRing, Lever Bypasses Applications
 Brand Name B-Line
 Cover Type Ring
 Dimensions 13-1/4 in W x 5-1/2 in D x 22-1/4 in H
 Enclosure NEMA 3R
 Feed Type Overhead/Test Block Bypass/Underground
 Manufacturer Part Number EL20L73GR2N
 Mounting Type Surface
 Number of Jaws 4
 Phase 3
 Standards/Approvals UL 414
 Type 1-Position
 Voltage Rating 600 V AC
