Eaton

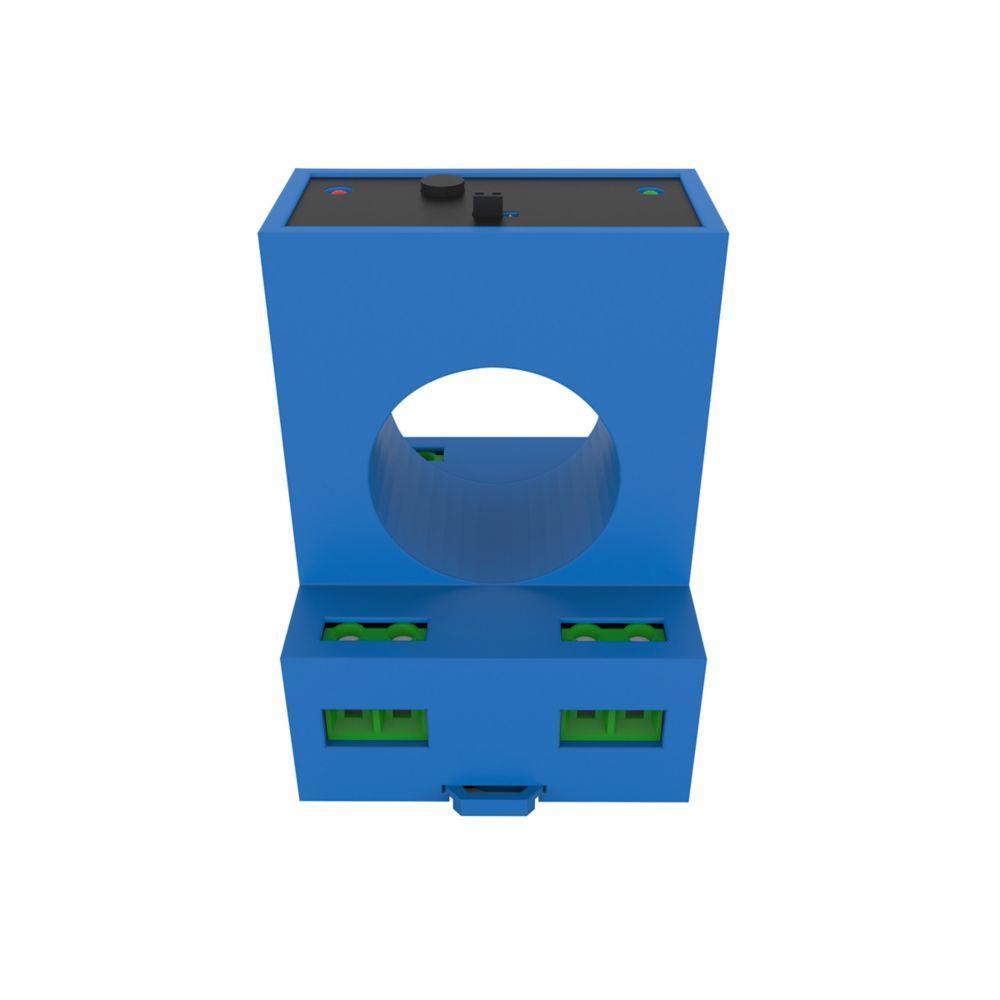

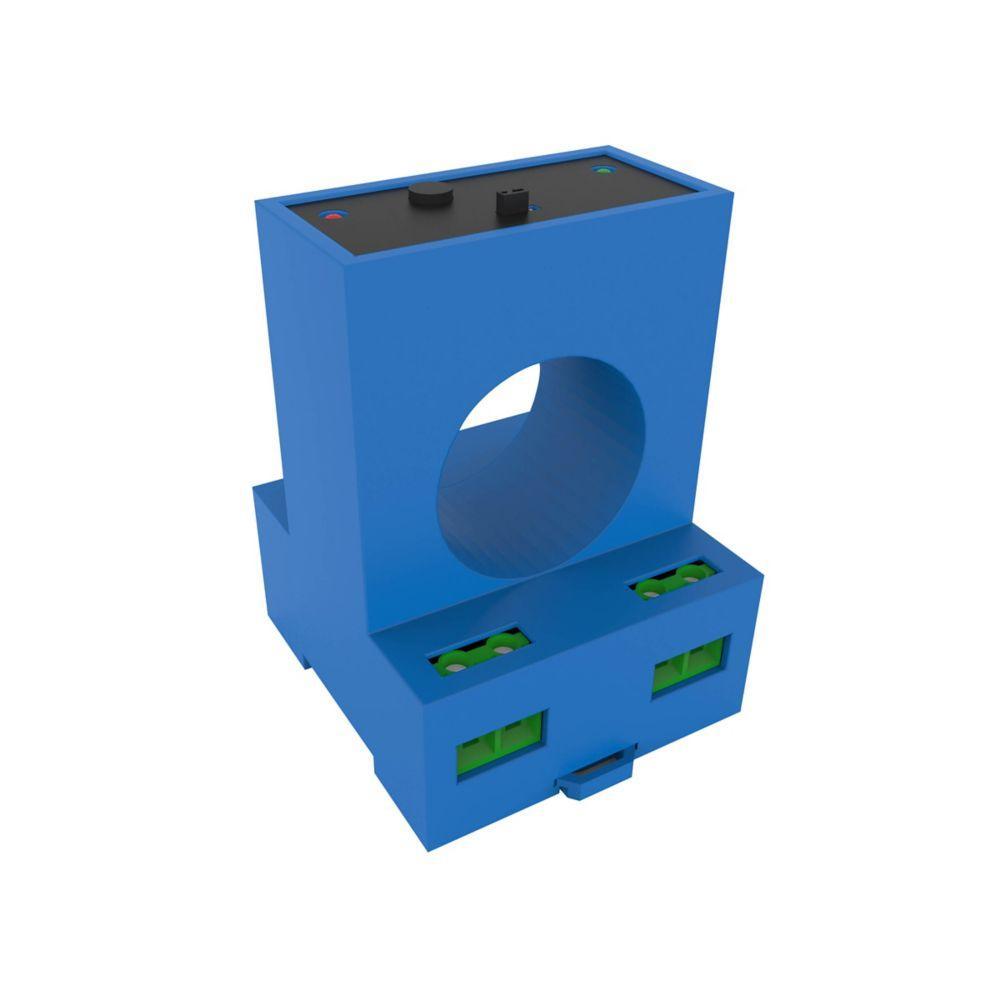

EGFL1SPDTDET3 EATON GND FAULT SENSOR 2"AP,FORM C RELAY,120VAC,AUTO RESET,D-EN

Mouse over image to zoom, click to enlarge

  • EGFL1SPDTDET3 EATON GND FAULT SENSOR 2"AP,FORM C RELAY,120VAC,AUTO RESET,D-EN
  • EGFL1SPDTDET3 EATON GND FAULT SENSOR 2"AP,FORM C RELAY,120VAC,AUTO RESET,D-EN
  • EGFL1SPDTDET3 EATON GND FAULT SENSOR 2"AP,FORM C RELAY,120VAC,AUTO RESET,D-EN

Description: EATON CurrentWatch™ Current Switch, Solid Core Ground Fault Sensor, Series: EGFL, 15 to 200 ms Response, 10 Output, 120 V AC, 1 A, 50 to 400 Hz Frequency, Screw Terminal Connection, 3.25 in L x 2.99 in W x 4.2 in H Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Manufacturer PN: EGFL1SPDTDET3

Kendall Electric Inc PN: 4402078

Invoice Description:

EGFL1SPDTDET3 EATON GND FAULT SENSOR 2"AP,FORM C RELAY,120VAC,AUTO RESET,D-EN


SPEC SHEET

▸ See All in Current Sensors


How Can We Make This Page Better?

EATON CurrentWatch™ EGFL1SPDTDET3 Solid Core Ground Fault Sensor Current Switch, 15 to 200 ms Response, SPDT Relay Output, 120 V AC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The CurrentWatch EGFL Series from EATON electrical sector is a family of ground fault (earth leakage) sensors. Ground fault sensors help protect people, products and processes from damage by ground fault conditions by monitoring all current carrying conductors in grounded 1 and 3-phase delta or wye systems. The EGFL Series is available with either solid state or mechanical relay outputs. The EGFL Series with mechanical relays are available in solid core housings with a choice of NO or NC SPST latching relays and a SPDT Form C relay with auto-reset. All mechanical models can be ordered with a fixed setpoint or with a "triset" option, which provides three factory set, field adjustable set points.
EATON CurrentWatch™ Current Switch, Solid Core Ground Fault Sensor, Series: EGFL, 15 to 200 ms Response, 10 Output, 120 V AC, 1 A, 50 to 400 Hz Frequency, Screw Terminal Connection, 3.25 in L x 2.99 in W x 4.2 in H Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 1 A
 Application Personnel Protection (Typically 5 mA), Equipment Protection (Typically 10 or 30 mA) and Regulatory
 Brand Name EATON
 Connection Type Screw Terminal
 Environmental Conditions 0 to 95% Non-Condensing Relative Humidity
 Frequency Rating 50 to 400 Hz
 Manufacturer Part Number EGFL1SPDTDET3
 Operating Temperature -4 to 122 deg F
 Output Type SPDT Relay
 PART NUMBER KEYWORDS EGFL1SPDTDET3 ; 10318424 ; 786685223704 ; 78668522370 ; 00786685223704
 Response Time 15 to 200 ms
 Series EGFL
 Size 3.25 in L x 2.99 in W x 4.2 in H
 Standards/Approvals UL/CUL listed,RoHS Compliant
 Type Solid Core Ground Fault Sensor
 Voltage Rating 120 V AC

Features

▪ Broad range of options to meet application needs -mechanical relays, normally energized or normally de-energized contacts
▪ Setpoint options maximize ease of use and application flexibility field selectable 5, 10 or 30 ma setpoints on the EGF "triset" models make user adjustments fast, sure and convenient
▪ Compatible with standard equipment application on single and three phase systems, ideal for use with shunt trip breakers, and magnetically isolated from monitored circuit and control power

Resources

 Product Data Sheet
