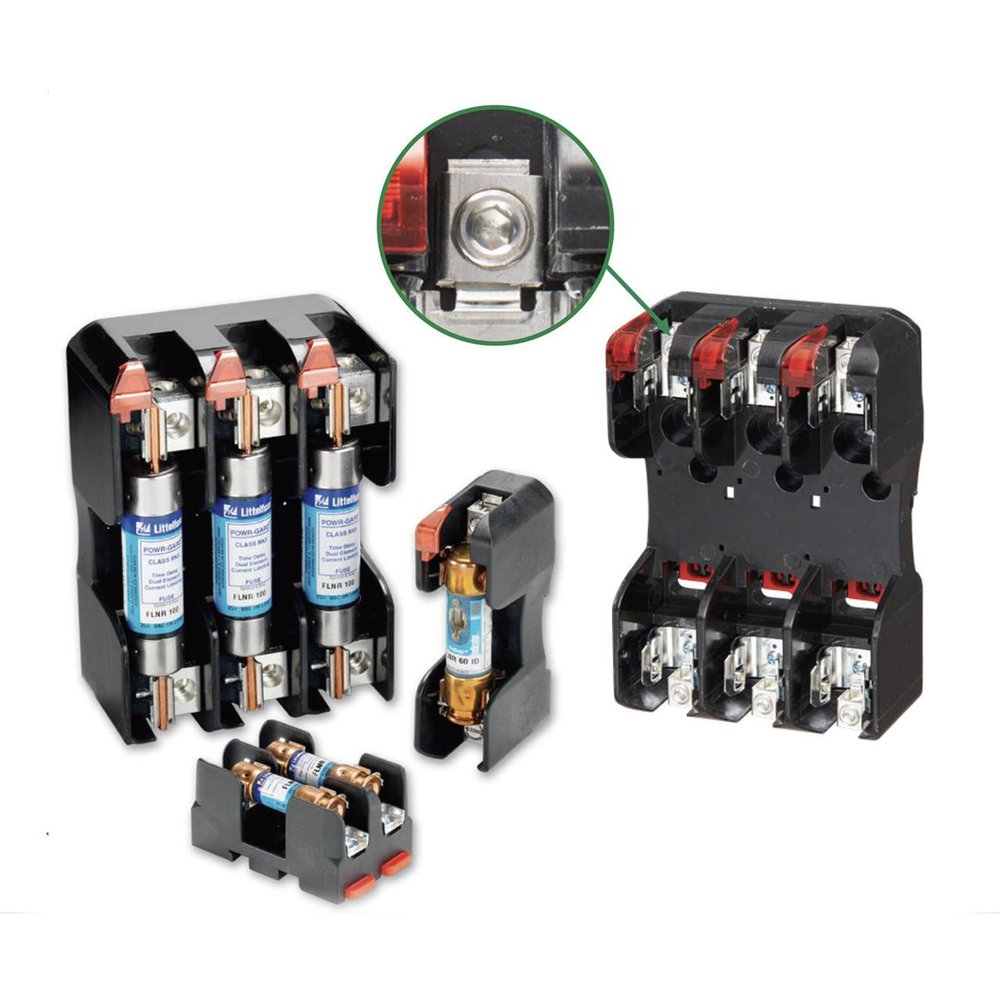

LFR60100-1CID LITTELFUSE 600V CLASS R BLOCK 100A 1 POLE

Mouse over image to zoom, click to enlarge

Description: Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFR, 600 V AC, 100 A, 1 Pole, Class: R, Box Lug, 6 to 2/0 AWG Wire, DIN Rail Mount, 5.874 in Fuse Length, 1.311 in Fuse Dia, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse, Thermoplastic, 9 in L x 2.1 in W x 2.6 in H

Manufacturer PN: LFR60100-1CID

UPC:  07945818146

Kendall Electric Inc PN: 4701579

Invoice Description:

LFR60100-1CID LITTELFUSE 600V CLASS R BLOCK 100A 1 POLE


SPEC SHEET

How Can We Make This Page Better?

Littelfuse® POWR-GARD® LFR60100-1CID Indicating Fuse Block, 600 V AC, 100 A, Class: R, 6 to 2/0 AWG Wire, 1 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The new Littelfuse® class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate A rejection feature, which only allows class R fuses to be inserted.
Littelfuse® POWR-GARD® Fuse Block, Indicating, Series: LFR, 600 V AC, 100 A, 1 Pole, Class: R, Box Lug, 6 to 2/0 AWG Wire, DIN Rail Mount, 5.874 in Fuse Length, 1.311 in Fuse Dia, 130 deg C, For Use With: FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse, Thermoplastic, 9 in L x 2.1 in W x 2.6 in H

Specifications

 Amperage Rating 100 A
 Brand Name Littelfuse®
 Class R
 Connection Type Box Lug
 Dimensions 9 in L x 2.1 in W x 2.6 in H
 Fuse Diameter 1.311 in
 Fuse Length 5.874 in
 Manufacturer Part Number LFR60100-1CID
 Material Thermoplastic
 Mounting Type DIN Rail
 Number of Poles 1
 PART NUMBER KEYWORDS LFR60100-1CID ; LFR601001CID ; 11023087 ; 079458181463 ; 79458181463 ; 07945818146 ; 00079458181463
 Series LFR
 Standards/Approvals RoHS Compliant|UL Listed|CSA Certified|94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
 Suitable For Use With FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
 Temperature Rating 130 deg C
 Type Indicating
 Voltage Rating 600 V AC

Features

▪ Universal mounting holes for easy replacement
▪ Only 1-hand is required to release from DIN rail (lock open lock closed)
▪ Reinforced fuse clips are standard on all class H and class R fuse blocks
▪ <0.6 mA at 600 VAC leakage current
▪ 200 kA rms symmetrical withstand rating
▪ Clip designs maximize electrical contact and minimize heat rise
▪ DIN rail releasable for all non-knife blade style fuses
▪ Lead (Pb) free
▪ Indication offered on most 250 and 600 VAC versions
