Eaton

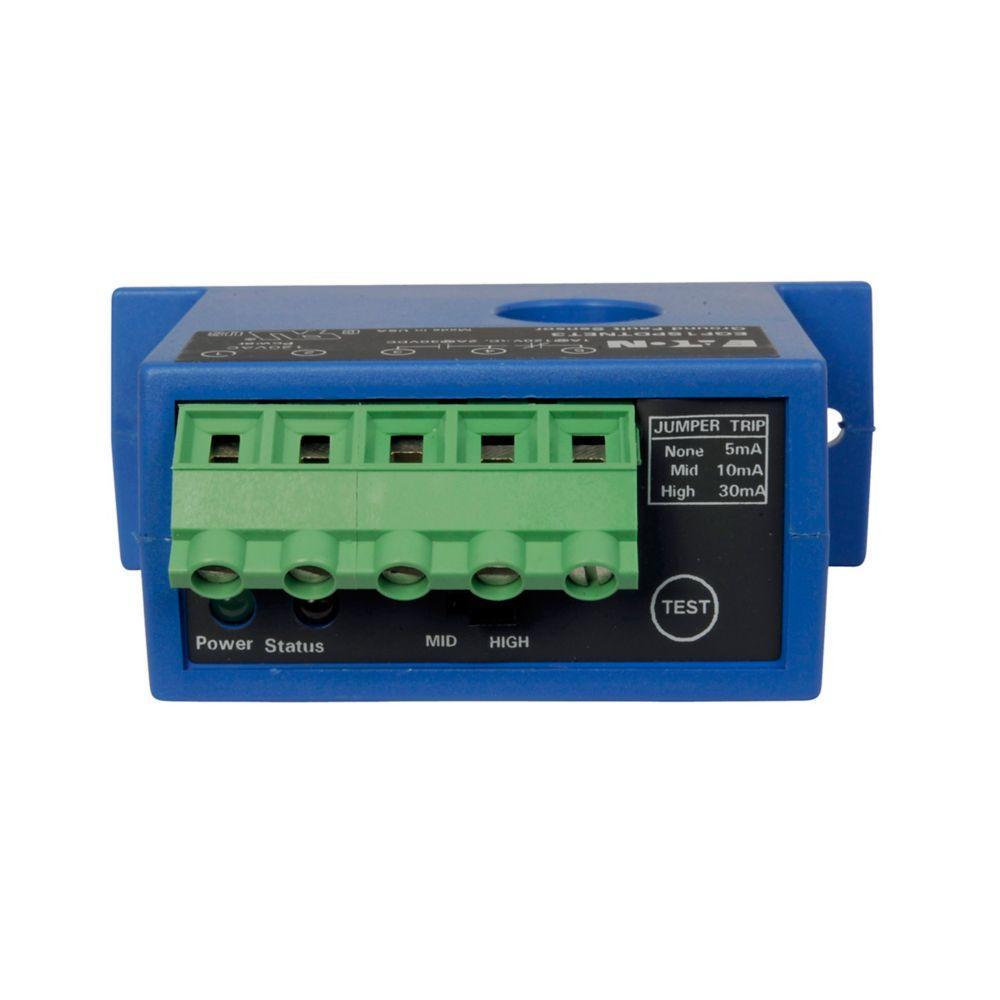

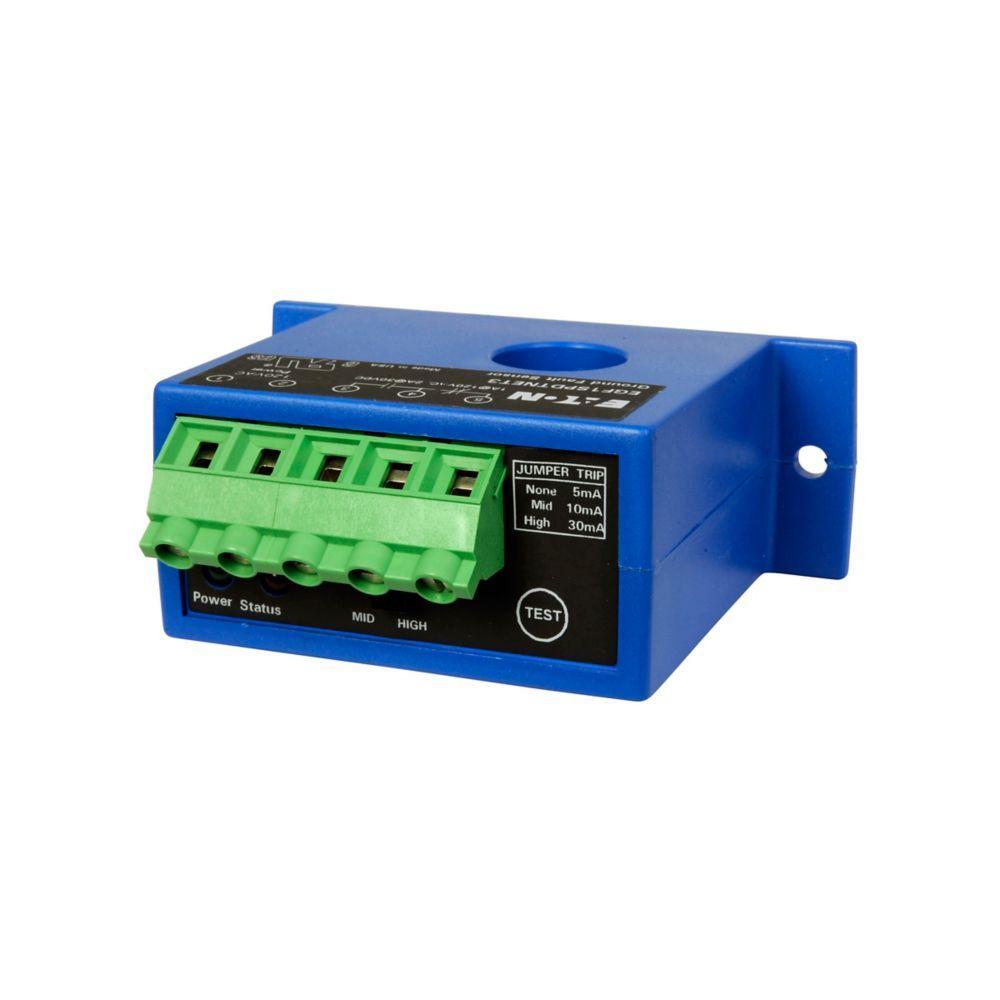

EGF1SPDTNET3 CH GFI SENSOR,5-10-30MA,SPDT,AUTO RESET,NORM. ENER,120VAC PWR

Mouse over image to zoom, click to enlarge

  • EGF1SPDTNET3 CH GFI SENSOR,5-10-30MA,SPDT,AUTO RESET,NORM. ENER,120VAC PWR
  • EGF1SPDTNET3 CH GFI SENSOR,5-10-30MA,SPDT,AUTO RESET,NORM. ENER,120VAC PWR
  • EGF1SPDTNET3 CH GFI SENSOR,5-10-30MA,SPDT,AUTO RESET,NORM. ENER,120VAC PWR

Description: EATON CurrentWatch™ Current Switch, Solid Core Ground Fault Sensor, Series: EGF, 15 to 200 ms Response, 10 Output, 120 V AC, 1 A, 50 to 400 Hz Frequency, Screw Terminal Connection, 1.5 in L x 2.5 in W x 3.88 in H Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Manufacturer PN: EGF1SPDTNET3

UPC:  78668512030

Kendall Electric Inc PN: 4701578

Invoice Description:

EGF1SPDTNET3 CH GFI SENSOR,5-10-30MA,SPDT,AUTO RESET,NORM. ENER,120VAC PWR


SPEC SHEET

▸ See All in Current Sensors


How Can We Make This Page Better?

EATON CurrentWatch™ EGF1SPDTNET3 Solid Core Ground Fault Sensor Current Switch, 15 to 200 ms Response, SPDT Relay Output, 120 V AC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The CurrentWatch EGF Series from EATON electrical sector is a family of ground fault (earth leakage) sensors. Ground fault sensors help protect people, products and processes from damage by ground fault conditions by monitoring all current carrying conductors in grounded 1 and 3-phase delta or wye systems. The EGF Series with solid state outputs offers the benefit of reliable, long lasting solid state switches. Solid state design provides unlimited switch operating life, superior resistance to shock and vibration, zero off state leakage, high switch speeds and high input output isolation. The EGF Series with mechanical relay outputs is available in solid core housings with a choice of NO or NC SPST latching relays and a SPDT Form C relay with auto-reset.
EATON CurrentWatch™ Current Switch, Solid Core Ground Fault Sensor, Series: EGF, 15 to 200 ms Response, 10 Output, 120 V AC, 1 A, 50 to 400 Hz Frequency, Screw Terminal Connection, 1.5 in L x 2.5 in W x 3.88 in H Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 1 A
 Application Personnel Protection (Typically 5 mA), Equipment Protection (Typically 10 or 30 mA) and Regulatory
 Brand Name EATON
 Connection Type Screw Terminal
 Environmental Conditions 0 to 95% Non-Condensing Relative Humidity
 Frequency Rating 50 to 400 Hz
 Manufacturer Part Number EGF1SPDTNET3
 Operating Temperature -4 to 122 deg F
 Output Type SPDT Relay
 PART NUMBER KEYWORDS EGF1SPDTNET3 ; 9647476 ; 786685120300 ; 78668512030 ; 00786685120300
 Response Time 15 to 200 ms
 Series EGF
 Size 1.5 in L x 2.5 in W x 3.88 in H
 Standards/Approvals UL/CUL listed,RoHS Compliant
 Type Solid Core Ground Fault Sensor
 Voltage Rating 120 V AC

Features

▪ Broad range of options to meet application needs no or NC, solid state or mechanical relays, normally energized or normally de-energized contacts
▪ Setpoint options maximize ease of use and application flexibility field selectable 5, 10 or 30 ma setpoints on the EGF "triset" models make user adjustments fast, sure and convenient
▪ Compatible with standard equipment application on single and three phase systems, ideal for use with shunt trip breakers, and magnetically isolated from monitored circuit and control power
