EDC2420SP CH CURRENT SENSOR,SPLIT,DC,4-20MA,50A-75A-100A ,24VAC/DC PWR

Mouse over image to zoom, click to enlarge

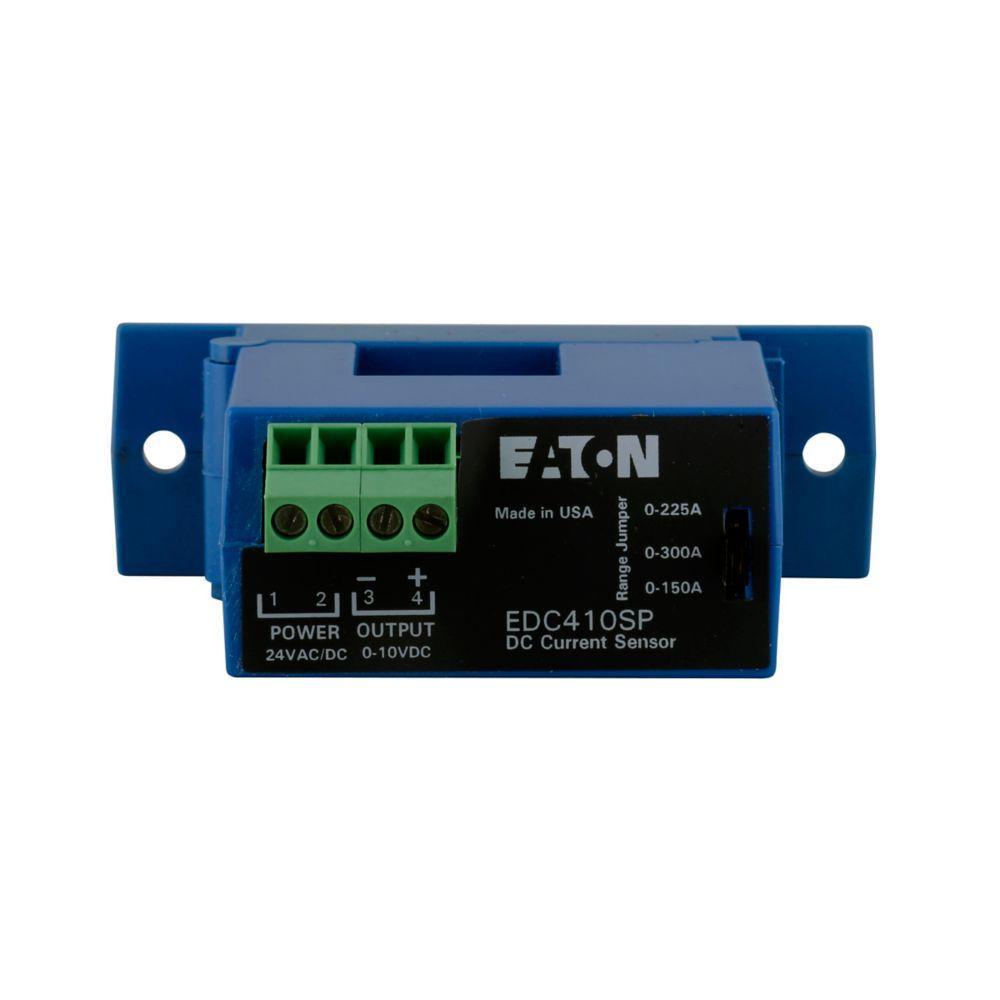

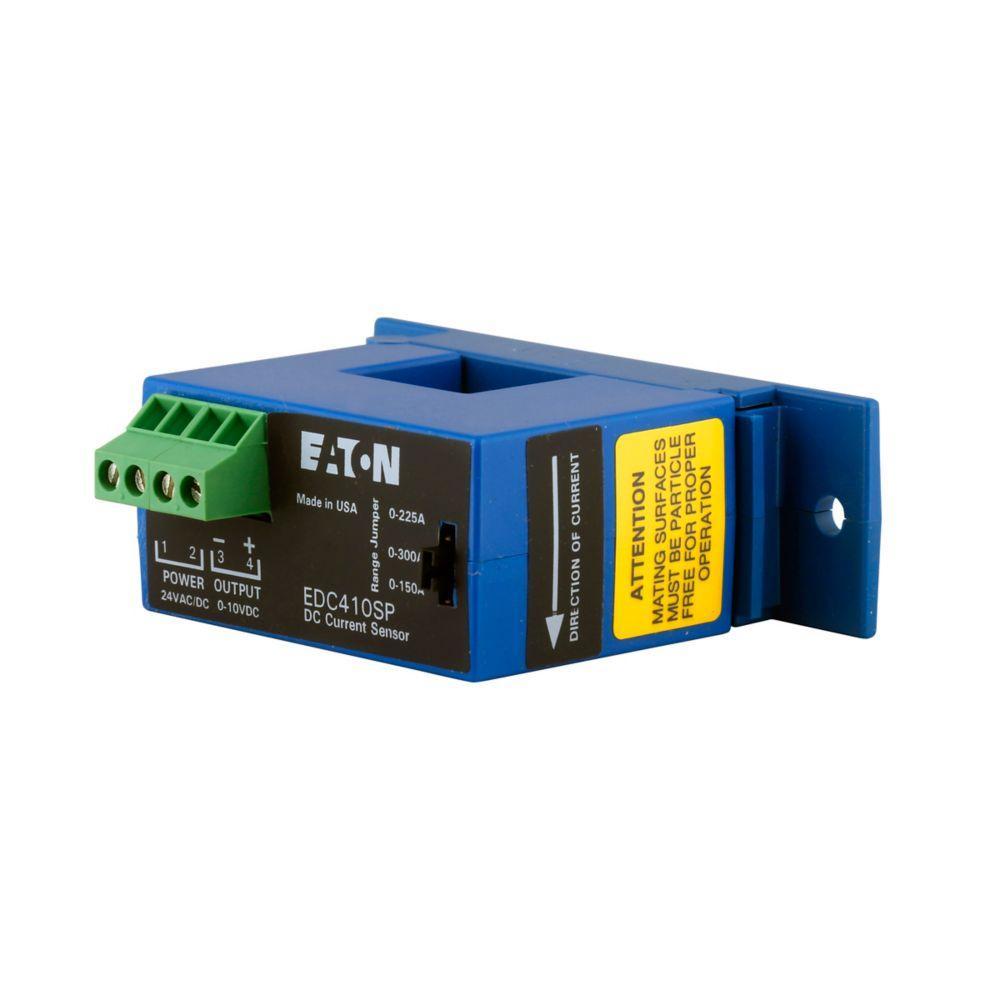

  • EDC2420SP CH CURRENT SENSOR,SPLIT,DC,4-20MA,50A-75A-100A ,24VAC/DC PWR
  • EDC2420SP CH CURRENT SENSOR,SPLIT,DC,4-20MA,50A-75A-100A ,24VAC/DC PWR
  • EDC2420SP CH CURRENT SENSOR,SPLIT,DC,4-20MA,50A-75A-100A ,24VAC/DC PWR

Description: EATON Current Sensor, Split Core Housing, Series: CurrentWatch EDC, Uni-Polar Output, 24 V AC/DC, 100 A, Screw Terminal Connection, 2.25 in H x 3.53 in W x 1.18 in D Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Manufacturer PN: EDC2420SP

UPC:  78668512067

Kendall Electric Inc PN: 3824368

Invoice Description:

EDC2420SP CH CURRENT SENSOR,SPLIT,DC,4-20MA,50A-75A-100A ,24VAC/DC PWR


SPEC SHEET

▸ See All in Current Sensors


How Can We Make This Page Better?

EATON EDC2420SP CurrentWatch EDC Split Core Housing Current Sensor, Uni-Polar Output, 24 V AC/DC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Available in split-core models for quick and easy installation. The CurrentWatch EDC Series combines a hall effect sensor and signal conditioner into a single package for use in DC current applications up to 300 A. The EDC Series has jumper-selected current input ranges and industry-standard outputs: 4–20 mA, 0–5 Vdc or 0–10 Vdc.
EATON Current Sensor, Split Core Housing, Series: CurrentWatch EDC, Uni-Polar Output, 24 V AC/DC, 100 A, Screw Terminal Connection, 2.25 in H x 3.53 in W x 1.18 in D Size, -4 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 100 A
 Application Battery Banks, Transportation and Electric Heating Elements
 Brand Name EATON
 Connection Type Screw Terminal
 Environmental Conditions 0 to 95% Non-Condensing Relative Humidity
 Manufacturer Part Number EDC2420SP
 Operating Temperature -4 to 122 deg F
 Output Type Uni-Polar
 PART NUMBER KEYWORDS EDC2420SP ; 9613053 ; 786685120676 ; 78668512067 ; 00786685120676
 Series CurrentWatch EDC
 Size 2.25 in H x 3.53 in W x 1.18 in D
 Standards/Approvals UL/CUL listed
 Type Split Core Housing
 Voltage Rating 24 V AC/DC

Features

▪ Jumper selectable ranges reduce inventory and eliminate zero or span pots
▪ Isolation output is magnetically isolated from the input for safety, also eliminating insertion loss (voltage drop)
▪ Internal power regulation cuts installation costs and works well, even with unregulated power
▪ Split core design and built-in mounting brackets - make installation quick and easy
