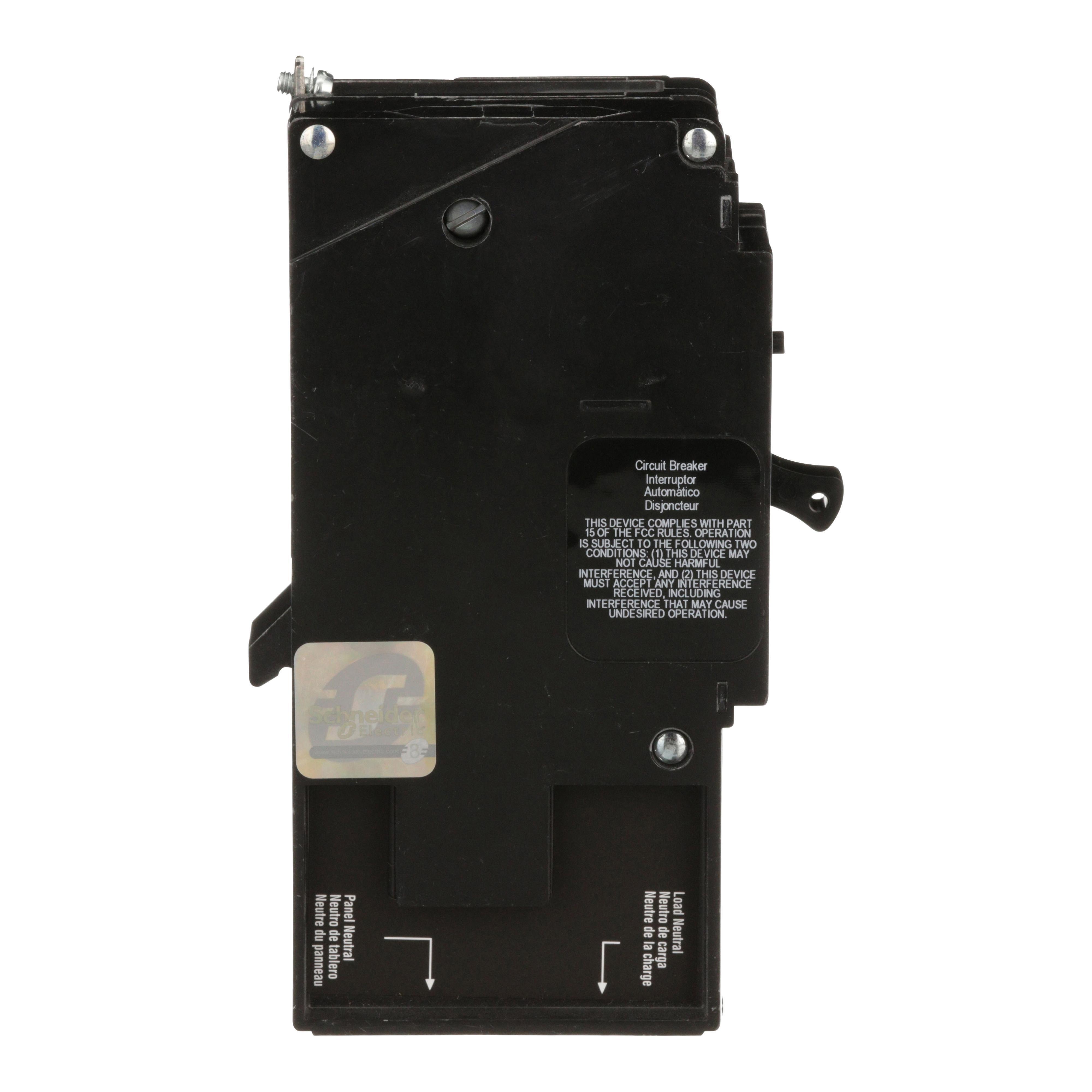

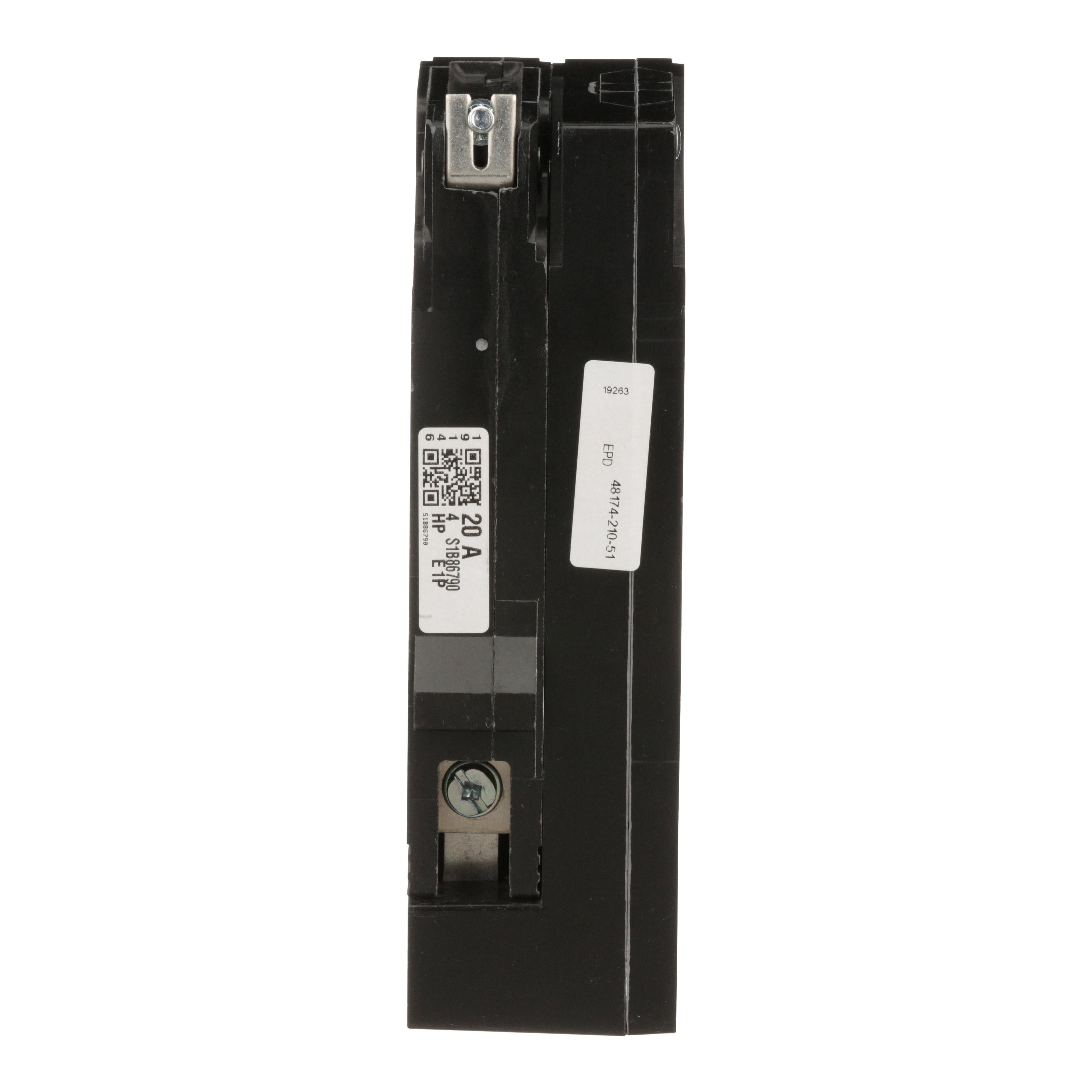

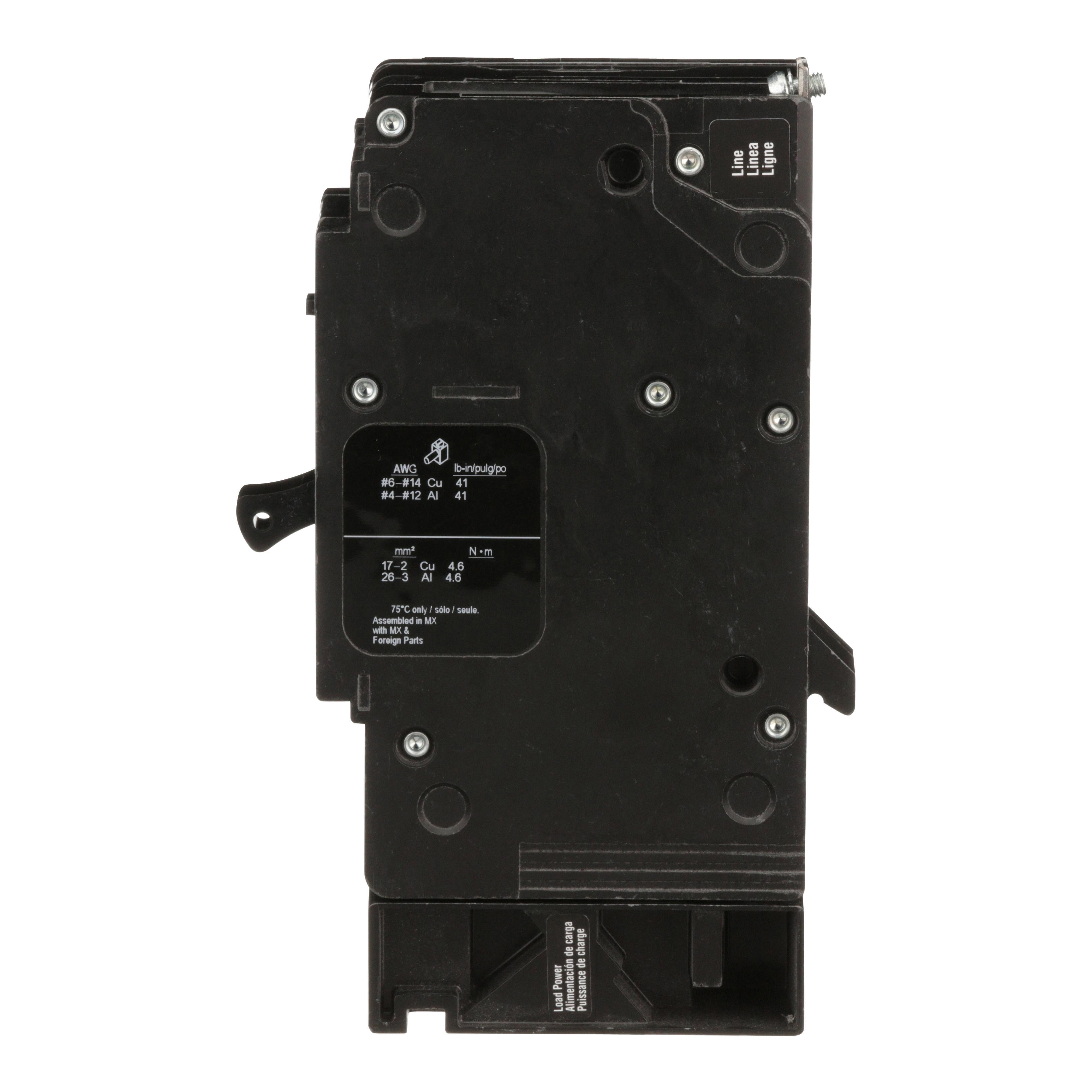

Description: Square D™ E-FRAME Miniature Circuit Breaker, Type EDB Class B Molded Case, 277 V AC, 20 A, 18 kA Interrupt, E Frame, Thermal Magnetic Trip, 875 A Trip, 1 Pole, Lug Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Bolt-On Mounting, 40 deg C, 4.05 in L x 1.96 in W x 6.64 in H Dimensions

Manufacturer PN: EDB14020EPD

UPC:  78590142504

Kendall Electric Inc PN: 3961199

Invoice Description:

EDB14020EPD SQD MINIATURE CIRCUIT


SPEC SHEET

How Can We Make This Page Better?

Square D™ E-FRAME EDB14020EPD Type EDB Class B Molded Case Miniature Circuit Breaker, 277 V AC, 20 A, 18 kA Interrupt, 1 Pole, Thermal Magnetic Trip

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.
Square D™ E-FRAME Miniature Circuit Breaker, Type EDB Class B Molded Case, 277 V AC, 20 A, 18 kA Interrupt, E Frame, Thermal Magnetic Trip, 875 A Trip, 1 Pole, Lug Connection, 14 to 6 AWG, 12 to 4 AWG Wire, Bolt-On Mounting, 40 deg C, 4.05 in L x 1.96 in W x 6.64 in H Dimensions

Specifications

 Amperage Rating 20 A
 Application Provides Overload and Short Circuit Protection Applications
 Brand Name Square D
 Connection Type Lug
 Dimensions 4.05 in L x 1.96 in W x 6.64 in H
 Frame E
 Manufacturer Part Number EDB14020EPD
 Mounting Type Bolt-On
 Number of Poles 1
 PART NUMBER KEYWORDS EDB14020EPD ; 9135072 ; 785901425045 ; 78590142504 ; 00785901425045 ; 0785901425045
 Standards/Approvals CSA Certified|PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov|RoHS Compliant|UL Listed
 Temperature Rating 40 deg C
 Trip Range 875 A
 Type Type EDB Class B Molded Case
 Voltage Rating 277 V AC

Features

▪ Used in lighting panelboards
▪ From 15A to 125A ratings
▪ Troubleshoot faster with Visi-Trip
