Eaton

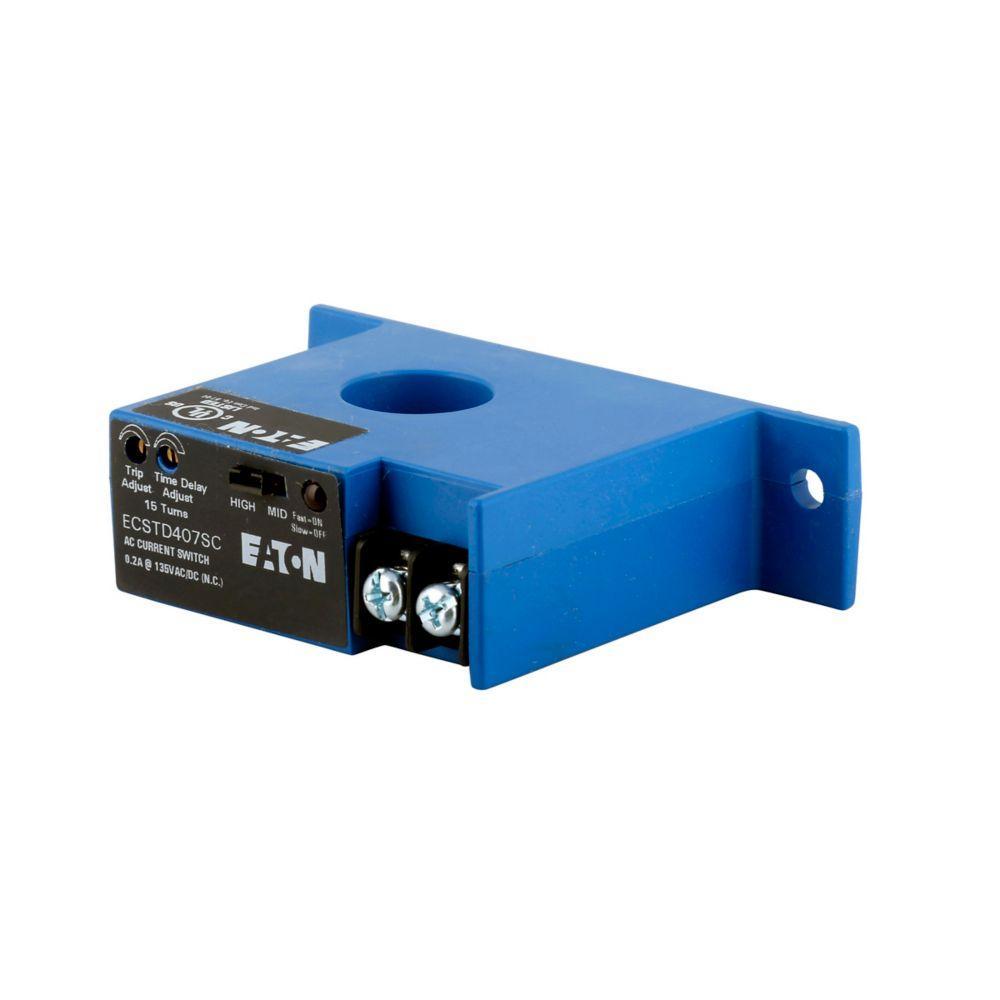

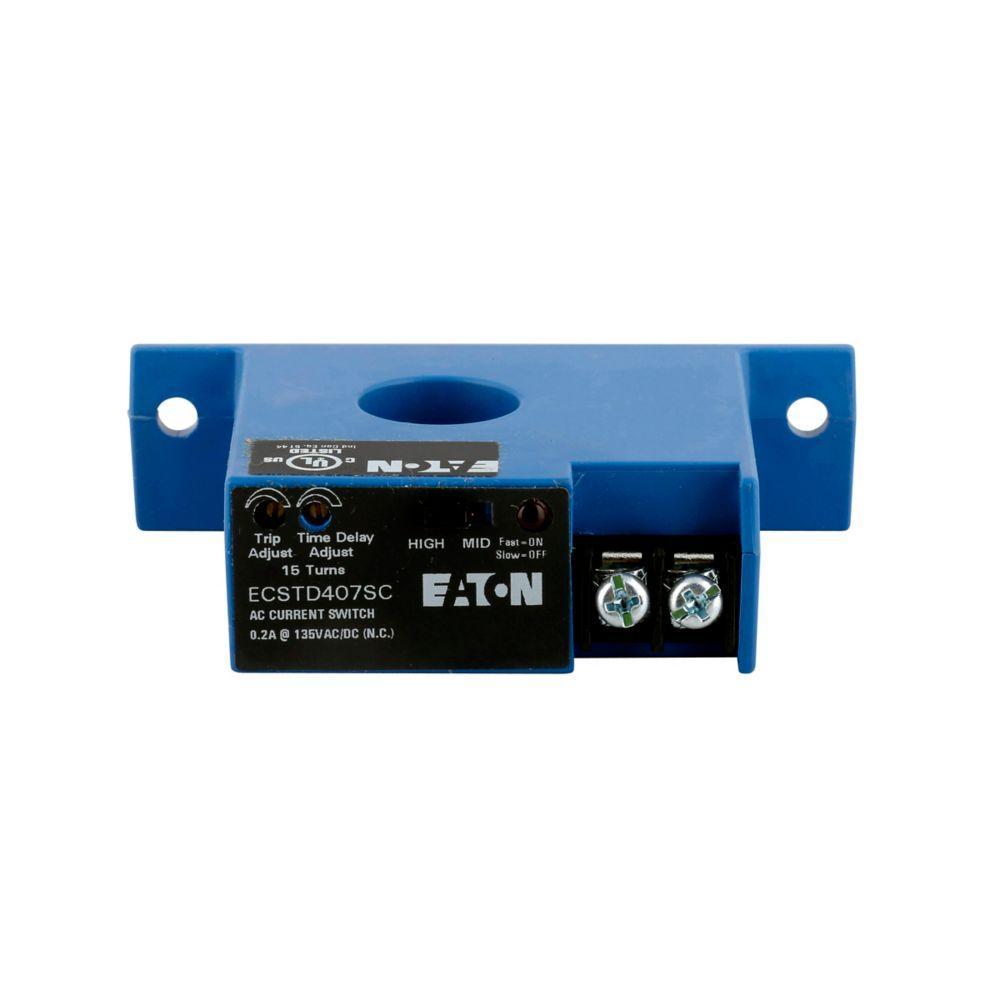

ECSTD407SC CH CURRENT SWITCH W/DELAY,NC,SOLID,SELFPWR,ADJ 1-175A,AC/DC OUT

Mouse over image to zoom, click to enlarge

  • ECSTD407SC CH CURRENT SWITCH W/DELAY,NC,SOLID,SELFPWR,ADJ 1-175A,AC/DC OUT
  • ECSTD407SC CH CURRENT SWITCH W/DELAY,NC,SOLID,SELFPWR,ADJ 1-175A,AC/DC OUT
  • ECSTD407SC CH CURRENT SWITCH W/DELAY,NC,SOLID,SELFPWR,ADJ 1-175A,AC/DC OUT

Description: EATON Current Switch, Self-Powered Solid Core Housing, Series: CurrentWatch ECSTD, 0.2 to 15 s Response, 10 Output, 135 V AC, 0.2 A, 50 to 100 Hz Frequency, Screw Terminal Connection, 2.18 in H x 3.5 in W x 0.93 in D Size, 5 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Manufacturer PN: ECSTD407SC

UPC:  78668512112

Kendall Electric Inc PN: 4373851

Invoice Description:

ECSTD407SC CH CURRENT SWITCH W/DELAY,NC,SOLID,SELFPWR,ADJ 1-175A,AC/DC OUT


SPEC SHEET

▸ See All in Current Sensors


How Can We Make This Page Better?

EATON ECSTD407SC CurrentWatch ECSTD Self-Powered Solid Core Housing Current Switch, 0.2 to 15 s Response, Solid State Relay Output, 135 V AC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The CurrentWatch ECSTD Series from EATON electrical sector is a family of high performance current operated switches with field adjustable time delay to help minimize nuisance trips during start up and operation. Designed for motor status applications where set point accuracy and repeatability are critical, the ECSTD Series offers a linear setpoint characteristic and constant hysteresis. Standard features include self-powering, jumper selectable ranges and a choice of outputs and housing styles.
EATON Current Switch, Self-Powered Solid Core Housing, Series: CurrentWatch ECSTD, 0.2 to 15 s Response, 10 Output, 135 V AC, 0.2 A, 50 to 100 Hz Frequency, Screw Terminal Connection, 2.18 in H x 3.5 in W x 0.93 in D Size, 5 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 0.2 A
 Application Motor Protection and High Inrush/Temporary Overload Current
 Brand Name EATON
 Connection Type Screw Terminal
 Environmental Conditions 0 to 95% Non-Condensing Relative Humidity
 Frequency Rating 50 to 100 Hz
 Manufacturer Part Number ECSTD407SC
 Operating Temperature 5 to 122 deg F
 Output Type Solid State Relay
 PART NUMBER KEYWORDS ECSTD407SC ; 9612895 ; 786685121123 ; 78668512112 ; 00786685121123
 Response Time 0.2 to 15 s
 Series CurrentWatch ECSTD
 Size 2.18 in H x 3.5 in W x 0.93 in D
 Standards/Approvals UL 508|cUL Listed
 Type Self-Powered Solid Core Housing
 Voltage Rating 135 V AC

Features

▪ Adjustable start-up/ delay timer field adjustable from 0 to15 s to eliminate nuisance alarms due to start-up inrush or temporary over current conditions
▪ Improved ease of installation and use self-powered, split core models simplify installation, 1.0 A AC rating eliminates need for time delay relay and status LED provides visual indication of set point trip and contact action
▪ Industrial grade performance constant hysteresis and linear response characteristics enhance set point accuracy
