ECSTD401SC CH CURRENT SWITCH W/DELAY,NO,SOLID,SELFPWR,ADJ 1-175A,AC OUT

Mouse over image to zoom, click to enlarge

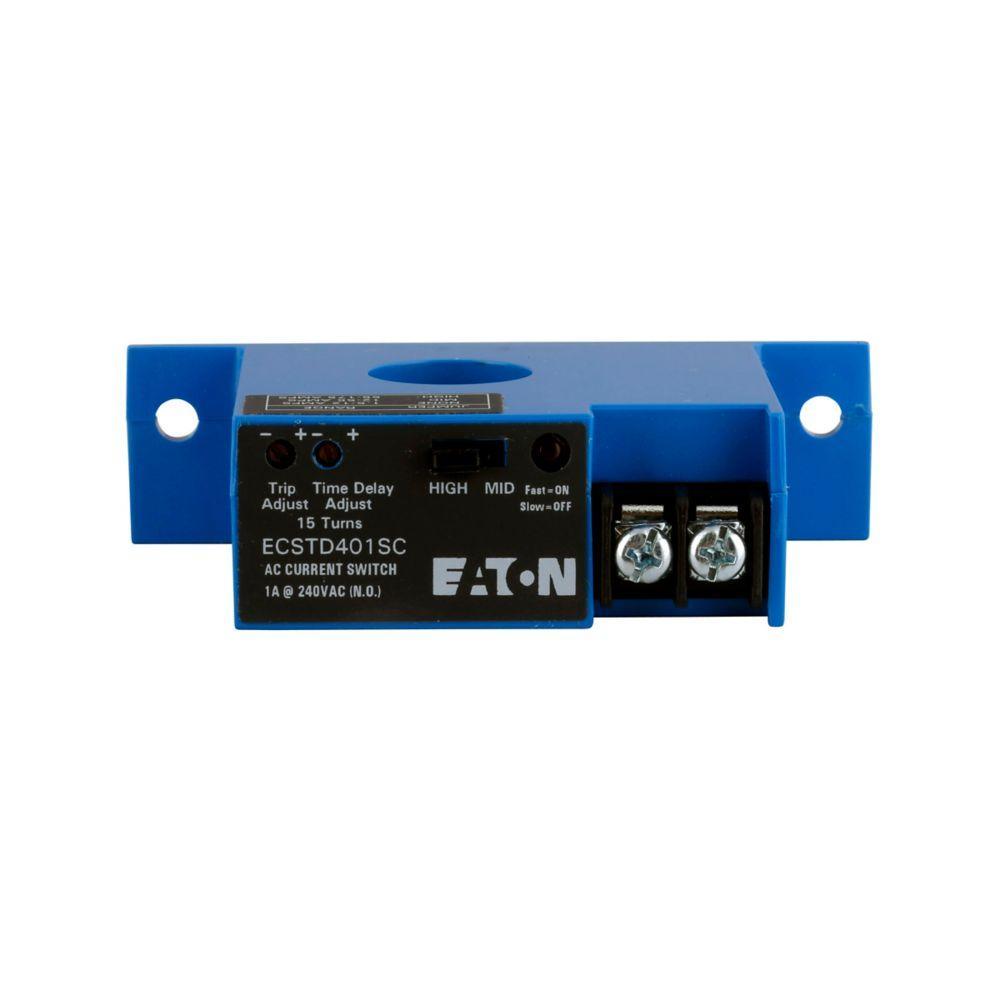

  • ECSTD401SC CH CURRENT SWITCH W/DELAY,NO,SOLID,SELFPWR,ADJ 1-175A,AC OUT

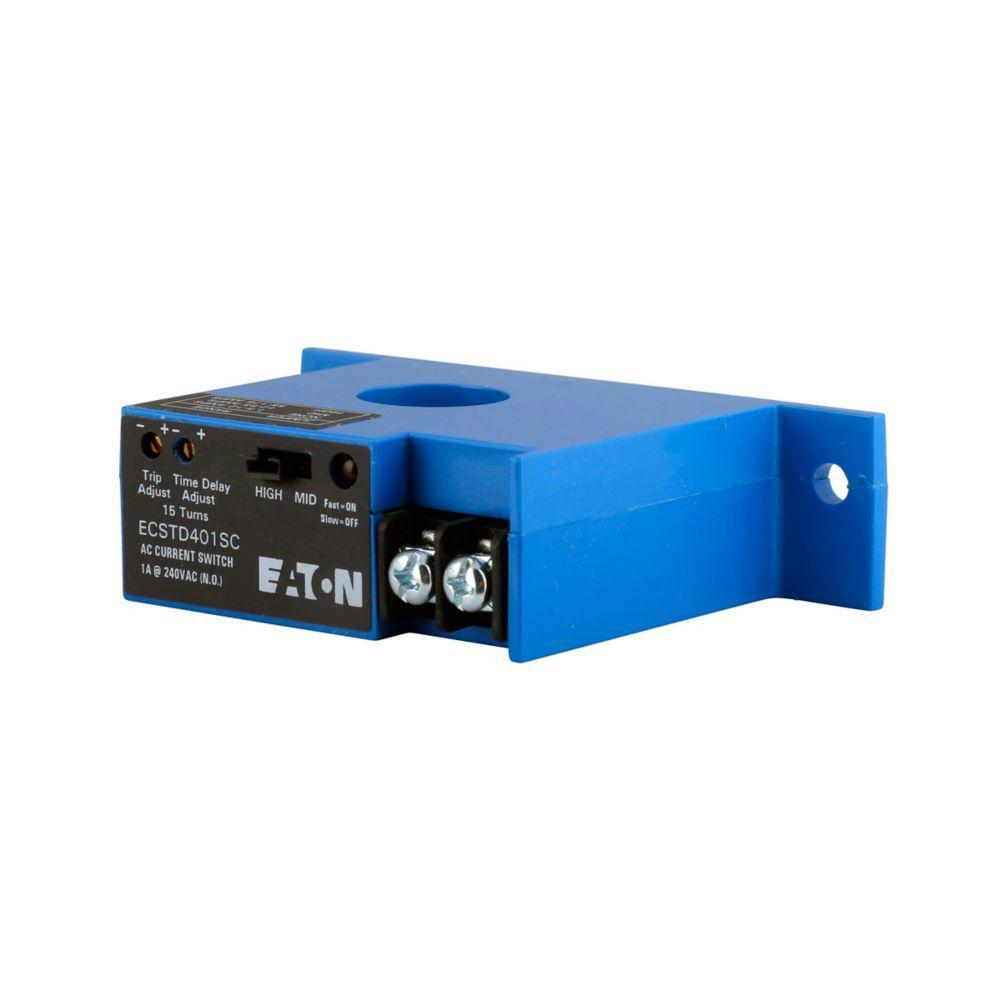

  • ECSTD401SC CH CURRENT SWITCH W/DELAY,NO,SOLID,SELFPWR,ADJ 1-175A,AC OUT
  • ECSTD401SC CH CURRENT SWITCH W/DELAY,NO,SOLID,SELFPWR,ADJ 1-175A,AC OUT

Description: EATON CurrentWatch™ Current Switch, Series: ECSTD, 0.2 to 15 s Response, 10 Output, 240 V AC, 175 A, 50 to 100 Hz Frequency, Screw Connection, LED Indicator Light Source, 2.18 in L x 0.93 in W x 3.5 in H Size, Solid Core Housing Enclosure, -5 to 122 deg F Operating, Panel Mounting, Environmental Conditions: 0 to 95% Relative Humidity

Manufacturer PN: ECSTD401SC

UPC:  78668512107

Kendall Electric Inc PN: 4197602

Invoice Description:

ECSTD401SC CH CURRENT SWITCH W/DELAY,NO,SOLID,SELFPWR,ADJ 1-175A,AC OUT


SPEC SHEET

▸ See All in Current Sensors


How Can We Make This Page Better?

EATON CurrentWatch™ ECSTD401SC Current Switch, 0.2 to 15 s Response, 1NO Contact Output, 240 V AC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The CurrentWatch™ ECSTD Series from EATON's electrical sector is a family of high performance current operated switches with field adjustable time delay to help minimize nuisance trips during start-up and operation. Designed for motor status applications where set point accuracy and repeatability are critical, the ECSTD Series offers a linear set point characteristic and constant hysteresis. Standard features include self-powering, jumper selectable ranges and a choice of outputs and housing styles.
EATON CurrentWatch™ Current Switch, Series: ECSTD, 0.2 to 15 s Response, 10 Output, 240 V AC, 175 A, 50 to 100 Hz Frequency, Screw Connection, LED Indicator Light Source, 2.18 in L x 0.93 in W x 3.5 in H Size, Solid Core Housing Enclosure, -5 to 122 deg F Operating, Panel Mounting, Environmental Conditions: 0 to 95% Relative Humidity

Specifications

 Amperage Rating 175 A
 Brand Name EATON
 Connection Type Screw
 Enclosure Solid Core Housing
 Environmental Conditions 0 to 95% Relative Humidity
 Frequency Rating 50 to 100 Hz
 Manufacturer Part Number ECSTD401SC
 Mounting Type Panel
 Operating Temperature -5 to 122 deg F
 Output Type 1NO Contact
 PART NUMBER KEYWORDS ECSTD401SC ; 9612890 ; 786685121079 ; 78668512107 ; 00786685121079
 Response Time 0.2 to 15 s
 Series ECSTD
 Size 2.18 in L x 0.93 in W x 3.5 in H
 Standards/Approvals RoHS Compliant
 Voltage Rating 240 V AC

Features

▪ Non-condensing
▪ Adjustable start-up/delay timer field adjustable from 0 to 15 s to eliminate nuisance alarms due to start-up inrush or temporary over current conditions
▪ Choice of NO-NC AC or universal outputs contact ratings of 1 A at 240 VAC or universal outputs of 0.15 A at 240 VAC/DC (NO models) and 0.2 A at 135 VAC/DC (NC models) for use with most standard motor control systems
▪ Improved ease of installation and use self-powered, split core models simplify installation, 1 A AC rating eliminates need for time delay relay and status LED provides visual indication of set point trip and contact action
▪ Industrial grade performance constant hysteresis and linear response characteristics enhance set point accuracy
▪ Adjustable 1.5 to 12/12 to 55/50 to 175 A set points
▪ Isolated solid state relay contact configuration
▪ UL94 V-0 flammability rated plastic enclosure
▪ Monitor up to 175 A, switch up to 1 a maximum AC current
▪ 3/4 in aperture
