Eaton

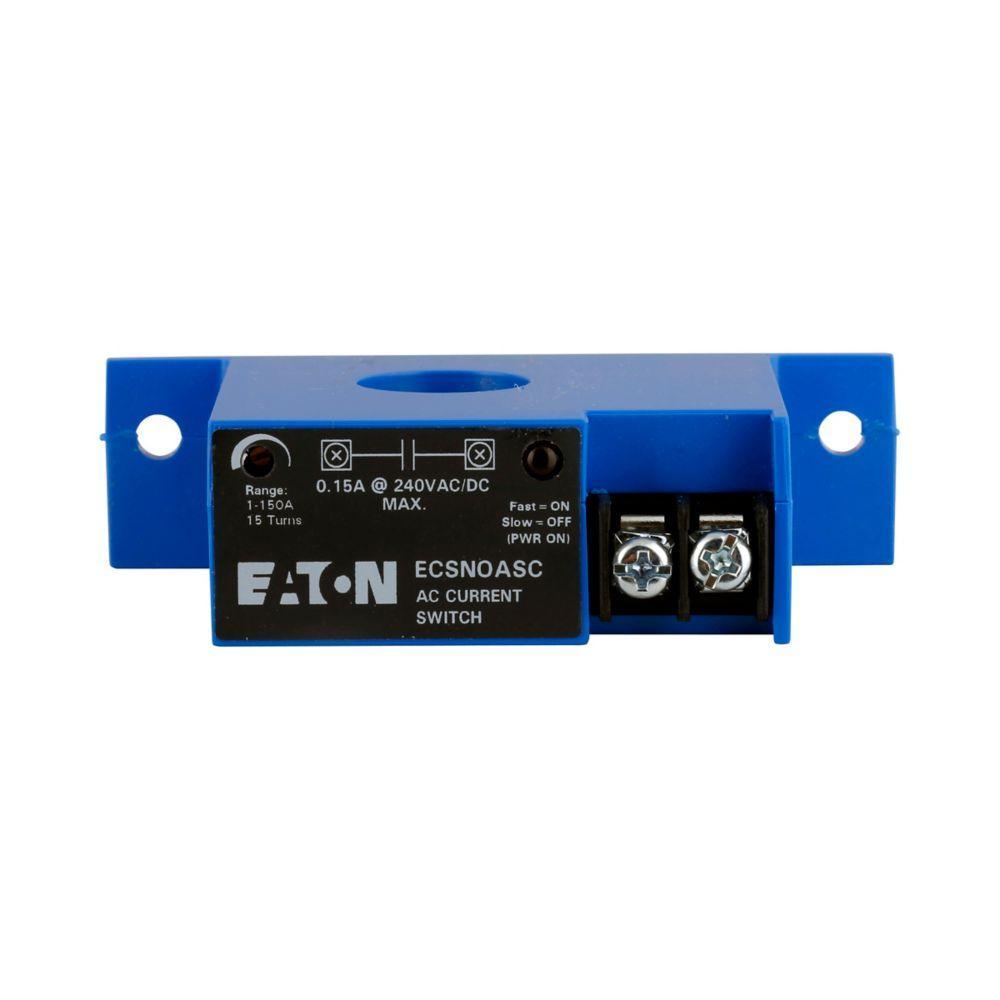

ECSNOASC CH EATON CURRENT SWITCH NO OUTPUT 1-150A SETPOINT ADJUSTABLE SOLID CORE HOUSING

Mouse over image to zoom, click to enlarge

  • ECSNOASC CH EATON CURRENT SWITCH NO OUTPUT 1-150A SETPOINT ADJUSTABLE SOLID CORE HOUSING
  • ECSNOASC CH EATON CURRENT SWITCH NO OUTPUT 1-150A SETPOINT ADJUSTABLE SOLID CORE HOUSING
  • ECSNOASC CH EATON CURRENT SWITCH NO OUTPUT 1-150A SETPOINT ADJUSTABLE SOLID CORE HOUSING

Description: EATON CurrentWatch™ Current Switch, Top Terminal, Series: ECS, 120 ms Response, 10 Output, 240 V AC/DC, 150 A, 6 to 100 Hz, Screw, LED Indicator Light Source, 3.5 in L x 0.93 in W x 2.18 in H, Solid Core Housing, -58 to 122 deg F Operating, Panel Mount, Environmental Conditions: 0 to 95% Relative Humidity

Manufacturer PN: ECSNOASC

UPC:  78668512091

Kendall Electric Inc PN: 2458050

Invoice Description:

ECSNOASC CH EATON CURRENT SWITCH NO OUTPUT 1-150A SETPOINT ADJUSTABLE SOLID CORE HOUSING


SPEC SHEET

▸ See All in Current Sensors


How Can We Make This Page Better?

EATON CurrentWatch™ ECSNOASC Top Terminal Current Switch, 120 ms Response, 1NO Contact Output, 240 V AC/DC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The CurrentWatch™ ECS Series from EATON electrical sector is a family of solid state adjustable current switches, ideal for providing status information on electrical equipment. The ECS is excellent for new installations, where the conductors run through the housing, requiring no cutting. These switches are also ideal for retrofits, since split core models can be opened to fit around existing conductors. The current switch is accurate, reliable and easy to install. The ECS can sense continuous currents from 1 to 150 A and does not require any supply voltage, as the power required is induced from the monitored conductor. The output is a non-polarity sensitive solid state contact for switching AC and DC circuits up to 240 VAC/DC. This switch also includes an LED indicating two states - on and below trip point and above trip point with contacts energized. All ECS Series switches carry an unconditional 5 years warranty. Any change in current can be sensed with the ECS series A change in current may indicate motor failure, belt loss/slippage or mechanical failure. Any of these events can cause the current to drop significantly, tripping the switch and notifying the controller.
EATON CurrentWatch™ Current Switch, Top Terminal, Series: ECS, 120 ms Response, 10 Output, 240 V AC/DC, 150 A, 6 to 100 Hz, Screw, LED Indicator Light Source, 3.5 in L x 0.93 in W x 2.18 in H, Solid Core Housing, -58 to 122 deg F Operating, Panel Mount, Environmental Conditions: 0 to 95% Relative Humidity

Specifications

 Amperage Rating 150 A
 Brand Name EATON
 Connection Type Screw
 Enclosure Solid Core Housing
 Environmental Conditions 0 to 95% Relative Humidity
 Frequency Rating 6 to 100 Hz
 Manufacturer Part Number ECSNOASC
 Mounting Type Panel
 Operating Temperature -58 to 122 deg F
 Output Type 1NO Contact
 PART NUMBER KEYWORDS ECSNOASC ; 9612886 ; 786685120911 ; 78668512091 ; 00786685120911
 Response Time 120 ms
 Series ECS
 Size 3.5 in L x 0.93 in W x 2.18 in H
 Standards/Approvals RoHS Compliant
 Type Top Terminal
 Voltage Rating 240 V AC/DC

Features

▪ 0.74 in aperture
▪ Non-condensing
▪ Universal outputs NO or NC solid state switch for control circuits up to 240 VAC/VDC, compatible with most automation systems
▪ Self-powered cuts installation and operating costs
▪ Easily adjustable set point increases application flexibly and speeds start-up
▪ Solid or split core housings versions tailored for each type of installation
▪ LED indication provides quick visual indication of output contact status
▪ Built-in mounting feet simple, 2-screw panel mount or attach with optional DIN-rail mounting kit accessory
▪ Adjustable 1 to 150 A set point with LED
▪ Isolated solid state relay contact configuration
▪ UL 94V-0 flammability rated plastic enclosure
