Eaton

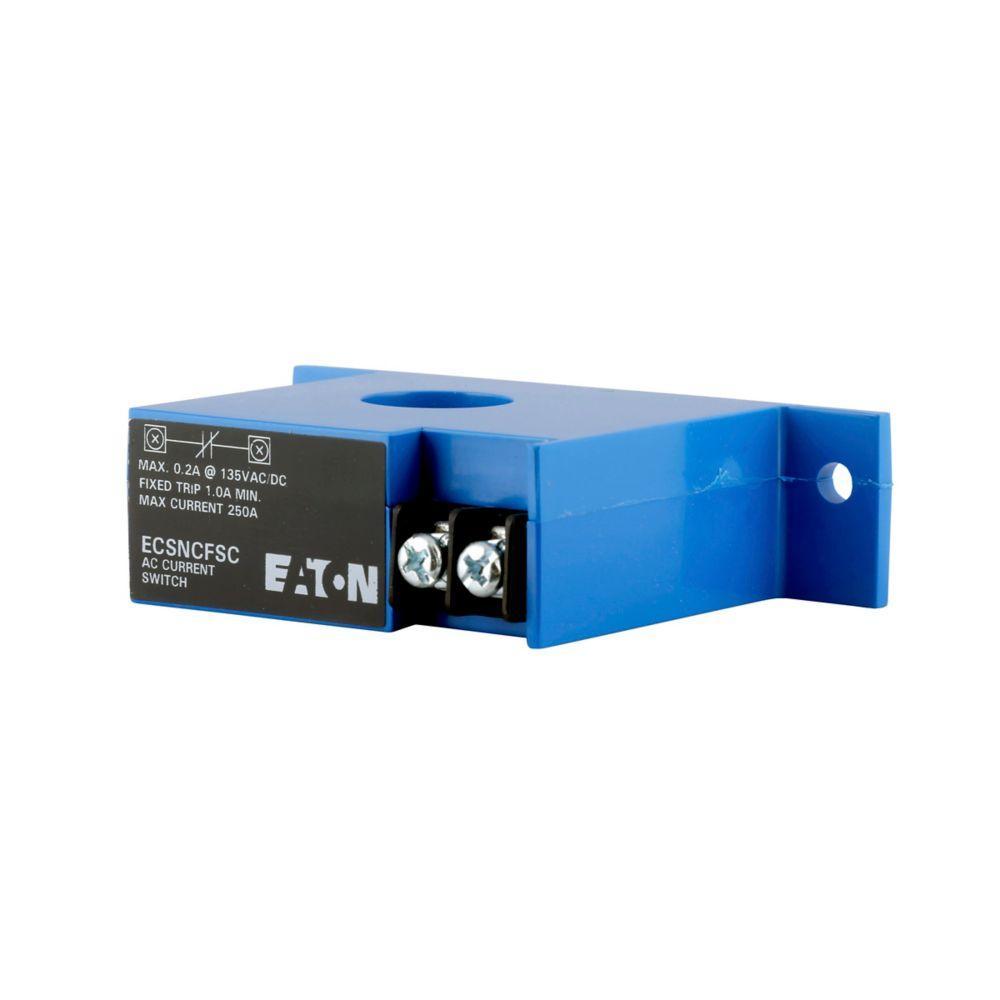

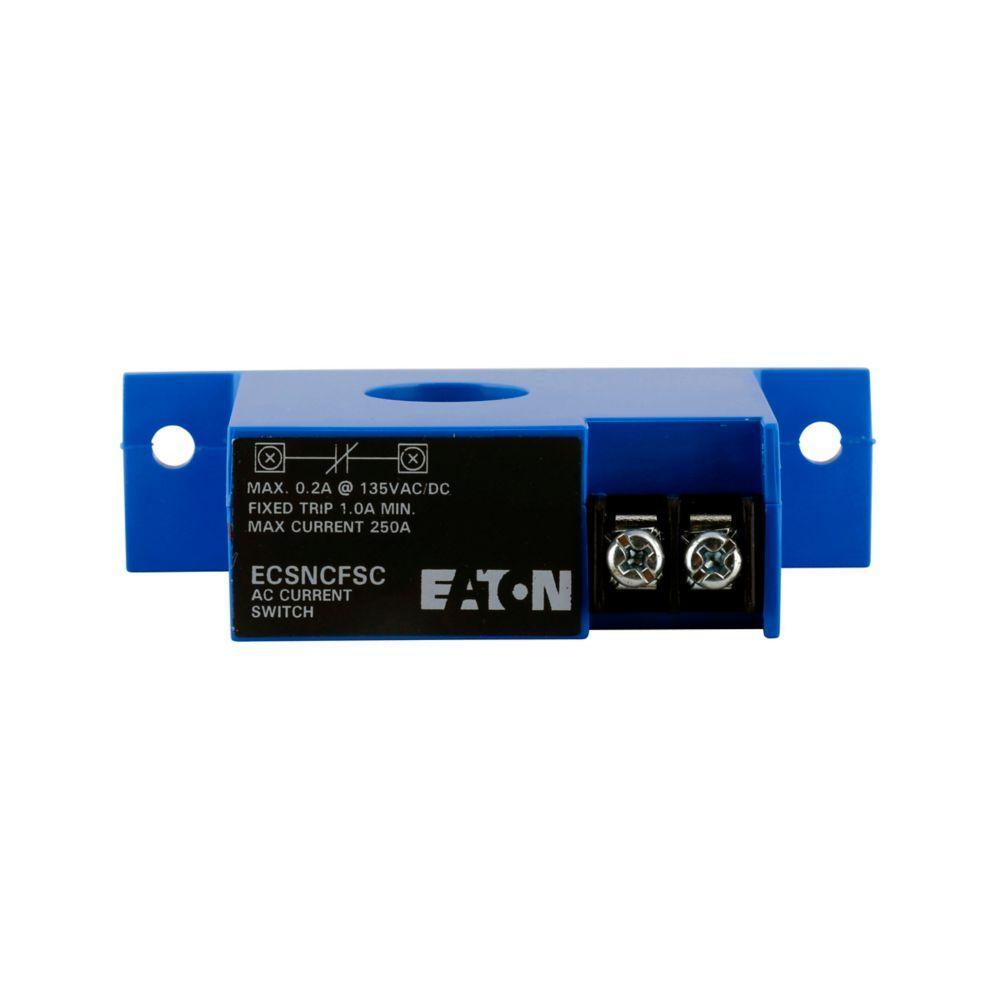

ECSNCFSC CH CURRENT SWITCH,SS,N.C.,SOLID CORE,FIXED 1.5,WO/LED,SELFPWR

Mouse over image to zoom, click to enlarge

  • ECSNCFSC CH CURRENT SWITCH,SS,N.C.,SOLID CORE,FIXED 1.5,WO/LED,SELFPWR
  • ECSNCFSC CH CURRENT SWITCH,SS,N.C.,SOLID CORE,FIXED 1.5,WO/LED,SELFPWR
  • ECSNCFSC CH CURRENT SWITCH,SS,N.C.,SOLID CORE,FIXED 1.5,WO/LED,SELFPWR

Description: EATON CurrentWatch™ Current Switch, Self-Powered Solid Core Housing, Series: ECS, 120 ms Response, 10 Output, 135 V AC, 150 A, 6 to 100 Hz Frequency, Screw Terminal Connection, 2.18 in L x 0.93 in W x 3.5 in H Size, -58 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Manufacturer PN: ECSNCFSC

UPC:  78668512042

Kendall Electric Inc PN: 4127516

Invoice Description:

ECSNCFSC CH CURRENT SWITCH,SS,N.C.,SOLID CORE,FIXED 1.5,WO/LED,SELFPWR


SPEC SHEET

▸ See All in Current Sensors


How Can We Make This Page Better?

EATON CurrentWatch™ ECSNCFSC Self-Powered Solid Core Housing Current Switch, 120 ms Response, Solid State Relay Output, 135 V AC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The CurrentWatch ECS Series from EATON electrical sector is a family of solid state adjustable current switches, ideal for providing status information on electrical equipment. The ECS is excellent for new installations, where the conductors run through the housing, requiring no cutting. These switches are also ideal for retrofits, since split core models can be opened to fit around existing conductors. The current switch is accurate, reliable and easy to install. The ECS can sense continuous currents from 1 to 150 A and does not require any supply voltage, as the power required is induced from the monitored conductor. The output is a non-polarity sensitive solid state contact for switching AC and DC circuits up to 240 VAC/VDC. This switch also includes an LED indicating two states on and below trip point and above trip point with contacts energized. All ECS Series switches carry an unconditional 5 years warranty. Any change in current can be sensed with the ECS Series. A change in current may indicate motor failure, belt loss/slippage or mechanical failure. Any of these events can cause the current to drop significantly, tripping the switch and notifying the controller.
EATON CurrentWatch™ Current Switch, Self-Powered Solid Core Housing, Series: ECS, 120 ms Response, 10 Output, 135 V AC, 150 A, 6 to 100 Hz Frequency, Screw Terminal Connection, 2.18 in L x 0.93 in W x 3.5 in H Size, -58 to 122 deg F Operating, Environmental Conditions: 0 to 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 150 A
 Application Electronic Proof of Flow, Conveyors, Lighting Circuits, Fans, Pumps and Heating Elements, Critical Motors and Ancillary Equipment
 Brand Name EATON
 Connection Type Screw Terminal
 Environmental Conditions 0 to 95% Non-Condensing Relative Humidity
 Frequency Rating 6 to 100 Hz
 Manufacturer Part Number ECSNCFSC
 Operating Temperature -58 to 122 deg F
 Output Type Solid State Relay
 PART NUMBER KEYWORDS ECSNCFSC ; 9647443 ; 786685120423 ; 78668512042 ; 00786685120423
 Response Time 120 ms
 Series ECS
 Size 2.18 in L x 0.93 in W x 3.5 in H
 Standards/Approvals RoHS Compliant
 Type Self-Powered Solid Core Housing
 Voltage Rating 135 V AC

Features

▪ Easily adjustable set point increases application flexibly and speeds start-up
▪ Solid or split core housings versions tailored for each type of installation
▪ LED indication provides quick visual indication of contact status
▪ Built-in mounting feet simple, 2-screw panel mount or attach with optional DIN rail mounting kit accessory
