Acuity Brands
ECRGSQM6 LITHONIA EMERGENCY EXIT SIGN (CI# 269XW7)

Mouse over image to zoom, click to enlarge

  • ECRGSQM6 LITHONIA EMERGENCY EXIT SIGN (CI# 269XW7)
  • ECRGSQM6 LITHONIA EMERGENCY EXIT SIGN (CI# 269XW7)
  • ECRGSQM6 LITHONIA EMERGENCY EXIT SIGN (CI# 269XW7)
  • ECRGSQM6 LITHONIA EMERGENCY EXIT SIGN (CI# 269XW7)
  • ECRGSQM6 LITHONIA EMERGENCY EXIT SIGN (CI# 269XW7)

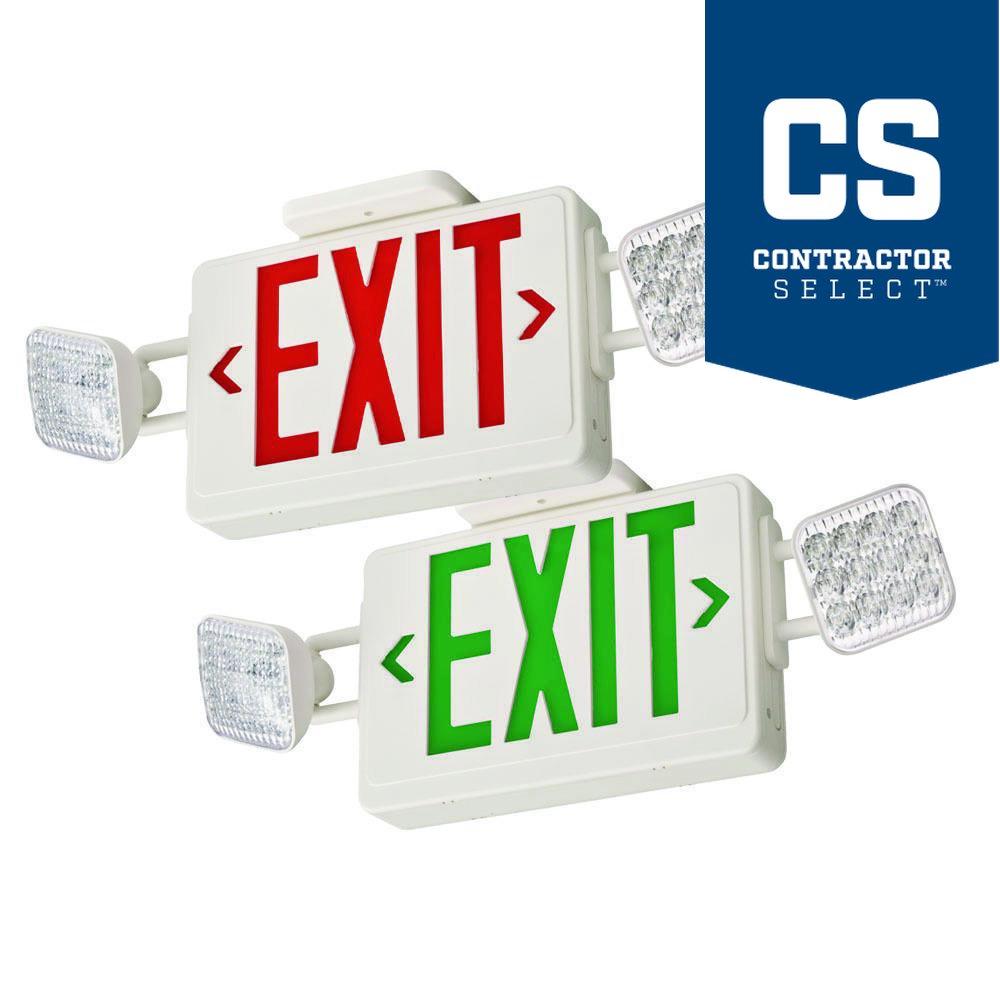

Description: Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ Emergency Light/Exit Combo, Square Head, Series: ECRG Series, 120/277 VAC, 3.5 W Fixture, 0.03/0.02 A, LED Lamp, 1 W Lamp, 2 Lamps, 2 Heads, 10 years Average Life, 6200 K Color, 75 CRI, EXIT Legend, Red/Green Legend, Surface Mount, Thermoplastic Housing, White Housing, 19.09 in W x 4.33 in D x 7.95 in H

Manufacturer PN: ECRGSQM6

UPC:  19499490046

Kendall Electric Inc PN: 4376532

Invoice Description:

ECRGSQM6 LITHONIA EMERGENCY EXIT SIGN (CI# 269XW7)


SPEC SHEET

▸ See All in Combo Lighting Unit & Exits


How Can We Make This Page Better?

Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG SQ M6 Square Head Emergency Light/Exit Combo, LED Lamp, 3.5 W Fixture, 120/277 VAC, White Housing, EXIT Legend

Log In for Pricing and Availability




Description

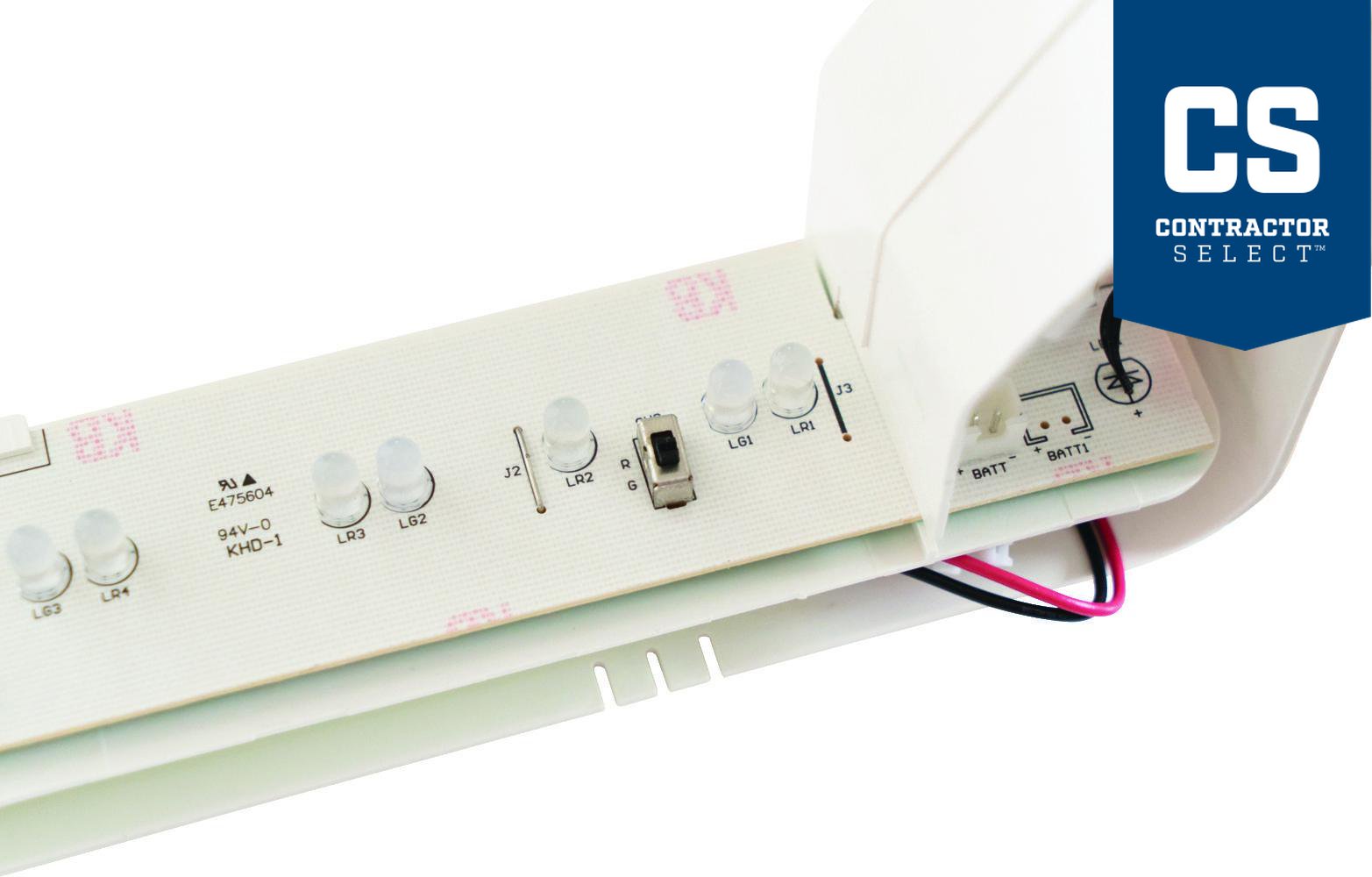

The new Lithonia Lighting® Basics™ ECRG is a red/green switchable emergency exit combo that gives ultimate versatility in the field. The ECRG contains an internal switch on the LED board that allows you to switch between red and green. This product comes standard three-face, which includes an extra face plate with red and green inserts to change a single face sign to a double face sign. The ECRG comes standard universal mount - top, end or back mounting with snap-out and snap-in chevrons, making it the most field-configurable, universal emergency exit combo on the market today. Built from the previous ECR, ECG and ECC platform, the new ECRG gives additional versatility but keeps the durability and dependability that has already been proven in the field.
Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ Emergency Light/Exit Combo, Square Head, Series: ECRG Series, 120/277 VAC, 3.5 W Fixture, 0.03/0.02 A, LED Lamp, 1 W Lamp, 2 Lamps, 2 Heads, 10 years Average Life, 6200 K Color, 75 CRI, EXIT Legend, Red/Green Legend, Surface Mount, Thermoplastic Housing, White Housing, 19.09 in W x 4.33 in D x 7.95 in H

Specifications

 Amperage Rating 0.03/0.02 A
 Application Education, Government, Healthcare, Hospitality, House of Worship, Retail, Offices and Banks
 Average Life 10 years
 Brand Name Lithonia Lighting®
 Color Rendering Index CRI 75
 Color Temperature 6200 K
 Dimensions 19.09 in W x 4.33 in D x 7.95 in H
 Fixture Wattage 3.5 W
 Housing Finish White
 Housing Material Thermoplastic
 Lamp Type LED
 Lamp Wattage 1 W
 Legend EXIT
 Legend Color Red/Green
 Manufacturer Part Number ECRG SQ M6
 Mounting Type Surface
 Number of Heads 2
 Number of Lamps 2
 Series ECRG Series
 Standards/Approvals California Title 20|FCC Certified|NFPA 70/101|OSHA Compliant|UL 924
 Type Square Head
 Video Links
 Voltage Rating 120/277 VAC

Features

▪ CUSTOMIZATION- The EXRG LED Exit Sign has an internal switch for red or green color selection
▪ HOUSING- Features bright white thermoplastic housing, fully assembled single-face exit comes with an extra faceplate and red and green panel inserts
▪ INSTALL/ MOUNTING- Top, side and back mount options, Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
▪ HOURS OF LIFE- The typical life of the LED lamp is 10 years
▪ DESIGN FEATURE- Provides a minimum of 90 min illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
▪ BATTERY- 3.6V maintenance-free, rechargeable, nickel metal hydride
