Acuity Brands

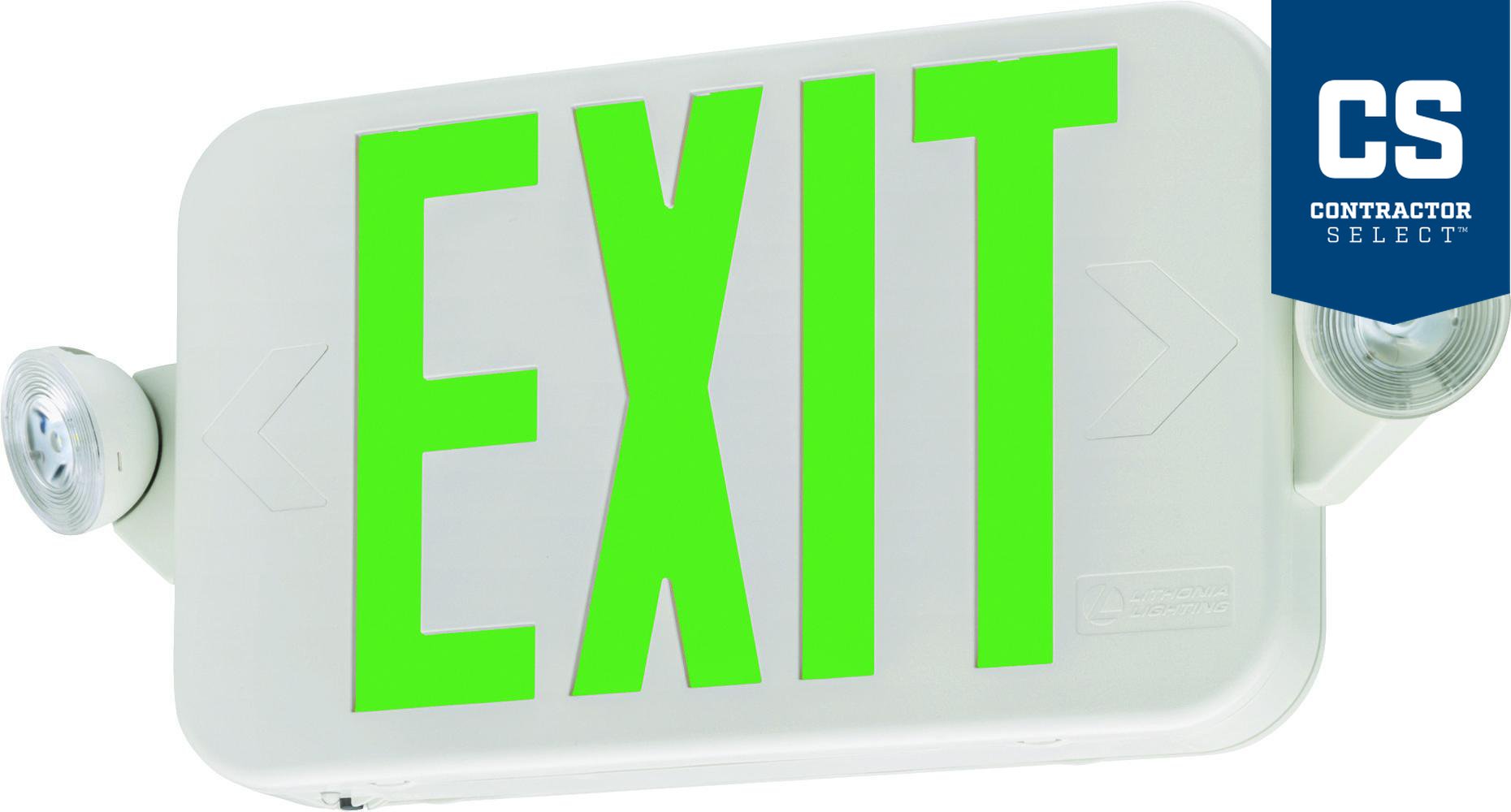

ECRGHORDM6 LITHONIA THERMOPLASTIC LED EXIT/UNIT COMBO RED/GREEN SWITCHABLE HIGH OUTPUT BATTERY ROUND (CI# 269XW0)

Mouse over image to zoom, click to enlarge

  • ECRGHORDM6 LITHONIA THERMOPLASTIC LED EXIT/UNIT COMBO RED/GREEN SWITCHABLE HIGH OUTPUT BATTERY ROUND (CI# 269XW0)
  • ECRGHORDM6 LITHONIA THERMOPLASTIC LED EXIT/UNIT COMBO RED/GREEN SWITCHABLE HIGH OUTPUT BATTERY ROUND (CI# 269XW0)
  • ECRGHORDM6 LITHONIA THERMOPLASTIC LED EXIT/UNIT COMBO RED/GREEN SWITCHABLE HIGH OUTPUT BATTERY ROUND (CI# 269XW0)

Description: Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ Emergency Light/Exit Combo, Round Head, Series: ECRG Series, 120 to 277 V AC, 2.8 W Fixture, 0.05/0.03 A, 0.75 W Lamp, 2 Lamps, 2 Heads, 10 years Average Life, 6200 K Color, 80 CRI, EXIT Legend, Red/Green Legend, Surface Mount, 3.6 V NiMH Rechargeable Battery, Thermoplastic Housing, White Housing, 16.46 in L x 2.05 in D x 7.24 in H

Manufacturer PN: ECRGHORDM6

UPC:  19499490042

Kendall Electric Inc PN: 4340209

Invoice Description:

ECRGHORDM6 LITHONIA THERMOPLASTIC LED EXIT/UNIT COMBO RED/GREEN SWITCHABLE HIGH OUTPUT BATTERY ROUND (CI# 269XW0)


SPEC SHEET

▸ See All in Combo Lighting Unit & Exits


How Can We Make This Page Better?

Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ ECRG HO RD M6 Round Head Emergency Light/Exit Combo With Remote Capacity, 2.8 W Fixture, 120 to 277 V AC, White Housing, EXIT Legend

Log In for Pricing and Availability




Description

The Lithonia Lighting Basics ECRG, is a combination of exit and emergency lighting. The ECRG is ideal for safely illuminating the path of egress above-the-door in small spaces at lower mounting heights while providing 90 minutes of emergency power. Contains ability to switch between red and green letters. Features test switch and status indicator.
Lithonia Lighting® Contractor Select™ Lithonia Lighting Basics™ Emergency Light/Exit Combo, Round Head, Series: ECRG Series, 120 to 277 V AC, 2.8 W Fixture, 0.05/0.03 A, 0.75 W Lamp, 2 Lamps, 2 Heads, 10 years Average Life, 6200 K Color, 80 CRI, EXIT Legend, Red/Green Legend, Surface Mount, 3.6 V NiMH Rechargeable Battery, Thermoplastic Housing, White Housing, 16.46 in L x 2.05 in D x 7.24 in H

Specifications

 Amperage Rating 0.05/0.03 A
 Application Education, Government, Healthcare, Hospitality, House of Worship, Retail, Offices and Banks
 Average Life 10 years
 Brand Name Lithonia Lighting®
 Color Rendering Index CRI 80
 Color Temperature 6200 K
 Dimensions 16.46 in L x 2.05 in D x 7.24 in H
 Fixture Wattage 2.8 W
 Housing Finish White
 Housing Material Thermoplastic
 Lamp Wattage 0.75 W
 Legend EXIT
 Legend Color Red/Green
 Manufacturer Part Number ECRG HO RD M6
 Mounting Type Surface
 Number of Heads 2
 Number of Lamps 2
 PART NUMBER KEYWORDS ECRG HO RD M6 ; ECRGHORDM6 ; 269XW0 ; 17067119 ; 194994900429 ; 19499490042 ; 00194994900429
 Power Source 3.6 V NiMH Rechargeable Battery
 Series ECRG Series
 Standards/Approvals California Title 20|FCC Certified|NFPA 70/101|OSHA Compliant|UL 924
 Type Round Head
 Video Links
 Voltage Rating 120 to 277 V AC

Features

▪ Contains ability to switch between red and green letters
▪ Features test switch and status indicator
▪ CUSTOMIZATION - The ECRG LED Exit Sign has an internal switch for red or green color selection
▪ HOUSING - Features bright white thermoplastic housing, fully assembled single-face exit comes with an extra faceplate and red and green panel inserts
▪ INSTALL / MOUNTING - Top, side and back mount options, Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
▪ DESIGN FEATURE - Provides a minimum of 90 min illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
▪ BATTERY - 3.6V maintenance-free, rechargeable, nickel metal hydride
