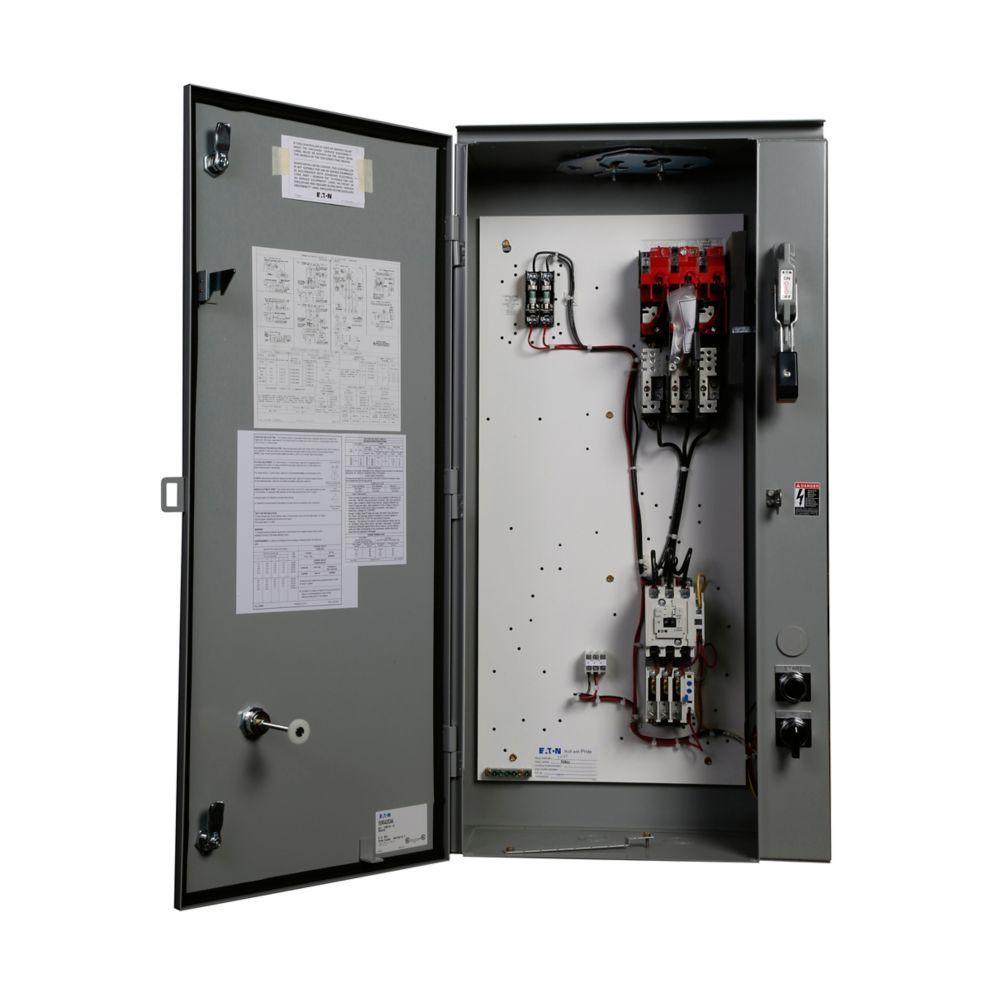

  • ECN5432CAG-R63/E CH PUMP PANEL - 100A FUSIBLE SW NEMA 3R SZ 3 480VAC COIL

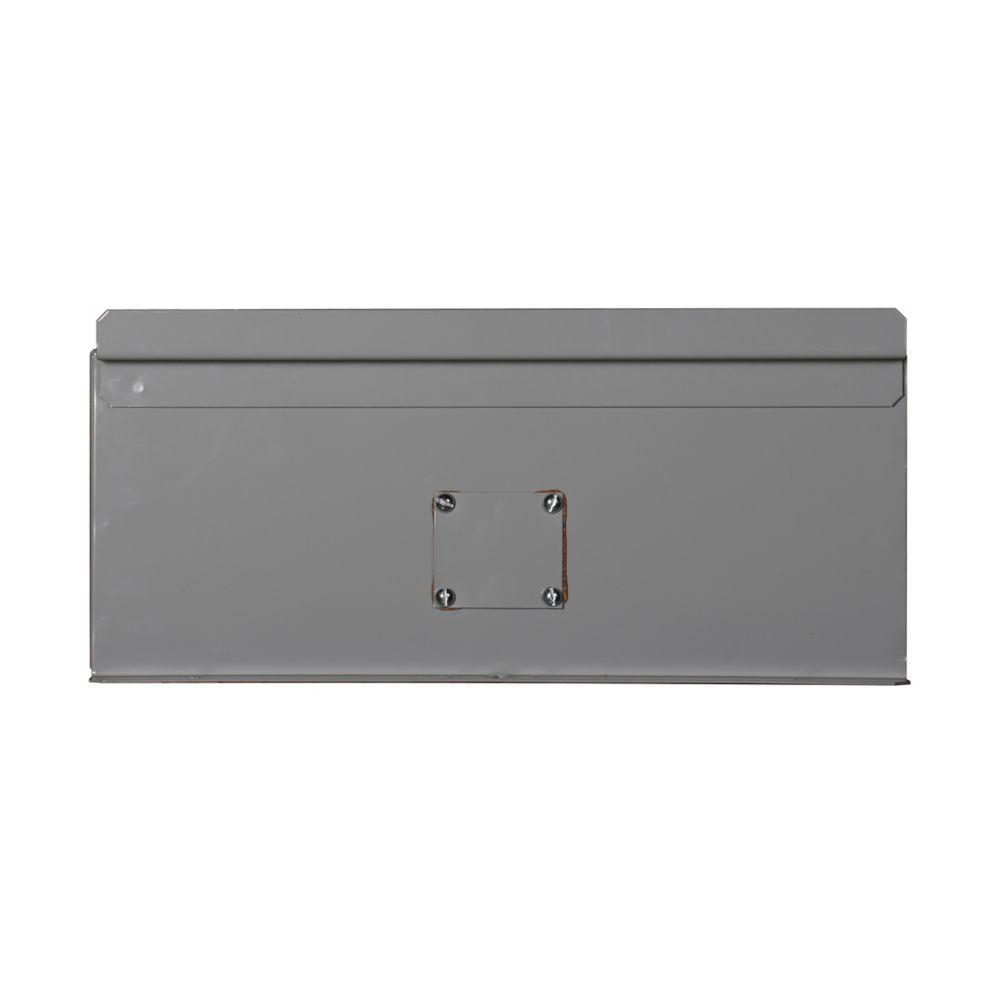

  • ECN5432CAG-R63/E CH PUMP PANEL - 100A FUSIBLE SW NEMA 3R SZ 3 480VAC COIL

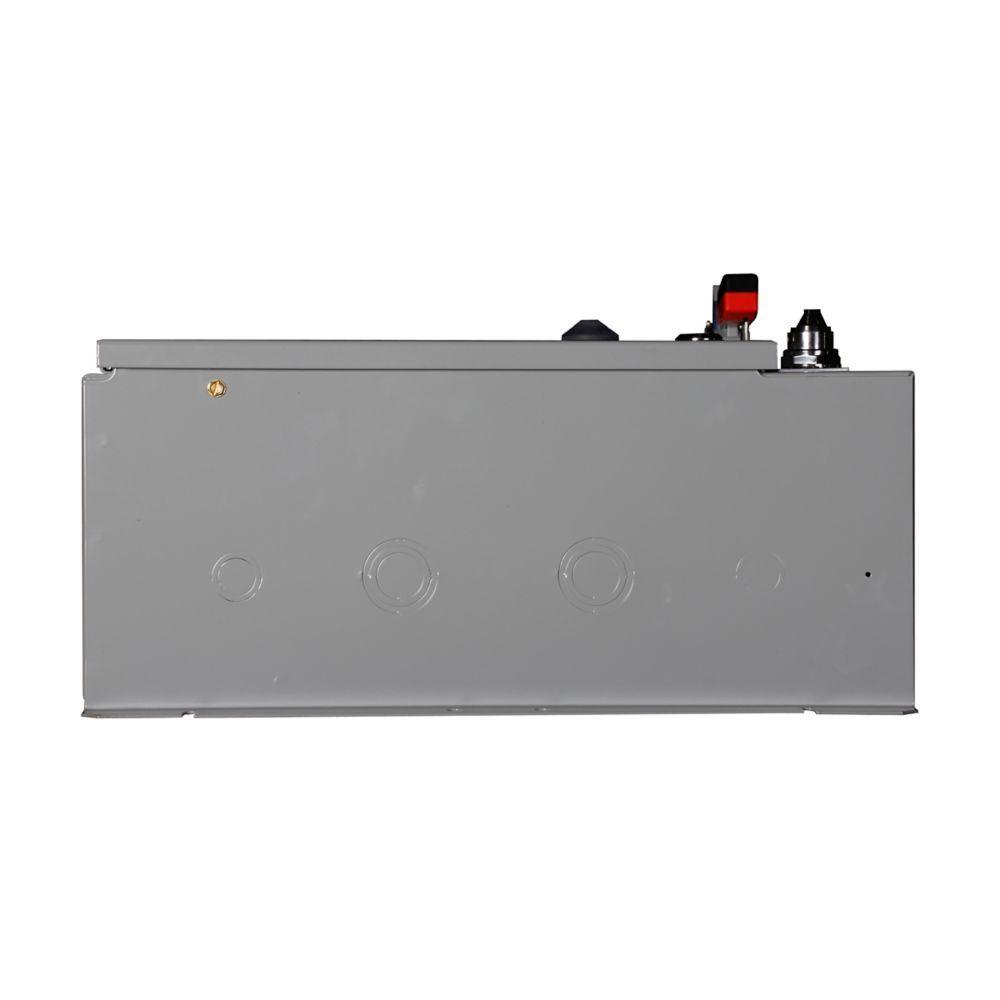

  • ECN5432CAG-R63/E CH PUMP PANEL - 100A FUSIBLE SW NEMA 3R SZ 3 480VAC COIL
  • ECN5432CAG-R63/E CH PUMP PANEL - 100A FUSIBLE SW NEMA 3R SZ 3 480VAC COIL

Description: EATON Pump Panel, Fusible Disconnect, Series: Freedom, 600 V AC, 100 A, 50/60 Hz Frequency, 50 hp Motor, 440/460 VAC Coil, 3 ph, SZ 3 Size, Auto/Hand/Off Action, Solid-State Overload Relay, 20 to 100 A Full Load, NEMA 3/3R Enclosure, Steel, 40 in L x 20 in W x 12 in H Dimensions

Manufacturer PN: ECN5432CAG-R63/E

UPC:  78668545535

Kendall Electric Inc PN: 3725432

Invoice Description:

ECN5432CAG-R63/E CH PUMP PANEL - 100A FUSIBLE SW NEMA 3R SZ 3 480VAC COIL


SPEC SHEET

How Can We Make This Page Better?

EATON ECN5432CAG-R63/E Freedom Fusible Disconnect Pump Panel, 440/460 VAC V Coil, Auto/Hand/Off Action, NEMA 3/3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s industrial pump panels are combination starters that are designed for irrigation, oil well, gas and other pump applications. The enclosure is NEMA Type 3R to provide weather-tight protection and is available in several sizes, depending on the customer’s control option requirements. The disconnect, contactor and overload relay are the same as used in Freedom lines of combination starters.
EATON Pump Panel, Fusible Disconnect, Series: Freedom, 600 V AC, 100 A, 50/60 Hz Frequency, 50 hp Motor, 440/460 VAC Coil, 3 ph, SZ 3 Size, Auto/Hand/Off Action, Solid-State Overload Relay, 20 to 100 A Full Load, NEMA 3/3R Enclosure, Steel, 40 in L x 20 in W x 12 in H Dimensions

Specifications

 Amperage Rating 100 A
 Application Industrial Facilities, Factories - Motor and Power Control Equipment Applications
 Brand Name EATON
 Coil Voltage 440/460 V AC
 Dimensions 40 in L x 20 in W x 12 in H
 Enclosure NEMA 3/3R
 Frequency Rating 50/60 Hz
 Full Load Current 20 to 100 A
 Manufacturer Part Number ECN5432CAG-R63/E
 Material Steel
 Motor Power 50 hp
 Overload Relay Solid-State
 PART NUMBER KEYWORDS ECN5432CAG-R63/E ; ECN5432CAGR63E ; 11065398 ; 786685455358 ; 78668545535 ; 00786685455358
 Phase 3
 Series Freedom
 Size SZ 3
 Standards/Approvals cUL Listed,UL Listed,ABS Certified,OSHPD Certified
 Type Fusible Disconnect
 Voltage Rating 600 V AC

Features

▪ Long life, heavy duty, quick-acting, double break action motor circuit switch
▪ Adjustable magnetic trip characteristic for accurate, dependable fault protection and simultaneous trip of all poles to prevent single phasing
▪ Freedom overload relays with trip indication feature bi-metallic type operation with ambient compensation and a choice of either manual or automatic reset
▪ Hand/Off/Auto selector switch and start pushbutton
▪ Padlocking provision on door latch for locking door closed as well as provision for padlocking disconnect switch in Off position
▪ Type R fuse clip
▪ Painted steel enclosure
▪ Pole mounting feet with keyhole slots for easy mounting
