ECL03B1A4A-S3 CH LTG-ELEC HELD 120V COIL 20A 4POLE N1 W/ HOA

Mouse over image to zoom, click to enlarge

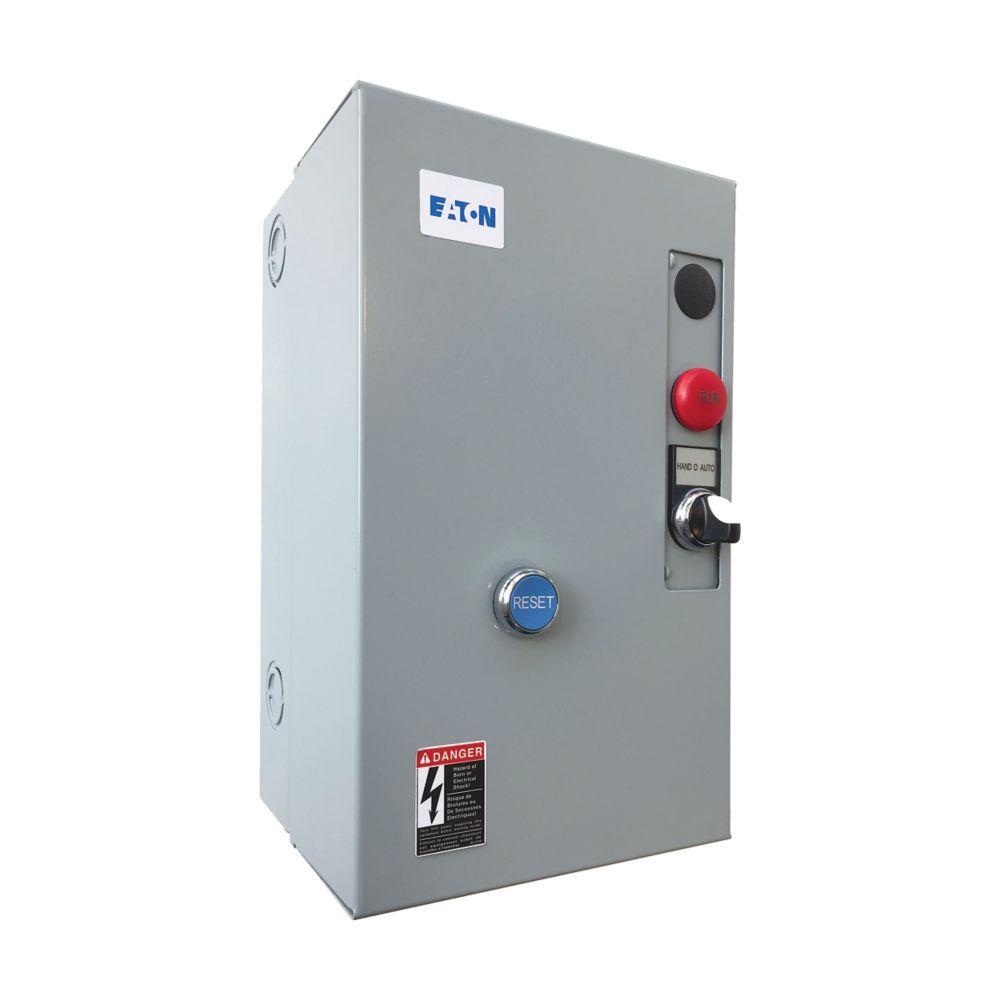

  • ECL03B1A4A-S3 CH LTG-ELEC HELD 120V COIL 20A 4POLE N1 W/ HOA
  • ECL03B1A4A-S3 CH LTG-ELEC HELD 120V COIL 20A 4POLE N1 W/ HOA

Description: EATON Lighting Contactor, Non-Combination Electrically Held, Series: CN35, 110/120 V AC Coil, 20 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 20 A Contact, 45 mm Size, NEMA 1 Enclosure, Steel, Gray, Polyester Urethane Powder Coated/Painted, 7.73 in L x 5.84 in W x 12.6 in H Dimensions

Manufacturer PN: ECL03B1A4A-S3

UPC:  78668535770

Kendall Electric Inc PN: 3536241

Invoice Description:

ECL03B1A4A-S3 CH LTG-ELEC HELD 120V COIL 20A 4POLE N1 W/ HOA


SPEC SHEET

▸ See All in Lighting Contactors


How Can We Make This Page Better?

EATON ECL03B1A4A-S3 CN35 Non-Combination Electrically Held Lighting Contactor, 110/120 V AC V Coil, 20 A, 1NO Contact, 4 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Type CN35 electrically held lighting contactors are designed to handle the switching of tungsten (incandescent) or ballast (fluorescent and mercury arc) lamp loads as well as other non-motor (resistive) loads. Ideal applications include industrial plants, stadiums, parks and any new construction requiring lighting control. Ballast lamps equate to fluorescent, mercury vapor, sodium vapor and quartz loads and will operate at a maximum of 600V. Filament lamps equate to incandescent, infrared, sodium iodine and heating loads and will operate at a maximum of 480V. Resistance heating equates to radiant and convection heating, furnace and oven loads.
EATON Lighting Contactor, Non-Combination Electrically Held, Series: CN35, 110/120 V AC Coil, 20 A Maximum Load Current, 4 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1 Auxiliary Contacts, 20 A Contact, 45 mm Size, NEMA 1 Enclosure, Steel, Gray, Polyester Urethane Powder Coated/Painted, 7.73 in L x 5.84 in W x 12.6 in H Dimensions

Specifications

 Application Commercial, Institutional Buildings, Structures, Lighting and Lighting Controls and Others, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factories - Lighting and Lighting Controls Applications
 Brand Name EATON
 Coil Voltage 110/120 V AC
 Color Gray
 Contact Configuration 1NO
 Contact Rating 20 A
 Dimensions 7.73 in L x 5.84 in W x 12.6 in H
 Enclosure NEMA 1
 Finish Polyester Urethane Powder Coated/Painted
 Frequency Rating 50/60 Hz
 Manufacturer Part Number ECL03B1A4A-S3
 Material Steel
 Maximum Load Current 20 A
 Number of Auxiliary Contacts 1
 Number of Poles 4
 PART NUMBER KEYWORDS ECL03B1A4A-S3 ; ECL03B1A4AS3 ; 10710616 ; 786685357706 ; 78668535770 ; 00786685357706
 Series CN35
 Size 45 mm
 Standards/Approvals cUL Listed,UL Listed
 Type Non-Combination Electrically Held
 Video Links

Features

▪ Control power is applied continuously during operation
▪ Full line of snap-on accessories top and side mount auxiliary contacts, solid-state and pneumatic timers and so on
