Hubbell

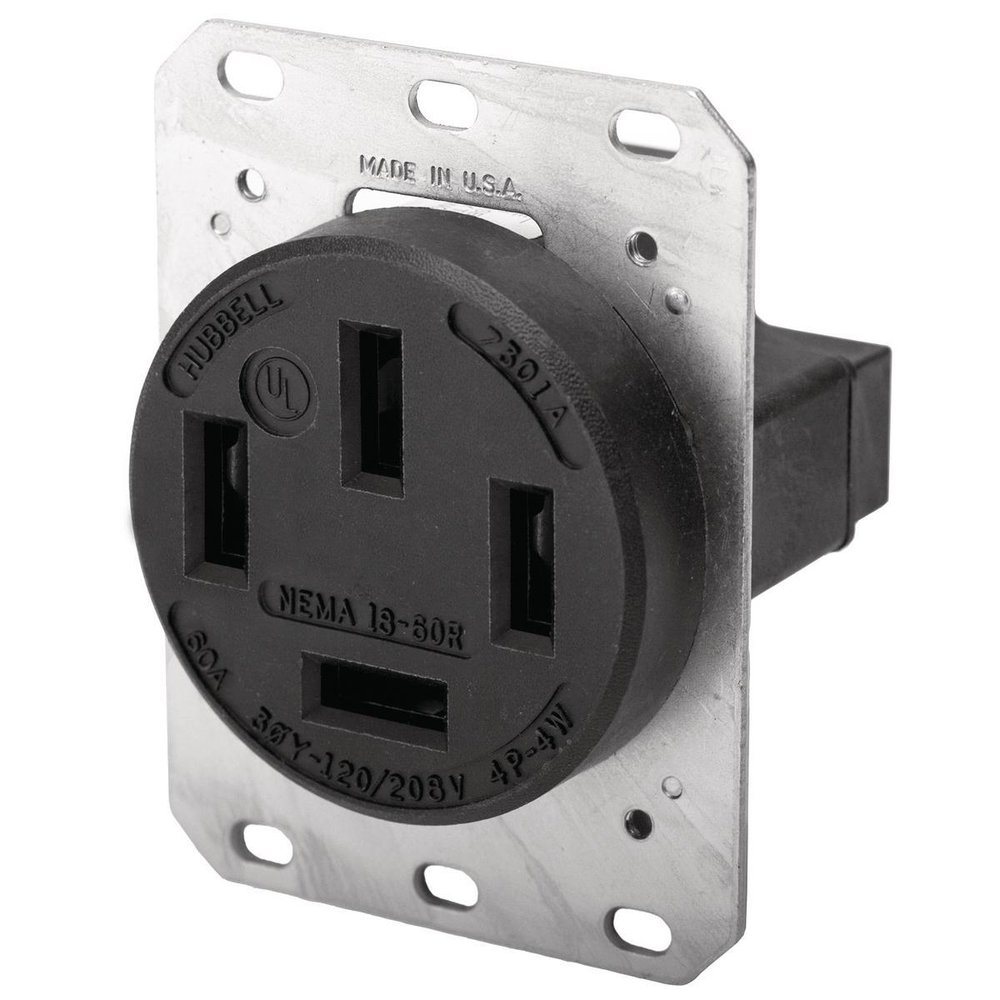

HBL7301A HUB RCPT, 4P4W, 60A 120/208V, 18-60R, BK

Mouse over image to zoom, click to enlarge

Description: Hubbell Wiring Device-Kellems, HBL7301A, Straight Blade Receptacle, 3-Phase Heavy Duty Non-Grounding Standard Screw Mount, 120/208 V AC, 60 A, 7-1/2 hp, 4 Pole, 4 Wires, 18-60R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic, Black, 2.75 in W x 2.44 in D x 3.28 in H Dimensions

Manufacturer PN: HBL7301A

UPC:  78358501509

Kendall Electric Inc PN: 2014906

Invoice Description:

HBL7301A HUB RCPT, 4P4W, 60A 120/208V, 18-60R, BK


SPEC SHEET

How Can We Make This Page Better?

Hubbell Wiring Device-Kellems HBL7301A 3-Phase Heavy Duty Non-Grounding Standard Screw Mount Straight Blade Receptacle, 120/208 V AC, 60 A, 4 Poles, 4 Wires, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Straight Blade Devices, Receptacles, Single, Industrial Grade, 4- Pole 4-Wire Non-Grounding, 60A 3 Phase 120/208V AC, 18-60R, Black, Single Pack.
Hubbell Wiring Device-Kellems, HBL7301A, Straight Blade Receptacle, 3-Phase Heavy Duty Non-Grounding Standard Screw Mount, 120/208 V AC, 60 A, 7-1/2 hp, 4 Pole, 4 Wires, 18-60R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Back and Side Wire/Screw Terminal, Thermoplastic, Black, 2.75 in W x 2.44 in D x 3.28 in H Dimensions

Specifications

 Amperage Rating 60 A
 Application Indoor Dry Environment
 Brand Name Hubbell Premise Wiring
 Color Black
 Dimensions 2.75 in W x 2.44 in D x 3.28 in H
 Enclosure IP20
 Grade Industrial
 Horsepower 7-1/2 hp
 Manufacturer Part Number HBL7301A
 Material Thermoplastic
 NEMA Rating 18-60R
 Number of Poles 4
 Number of Wires 4
 PART NUMBER KEYWORDS HBL7301A ; 8945067 ; 11826482 ; 783585015095 ; 78358501509 ; 00783585015095 ; 0783585015095
 Standards/Approvals RoHS Compliant|CSA Certified|NEMA WD1/WD5|UL 498 File No. E2186
 Temperature Rating -40 to 75 deg C
 Terminal Type Back and Side Wire/Screw
 Type 3-Phase Heavy Duty Non-Grounding Standard Screw Mount
 Video Links
 Voltage Rating 120/208 V AC

Features

▪ Sequenced contacts assure protection
▪ One piece design power and ground contacts

Resources

 Catalog Page
 Instruction/Installation Manual
 Line Drawing
 MSDS URL None Required
 Product Data Sheet
 Tech Drawing URL
