Eaton

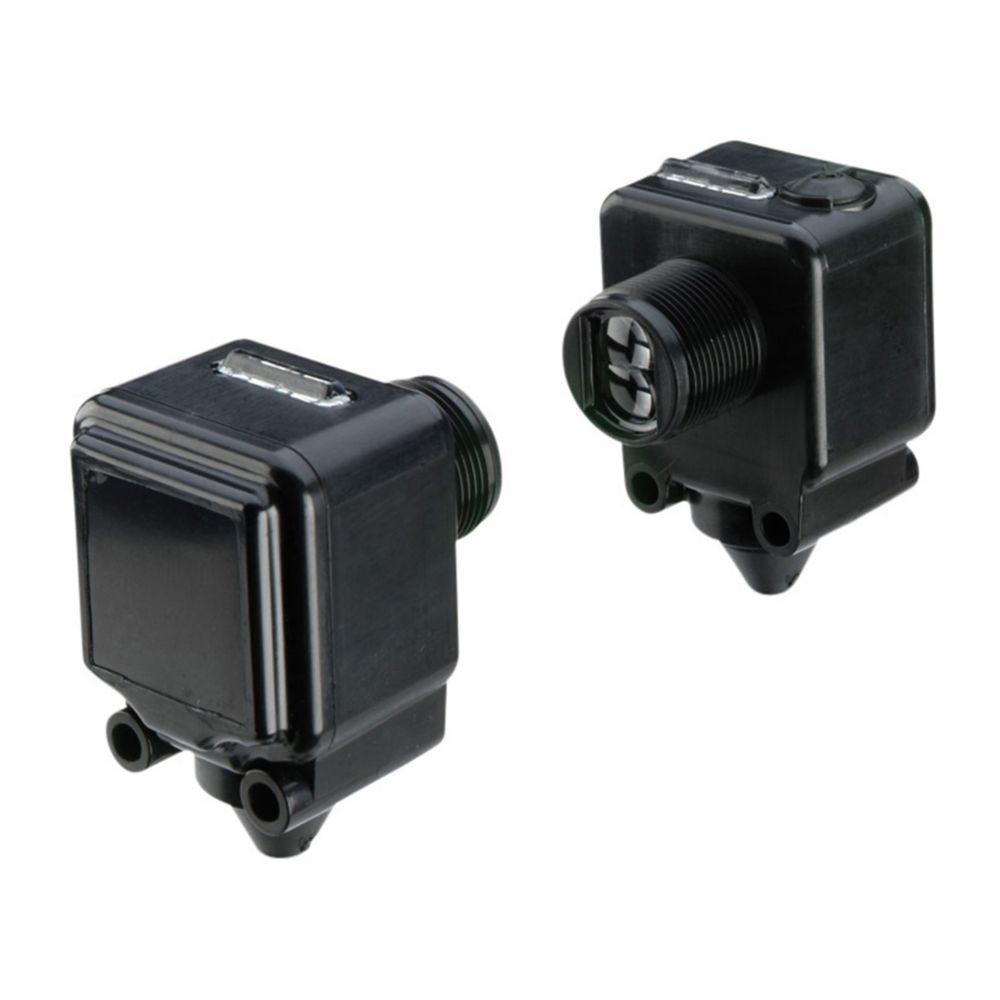

E65-SMTD15-HLD CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CONN., LIGHT OPERATE

Mouse over image to zoom, click to enlarge

  • E65-SMTD15-HLD CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CONN., LIGHT OPERATE
  • E65-SMTD15-HLD CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CONN., LIGHT OPERATE
  • E65-SMTD15-HLD CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CONN., LIGHT OPERATE

Description: EATON Perfect Prox® Photoelectric Sensor, Series: SM Series, Rectangle Shape, Thru-Beam Sensing Method, 49 ft Sensing, NPN/PNP Open Collector Output, 10 to 30 V DC, 100 mA, 4-Pin M12 Connection, LED Light Source, 2.17 in L x 1.47 in W x 1.29 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K Enclosure, -13 to 131 deg F Operating

Manufacturer PN: E65-SMTD15-HLD

UPC:  78211478655

Kendall Electric Inc PN: 2471825

Invoice Description:

E65-SMTD15-HLD CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CONN., LIGHT OPERATE


SPEC SHEET

▸ See All in Thru-Beam, Block/Slot Style


How Can We Make This Page Better?

EATON Perfect Prox® E65-SMTD15-HLD Photoelectric Sensor, Rectangle Shape, 49 ft, NPN/PNP Open Collector Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The SM series provides high performance and ease of use in an economical, compact package. A sensor can have the greatest performance in the world, but if it is slightly misaligned or the target is positioned at the wrong range, you will have reliability problems sooner or later. TargetLock not only simplifies sensor setup but visually confirms your sensor is positioned to operate with the highest possible reliability. In addition, TargetLock provides diagnostic information during use to inform you of impending problems before they result in equipment downtime.
EATON Perfect Prox® Photoelectric Sensor, Series: SM Series, Rectangle Shape, Thru-Beam Sensing Method, 49 ft Sensing, NPN/PNP Open Collector Output, 10 to 30 V DC, 100 mA, 4-Pin M12 Connection, LED Light Source, 2.17 in L x 1.47 in W x 1.29 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K Enclosure, -13 to 131 deg F Operating

Specifications

 Amperage Rating 100 mA
 Application Packaging Machines, Conveyors and Other Material Handling Equipment, Food Processing Equipment, Assembly Machines, Pharmaceutical Machines, Electrical Assemblies, Panels and EOEMs - Other Applications
 Brand Name EATON
 Connection Type 4-Pin M12
 Enclosure NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K
 Manufacturer Part Number E65-SMTD15-HLD
 Operating Temperature -13 to 131 deg F
 Output Type NPN/PNP Open Collector
 Sensing Method Thru-Beam
 Sensing Range 49 ft
 Series SM Series
 Shape Rectangle
 Size 2.17 in L x 1.47 in W x 1.29 in H
 Standards/Approvals UL Listed,cUL Listed,CE Marked
 Voltage Rating 10 to 30 V DC

Features

▪ Highly visible LED indicators for power, output and alignment (TargetLock™)
▪ TargetLock™ simplifies setup and ensures that the sensor operates at the highest level of reliability possible
▪ Perfect Prox® models sense different colored targets at the same range and ignore objects in the background
▪ Compact size to fit in tight spaces
▪ Reverse polarity, overload and short-circuit protection on all models
▪ Polycarbonate cable jacket, PVC body enclosure
▪ Green power on LED indicator
