Eaton

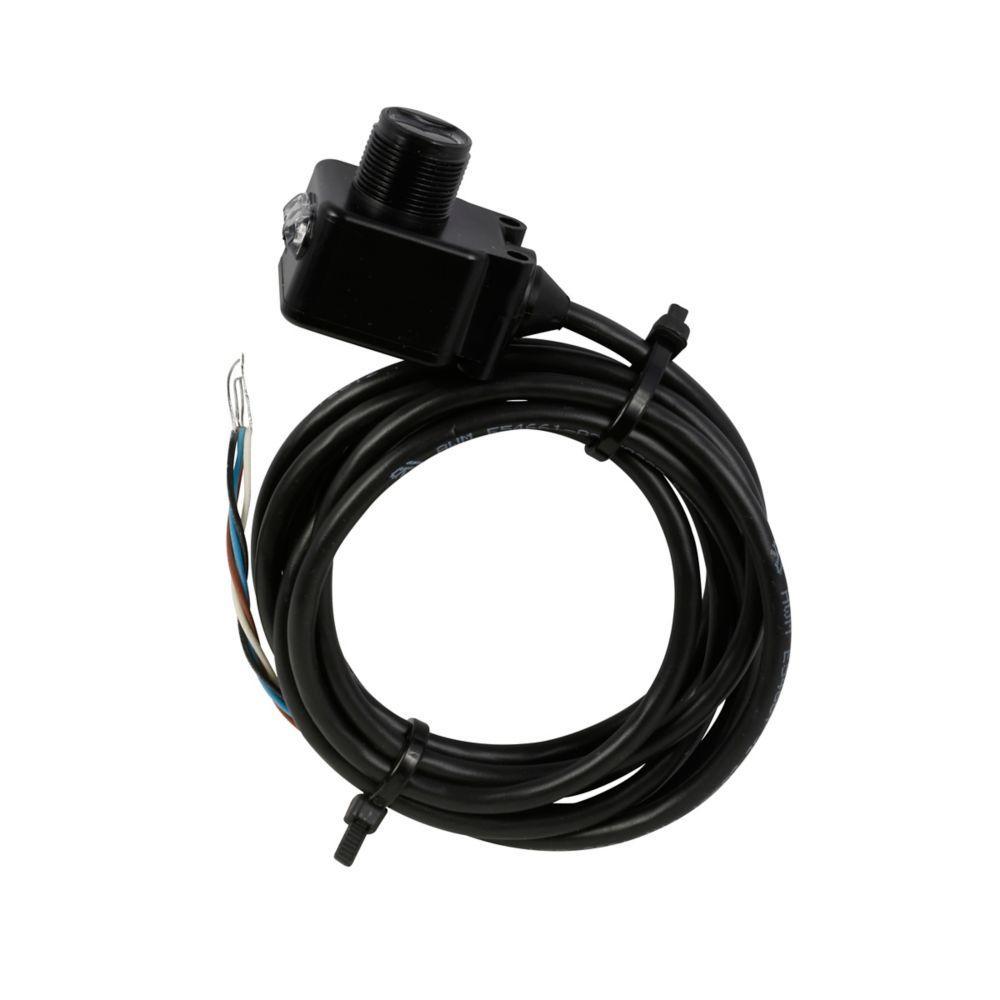

E65-SMTD15-HL CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CABLE, LIGHT OPERATE

Mouse over image to zoom, click to enlarge

  • E65-SMTD15-HL CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CABLE, LIGHT OPERATE
  • E65-SMTD15-HL CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CABLE, LIGHT OPERATE
  • E65-SMTD15-HL CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CABLE, LIGHT OPERATE

Description: EATON Perfect Prox® Photoelectric Sensor, Forward Viewing, Series: SM Series, Rectangle Shape, Thru-Beam Sensing Method, 50 ft Sensing, Visible Red Sensing Beam, 1 ms Response, 10 Output, 10 to 30 V DC, 100 mA, 2 W Wattage, 6.6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 1.29 in L x 2.17 in W x 1.47 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K 2 Enclosure, -13 to 131 deg F Operating

Manufacturer PN: E65-SMTD15-HL

UPC:  78211439003

Kendall Electric Inc PN: 2471836

Invoice Description:

E65-SMTD15-HL CH SENSOR, THRU BEAM, DETECTOR 15 M, DC, CABLE, LIGHT OPERATE


SPEC SHEET

▸ See All in Thru-Beam, Block/Slot Style Receiver


How Can We Make This Page Better?

EATON Perfect Prox® E65-SMTD15-HL Forward Viewing Photoelectric Sensor, Rectangle Shape, 50 ft, Visible Red Sensing Beam, 1 ms Response, NPN/PNP Open Collector Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The SM series provides high performance and ease of use in an economical, compact package. A sensor can have the greatest performance in the world, but if it is slightly misaligned or the target is positioned at the wrong range, you will have reliability problems sooner or later. TargetLock not only simplifies sensor setup but visually confirms your sensor is positioned to operate with the highest possible reliability. In addition, TargetLock provides diagnostic information during use to inform you of impending problems before they result in equipment downtime.
EATON Perfect Prox® Photoelectric Sensor, Forward Viewing, Series: SM Series, Rectangle Shape, Thru-Beam Sensing Method, 50 ft Sensing, Visible Red Sensing Beam, 1 ms Response, 10 Output, 10 to 30 V DC, 100 mA, 2 W Wattage, 6.6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 1.29 in L x 2.17 in W x 1.47 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K 2 Enclosure, -13 to 131 deg F Operating

Specifications

 Amperage Rating 100 mA
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type 6.6 ft Cable
 Enclosure NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K 2
 Manufacturer Part Number E65-SMTD15-HL
 Operating Temperature -13 to 131 deg F
 Output Type NPN/PNP Open Collector
 Response Time 1 ms
 Sensing Beam Visible Red
 Sensing Method Thru-Beam
 Sensing Range 50 ft
 Series SM Series
 Shape Rectangle
 Size 1.29 in L x 2.17 in W x 1.47 in H
 Standards/Approvals UL Listed,cUL Listed,CE Marked
 Type Forward Viewing
 Vibration 30 g Over 10 Hz to 2 kHz
 Voltage Rating 10 to 30 V DC
 Wattage 2 W

Features

▪ Highly visible LED indicators for power, output and alignment (TargetLock™)
▪ TargetLock™ simplifies setup and ensures that the sensor operates at the highest level of reliability possible
▪ Perfect Prox® models sense different colored targets at the same range and ignore objects in the background
▪ Visible beam on all models lets you see exactly where the sensor is pointing
▪ Compact size to fit in tight spaces
▪ Multiple mounting options including industry standard 18 mm threads
▪ Reverse polarity, overload and short-circuit protection on all models
